Baldwin Replacement Entrance Lever x Lever Mortise Lock Emergency Egress with Brass Latch
Use the arrows or swipe left to view all images for this product

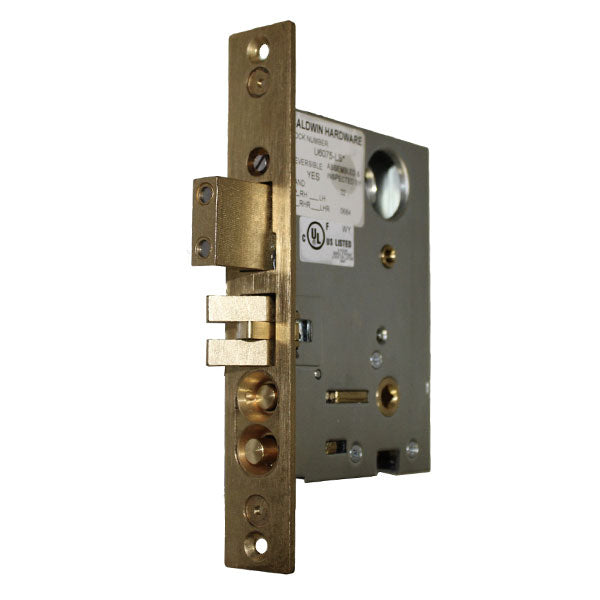

Baldwin Replacement Entrance Lever x Lever Mortise Lock Emergency Egress with Brass Latch
NOTE: This is a Baldwin replacement Lock and does not have the faceplate, you may reuse yours.
Specifications:

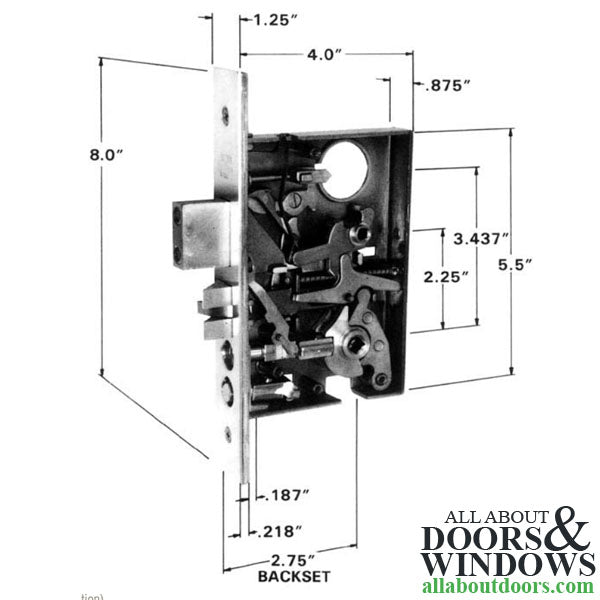

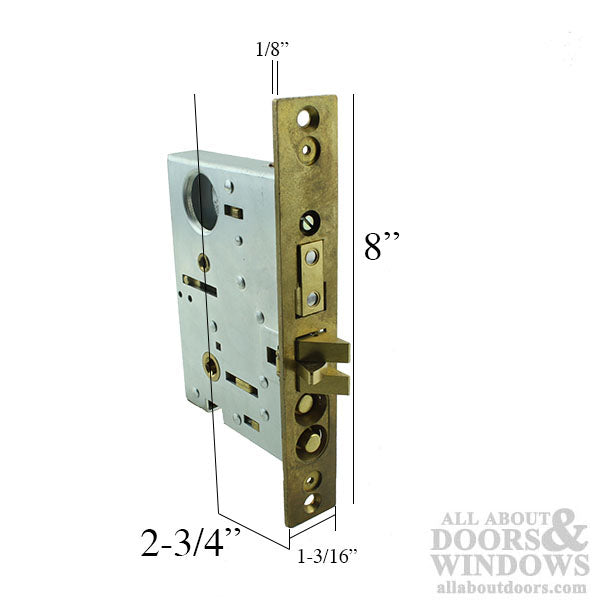

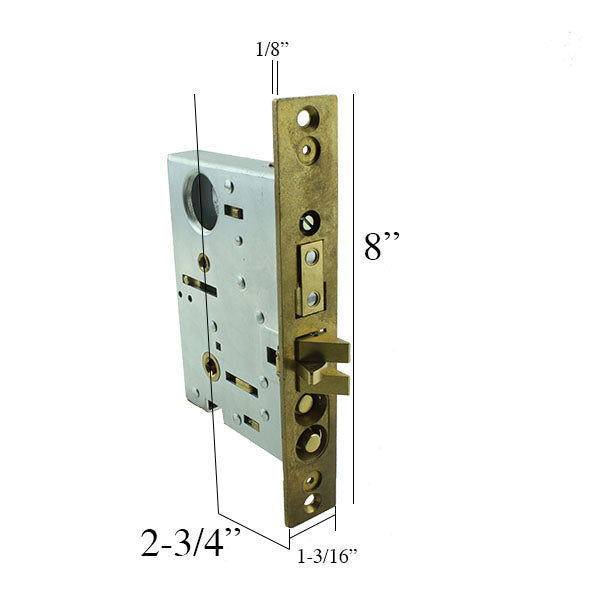

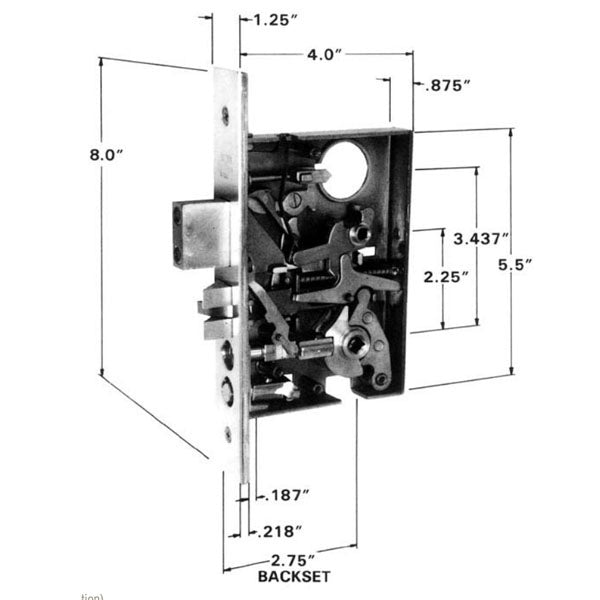

- Backset: 2-3/4 Inch (70mm)
- Handed: Yes, Doors are viewed from outside hinge location.
- Do not use lever strength mortise locks with knobs. They only turn one way and have a stiff turning action suitable for levers.
- Deadbolt Throw: 1 inch with saw-proof inserts
- Faceplate: NO
- Strike Plate: NO
- Latch Color: Brass ( =Nickel Optional)
- Spindle Hub Diameter: 1/4 Inch (7mm)
- Weight: 3 lbs. (1.36 kg)
- Federal Specification Equivalent: U/L Listed, ANSI Series: 1000-F12/F20
Additional Information:
* Backset is measured from the front of the faceplate to the center of key cylinder.
* This mortise lock is not recommended for double cylinder applications.
* Inside lever retracts latch and dead bolt simultaneously but does not free outside lever
* When dead bolt is thrown, stop is automatically activated making outside lever rigid.
* When dead bolt is extended, dead bolt deadlocks latch bolt.
* Below the Latch and Deadbolt are two round buttons. These activate the exterior handle to be locked or unlocked when closing the door.
*. Includes Mortise Lock, no screws or other components
