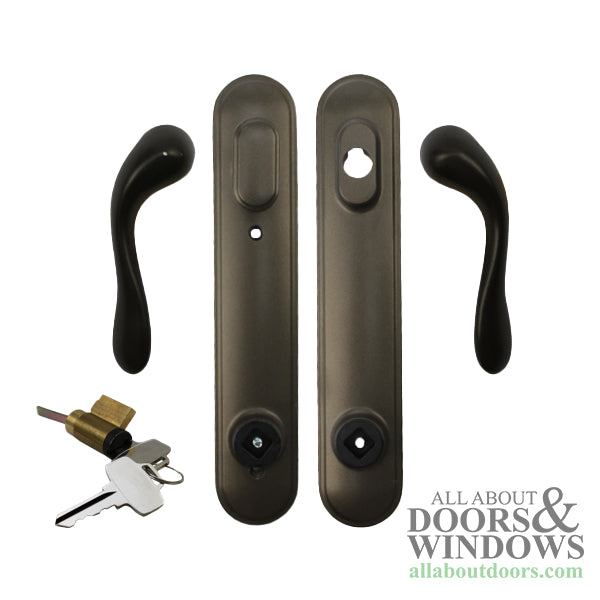

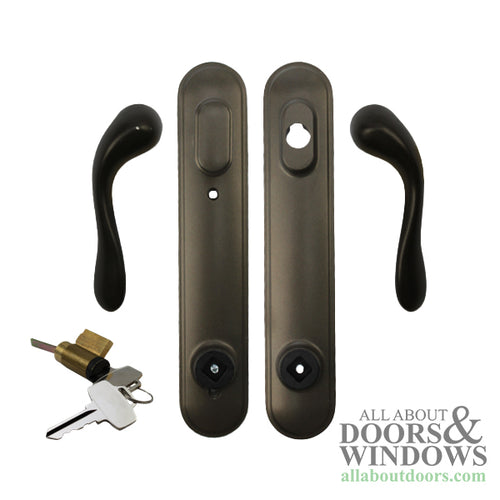

Blemished - HORIZON Active Keyed 1-3/4 door, Victorian Bronze, Schlage - Victorian Bronze

This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.

Blemished items are priced accordingly and are sold as is.

No returns, refunds or exchanges.

Trilennium Active Keyed Lock, 3000 Series 1-3/4 door

This handleset trim is used on the Peachtree Citadel IPD doors, Pella Entry doors with Triple Latch Locks, W&F and Trilennium multipoint locks

Application: Active Door with IPD Multipoint Lock (If your door does not have a bolt at both the bottom and the top as well as the standard middle location, this handleset will not work)

Style: Traditional

Handle to Cylinder PZ Distance: 6 inch

Escutcheon Plate Width: 1-29/32 inches

Escutcheon Plate Height: 10 inches

Lock Cross bore: Fits 1-11/16  inches ( some doors had 2-1/8" bore, this is not wide enough)

Handle Projection: 2  inch

For Door Thickness: 1-3/4 inch (45mm)

Note: To use with 2-1/4 inch (57mm) thick doors, order conversion kit 40039-WR (40039-SC1 if wanting a Schlage keyway)

Schlage C

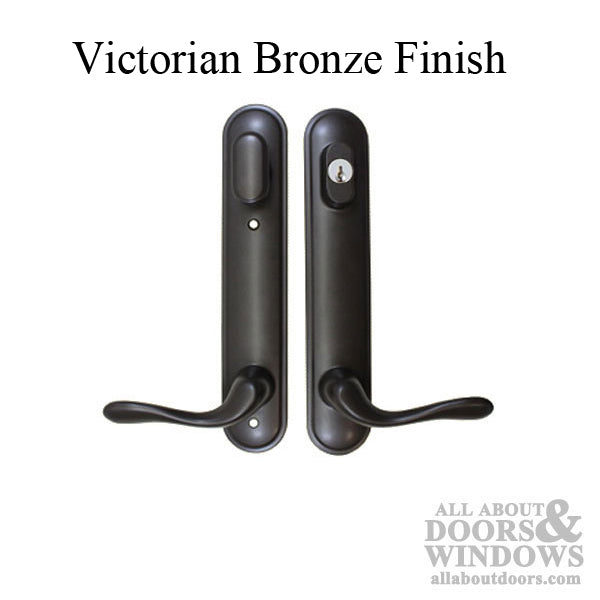

Victorian Bronze

This includes the keyed trim only. No mortise lock or strike plates are included.

Strikes sold here: 37400109 - Set of 3 Strike Plates - Choose Color

Please note: These handlesets are designed to work best with the newer-style multipoint locks. For older-style IPD multipoint locks made from the 1980's - 2002, this handleset may not work due to a change in the design of the bushing. The bushing 'stops' are at different locations on the new style bushing on the handleset than they were on the old-style. If you're looking to replace a handleset in use with an older IPD lock, we recommend replacing the lock and handles both.
