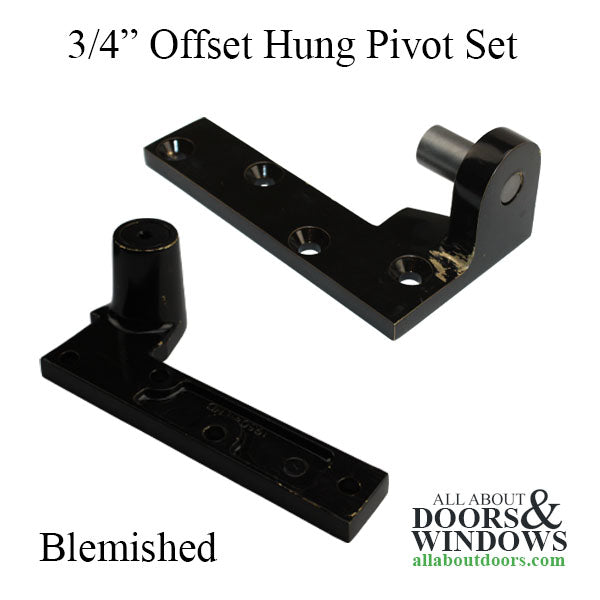

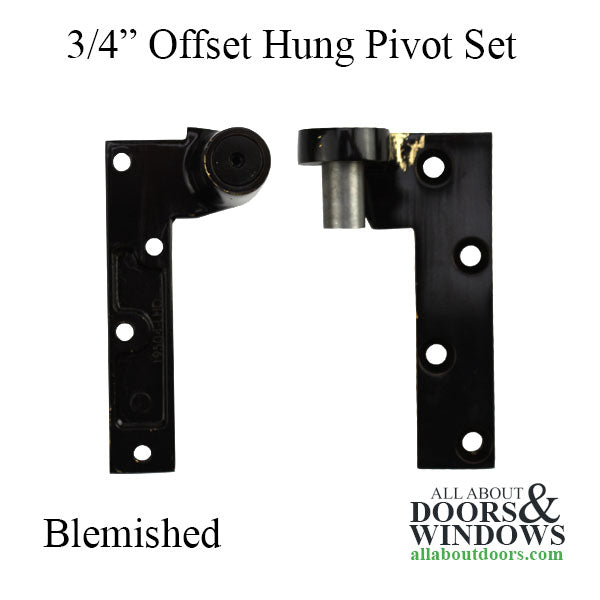

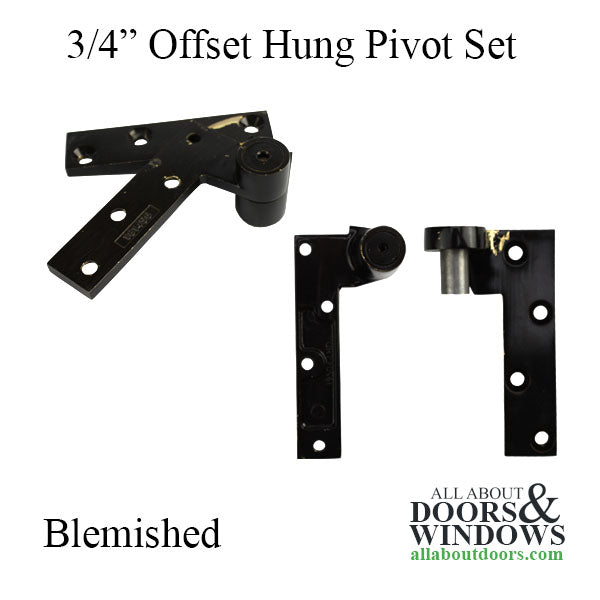

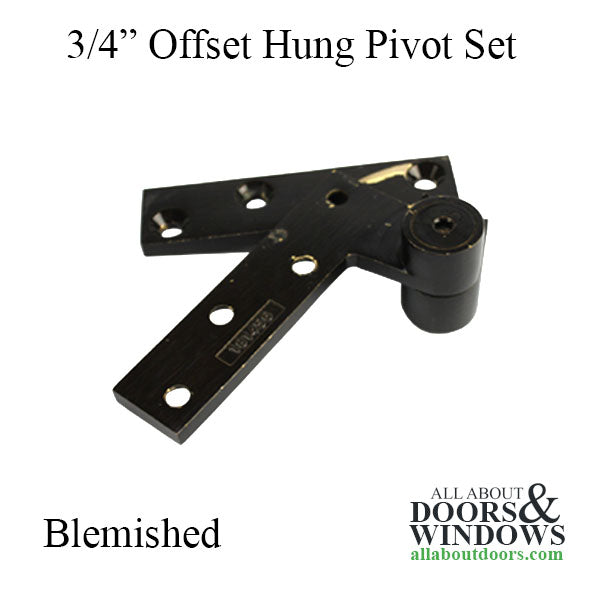

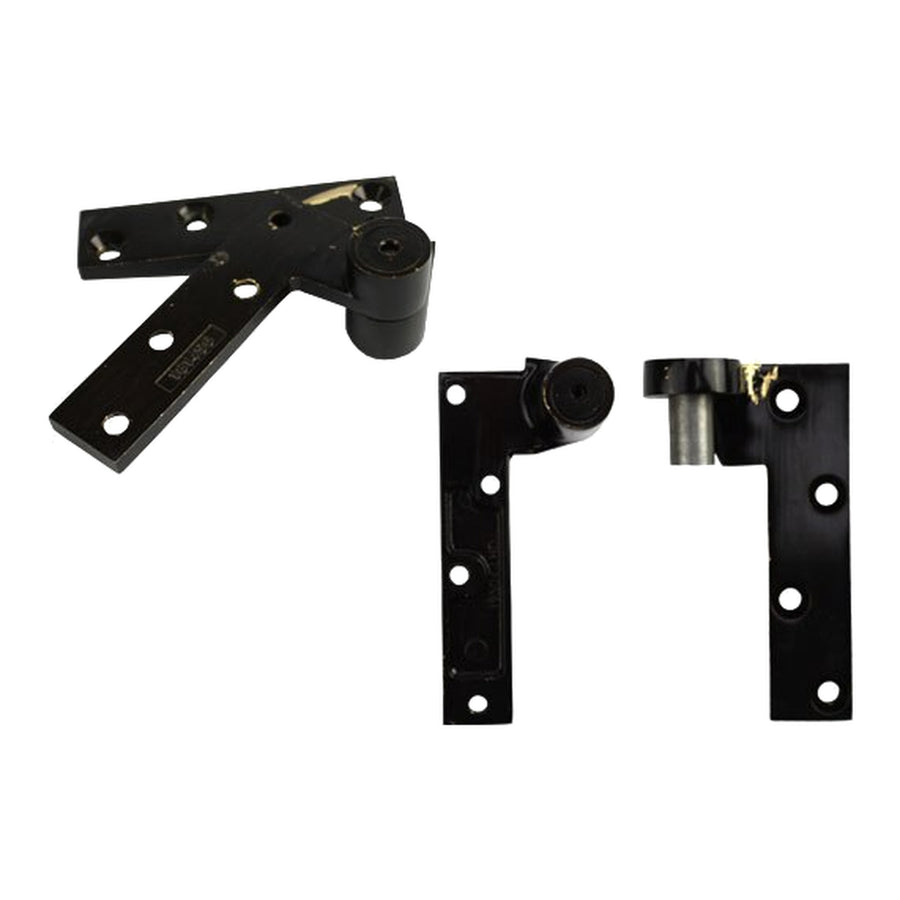

NOTE: This item has scratches and previous installation marks. It is priced accordingly.
NOTE: Sold as is. No returns, refunds, or exchanges.
Application:
*Exterior or Interior Doors
*Weight to 450 lbs (see door size/weight guidelines)
*Door width up to 4'-0" (1219mm) (see door size/weight guidelines)
*Handed
*Jamb Attached Pivot Set
• Standard top pivot 180 included
• 119 or M19 intermediate pivots are recommended (order separately)
• Bottom pivot mortised into side jamb
• Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims • Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot • Non-ferrous base material • Available for fire door assemblies up to three hours. Specify F195. Intermediate pivot required by UL. Specify FM19 (order separately) • 3/4" (19mm) offset (measured from centerline of pivot to face of door) • Door edges must be beveled 1/8" in 2" • Weight of door is borne by floor portion • Furnished with wood and machine screws • Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard • Doors will swing 180°, trim permitting
NOTE: Sold as is. No returns, refunds, or exchanges.
Application:
*Exterior or Interior Doors
*Weight to 450 lbs (see door size/weight guidelines)
*Door width up to 4'-0" (1219mm) (see door size/weight guidelines)
*Handed
*Jamb Attached Pivot Set
• Standard top pivot 180 included
• 119 or M19 intermediate pivots are recommended (order separately)
• Bottom pivot mortised into side jamb
• Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims • Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot • Non-ferrous base material • Available for fire door assemblies up to three hours. Specify F195. Intermediate pivot required by UL. Specify FM19 (order separately) • 3/4" (19mm) offset (measured from centerline of pivot to face of door) • Door edges must be beveled 1/8" in 2" • Weight of door is borne by floor portion • Furnished with wood and machine screws • Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard • Doors will swing 180°, trim permitting
