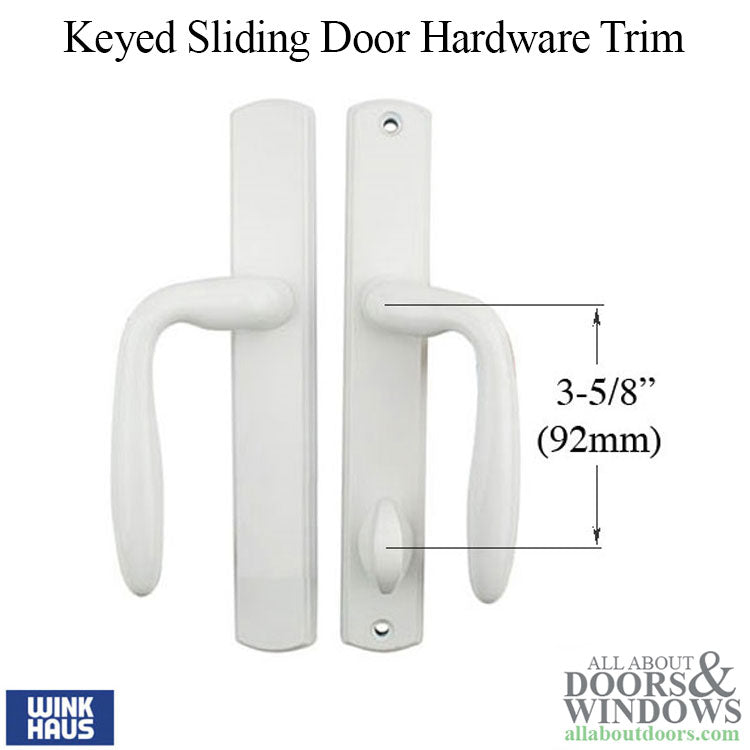

Botticelli Keyed Entry for Winkhaus Sliding Door Hardware Trim

Winkhaus Botticelli sliding patio door handle trim with Keyed function.

Keyed: Yes, Full cylinder with 2 keys
Function: Entry, Thumb turn inside,  key outside

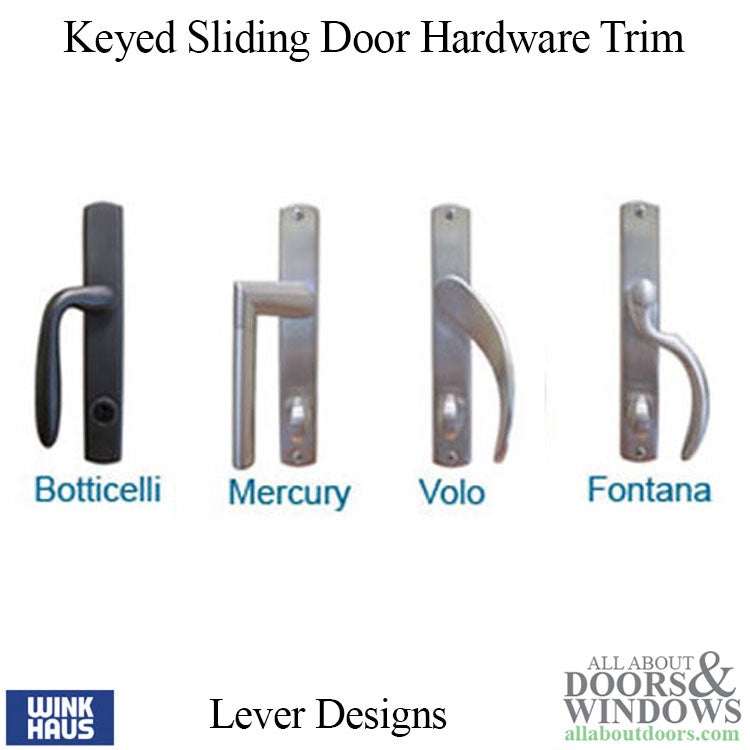

Style: Botticelli

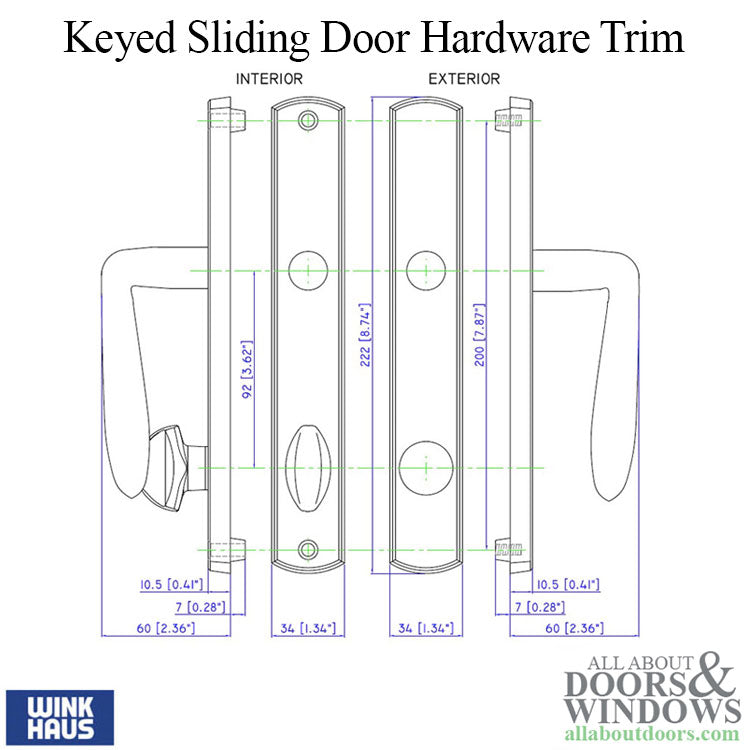

Mounting screw holes: 7-7/8 inch
Handing: Yes, can be rehanded by removing the clip and chaning levers. NOTE: The use of external ring plies to remove clip makes it easy.

Door Thickness Options:
1-3/4 inch (45mm)
2-1/4" (57mm)

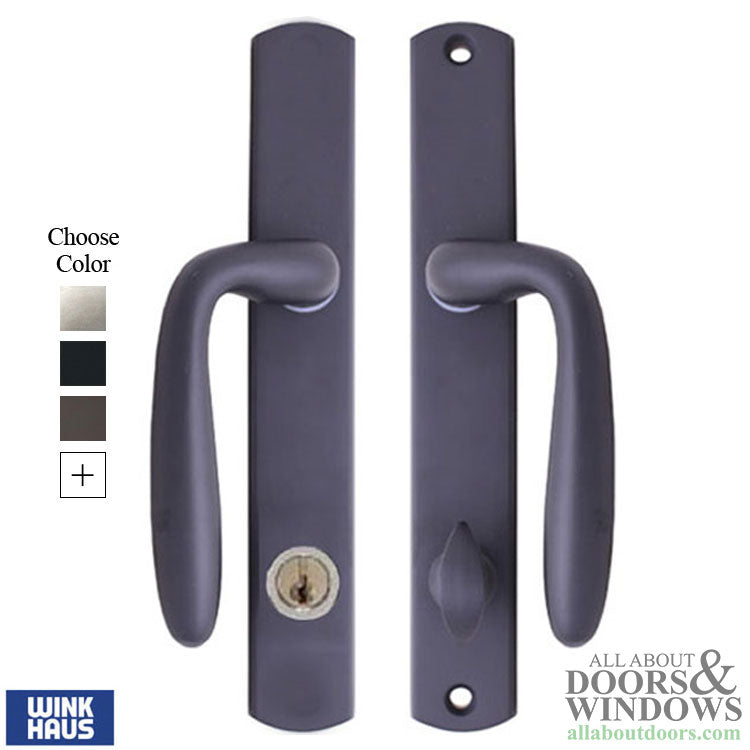

Colors / Finish Options: Oil Rubbed Brass, PVD Bronze, Flat Black
Antique Brass, PVD Bright Brass, PVD Satin Nickel

Note: The Winkhaus Slider Door Lock will only function with the Winkhaus 90° cylinder.

3 Functions:
1. Keyed Entry
2. Non-Keyed Patio, Thumb turn inside, no key outside
3. Inactive / Dummy Pull

Related Winkhaus Hardware:

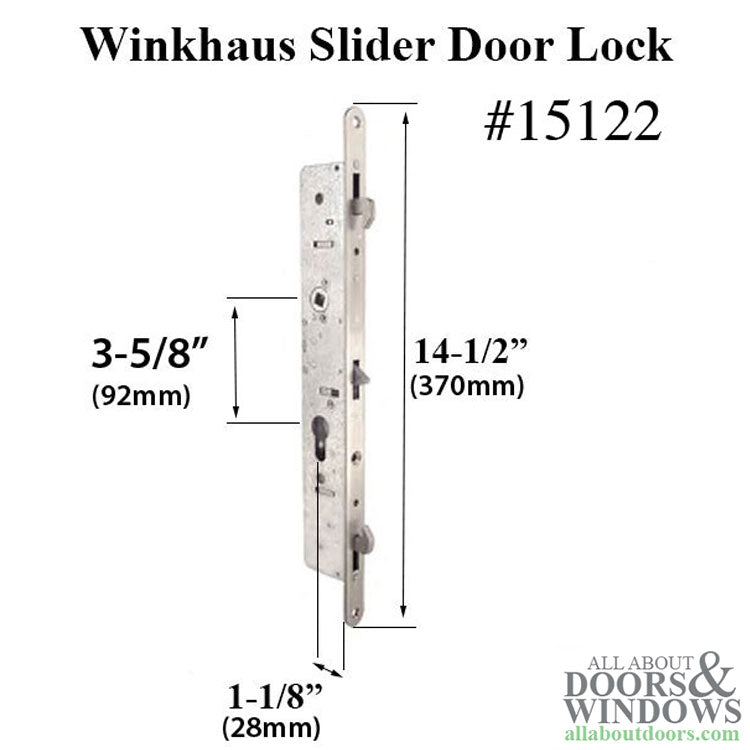

15122 - Mortise Lock, 2 hook  28 mm Backset

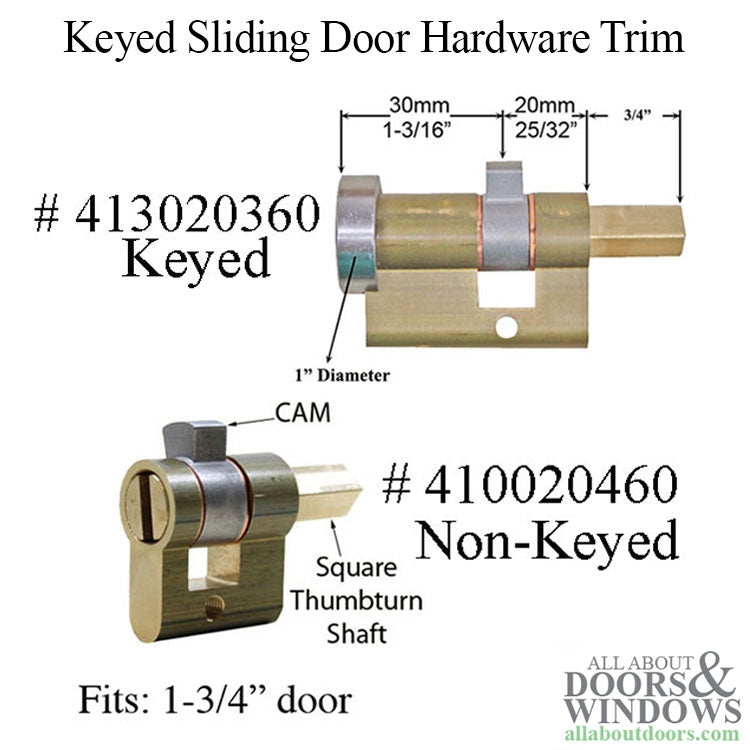

413020360 - Keyed Cylinder, 1-3/4"  thick door
413530360 - Keyed Cylinder, 2-1/4"  thick door
