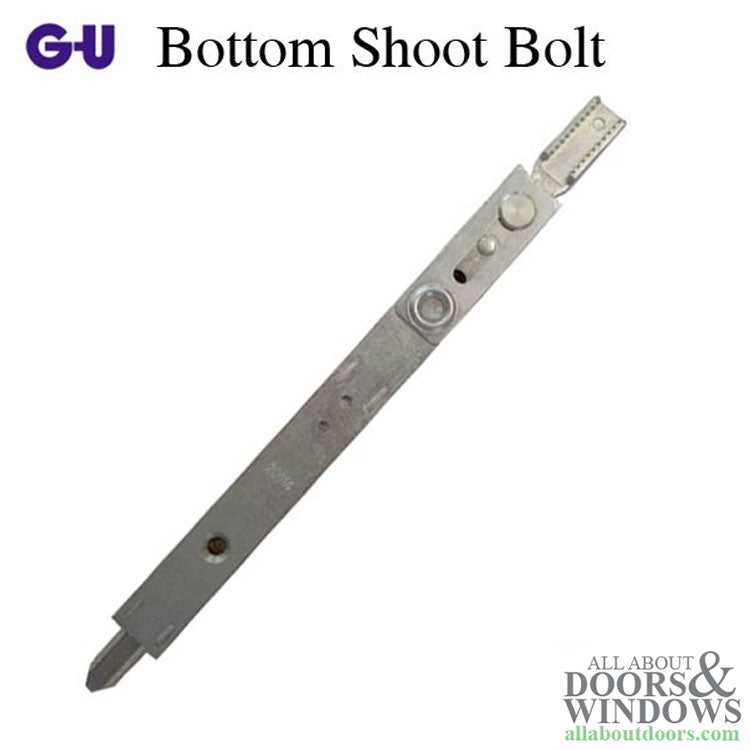

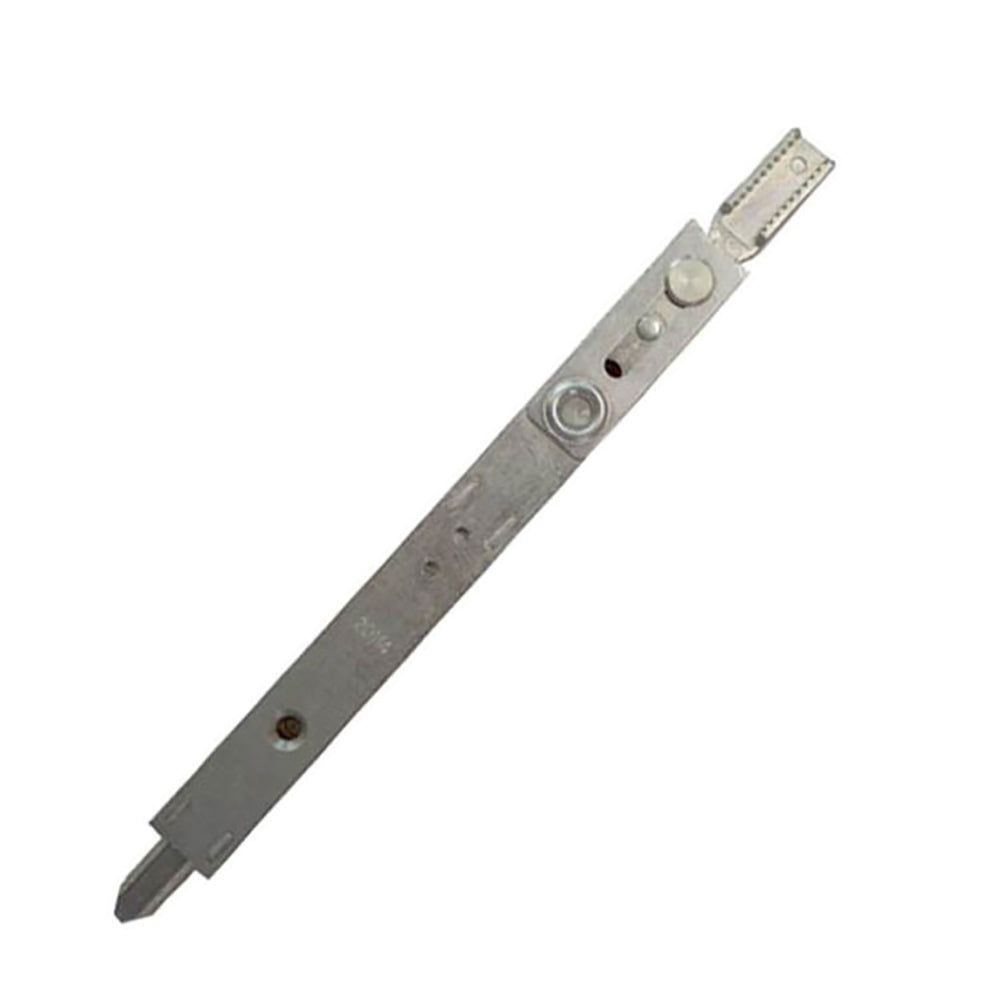

G-U Bottom Shoot bolt
Used with Europa R2: 6-33632 Series- active- key below handle, rollers with shootbolts
Used with Rhino: 6-33400 Series - active- key below handle, hooks with shootbolts
Used with Europa Inactive: 6-33638 Series- key below handle

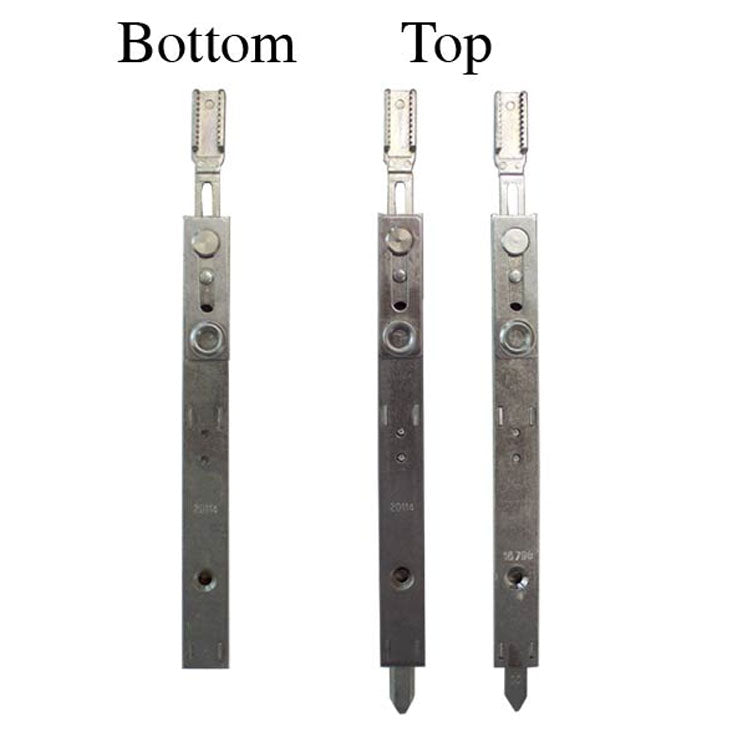

The Bottom Shoot bolt retracts when pulling on the end, where the Reversing Gear extends the bolt.

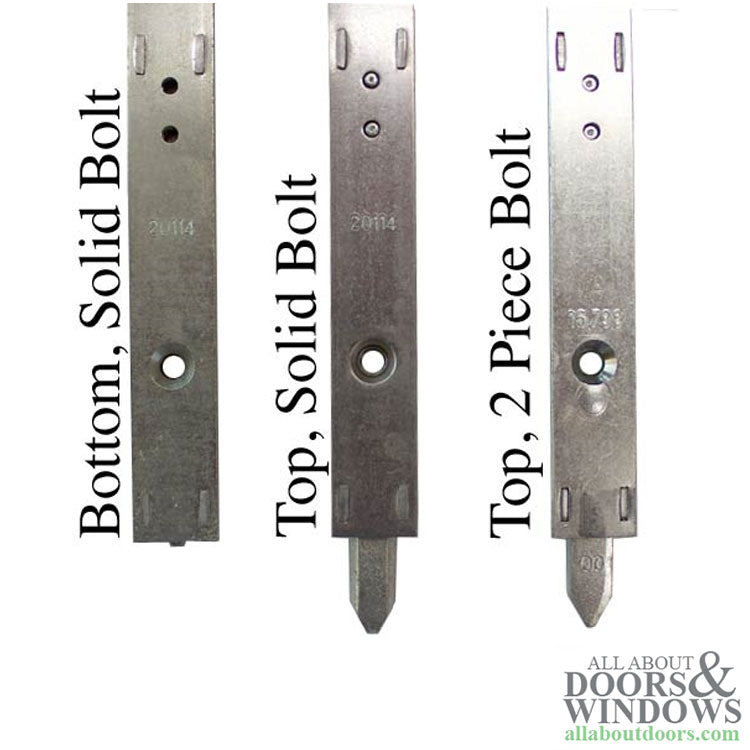

Bottom shoot bolt is solid 1 piece construction where the Reversing gear has solid and laminated 2 piece bolts

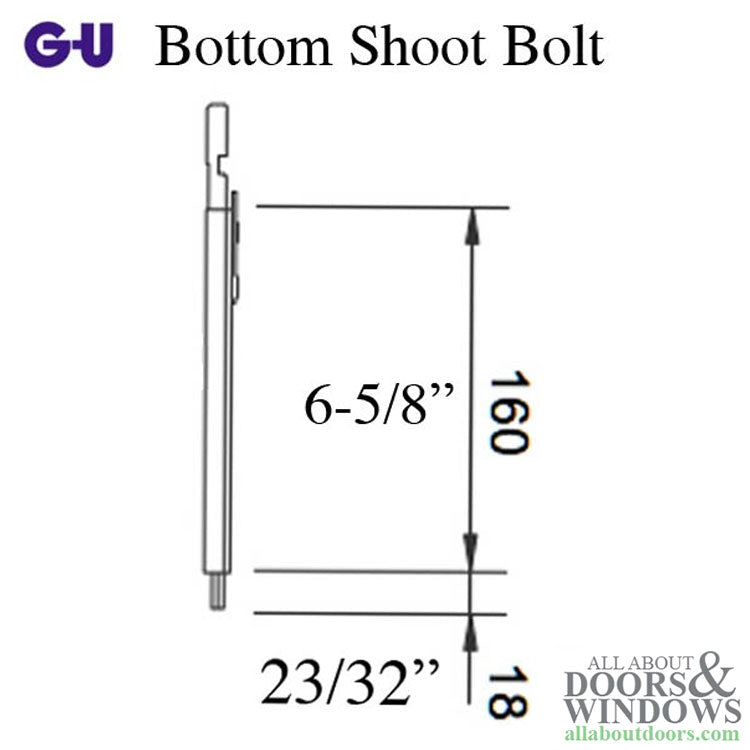

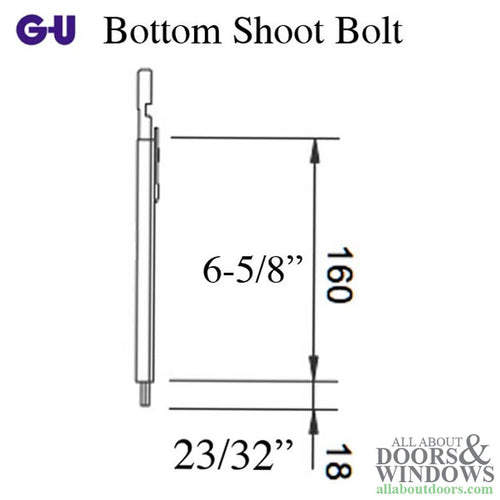

Bottom Shootbolt Specifications:
Housing Faceplate Width: 5/8 inch (16mm)
Housing Thickness: 7/16 inch (11mm)
Housing Length: 6.30 inches (160 mm)
Bolt extends .71 inches (18 mm)
Bolt Type: 1 piece
Finish: Silver FerGuard
Markings: 20114 on faceplate

Sold Each

G-U Related Shoot Bolt Parts:
G-20415-00-0-01 - Bottom Shoot bolt, Silver Ferguard
G-20415-00-0-08 - Bottom Shoot bolt, Stainless Steel
G-20416-00-0-01 - Top Shoot bolt, Silver Ferguard, Reversing gear, Solid bolt
G-20416-00-0-08 - Top Shoot bolt, Stainless Steel, Reversing gear, Solid bolt
9-34442-00-0-0 - Brass Shoot bolt Sleeve, 1/2 inch (12mm) inside diameter
