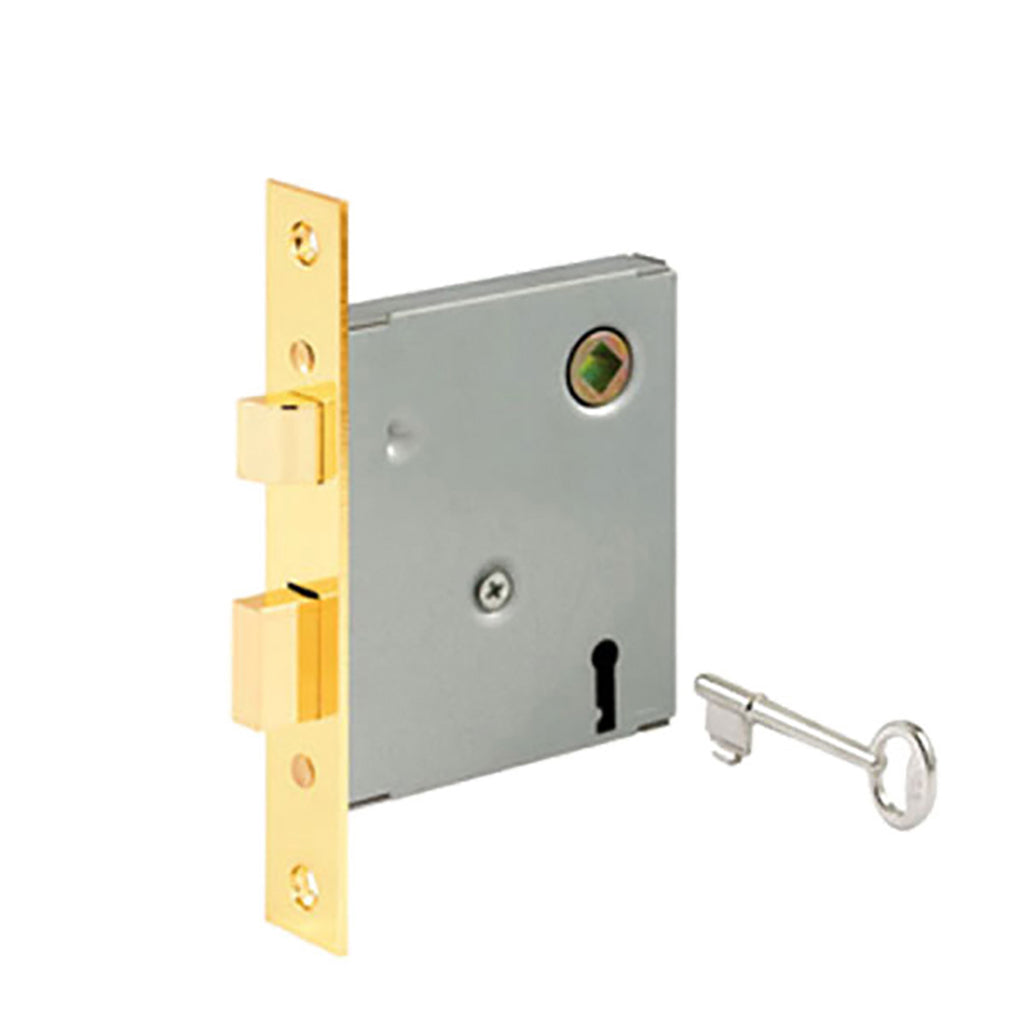

Caselock-Mortise Assembly w/Keys
Part Number: $32.29Interior Door Mortise case lock with brass plated faceplate
Replaces Mortise bit (Skeleton Key) type lock.
The spindle hole will accommodate a 1/4 inch square shaft.
Usually set up for Left-hand doors

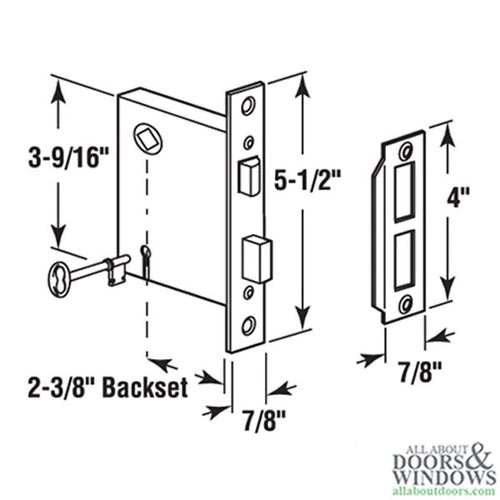

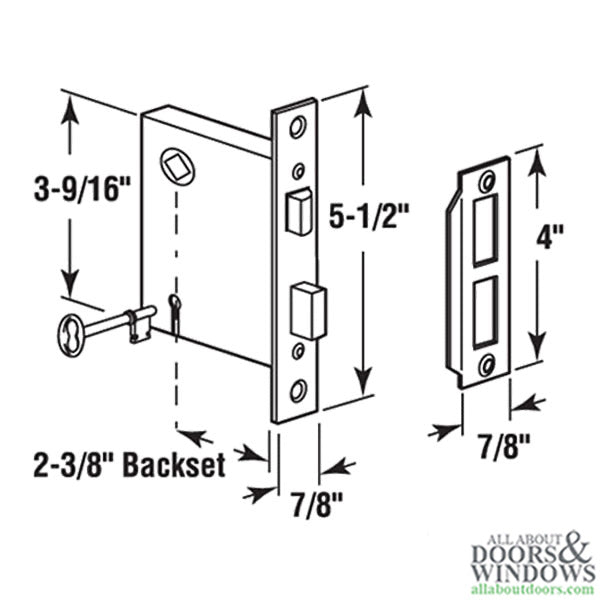

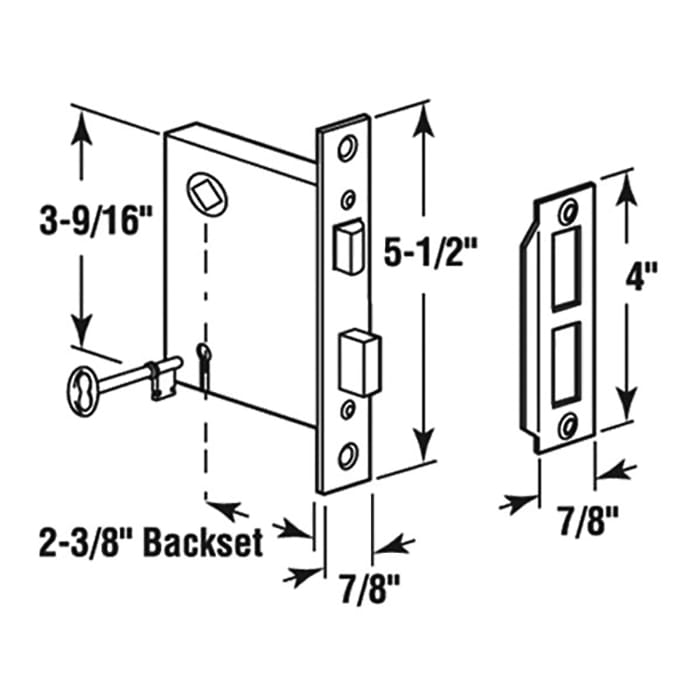

Has 2-3/8 inch backset.
Faceplate: 7/8 x 5-1/2 inch
Faceplate Screw Hole Center: 4-3/4 inch
Keyway: Generic Skeleton Key
Lock body thickness: 1/2 inch
Lock Body Height: 3-9/16 inch
Priced Each, Sold Each.
Replaces Mortise bit (Skeleton Key) type lock.
The spindle hole will accommodate a 1/4 inch square shaft.
Usually set up for Left-hand doors
Has 2-3/8 inch backset.
Faceplate: 7/8 x 5-1/2 inch
Faceplate Screw Hole Center: 4-3/4 inch
Keyway: Generic Skeleton Key
Lock body thickness: 1/2 inch
Lock Body Height: 3-9/16 inch
Priced Each, Sold Each.
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2294
