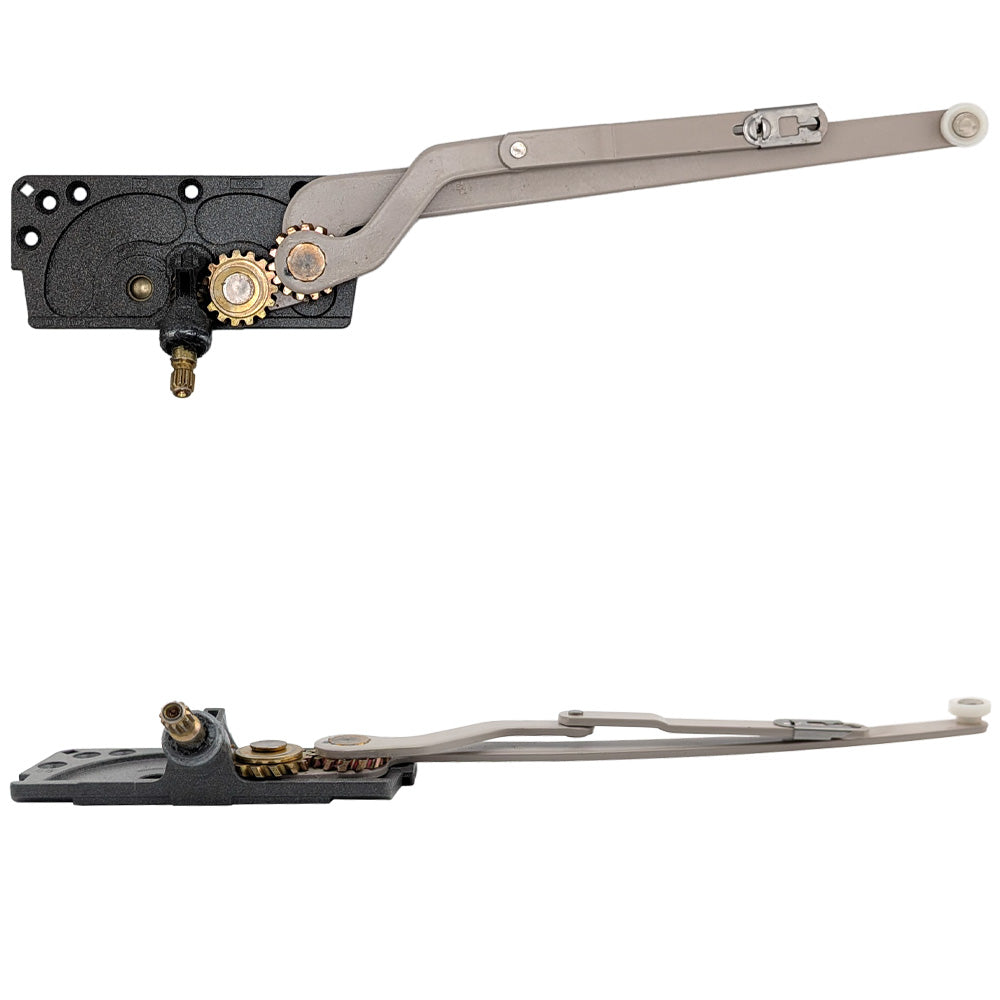

Truth EntryGard Casement Crank Operator, Gold Spline, Dual Arm, Sill Mounted
Number on 4-7/16 Link: Link # 20810 or 20544.

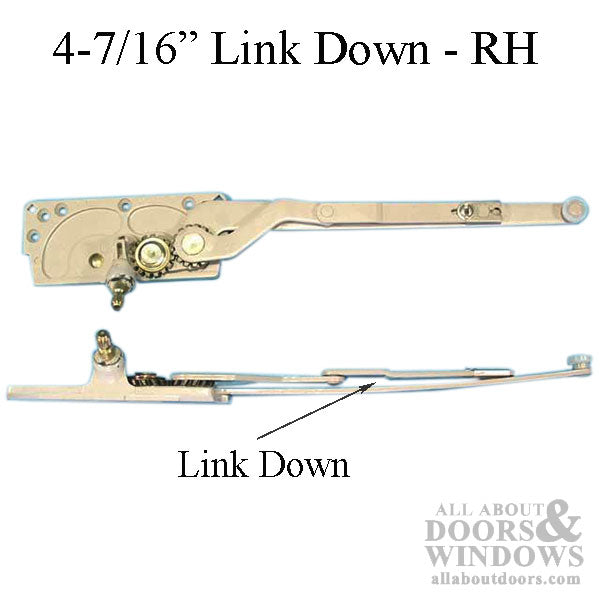

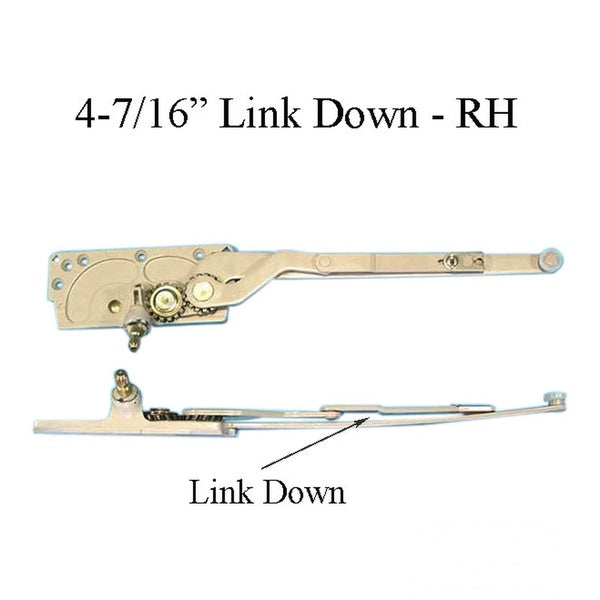

The Link is offset down

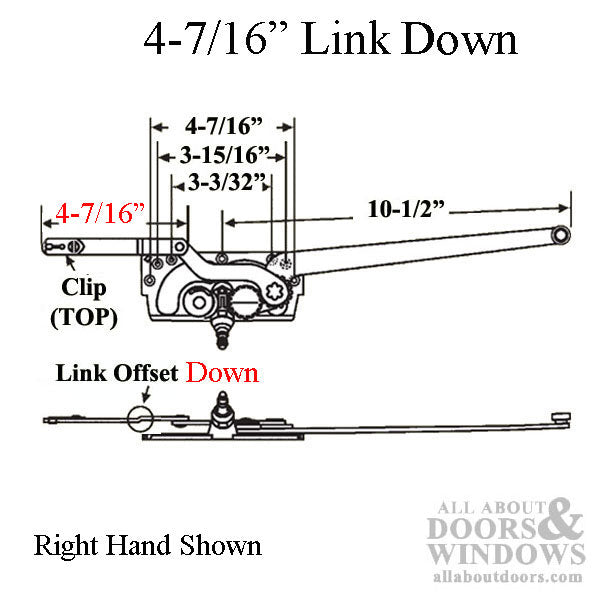

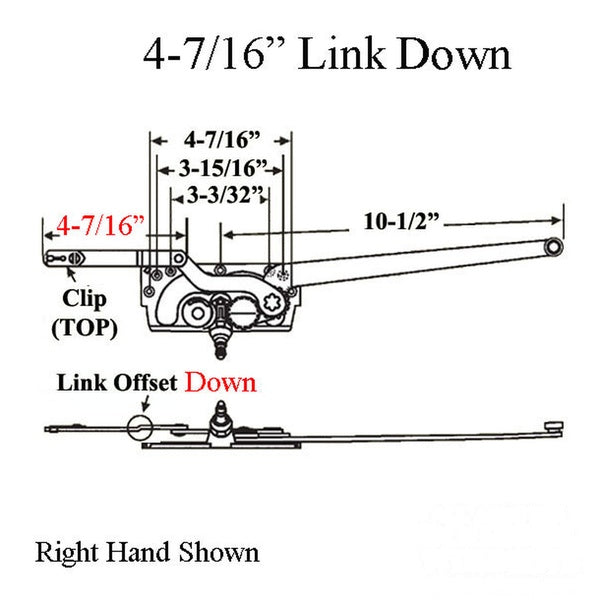

Straight Arm Length: 10-1/2 inches (center of operator to edge of button)
Link Length: 4-7/16 inches, offset link - DOWN

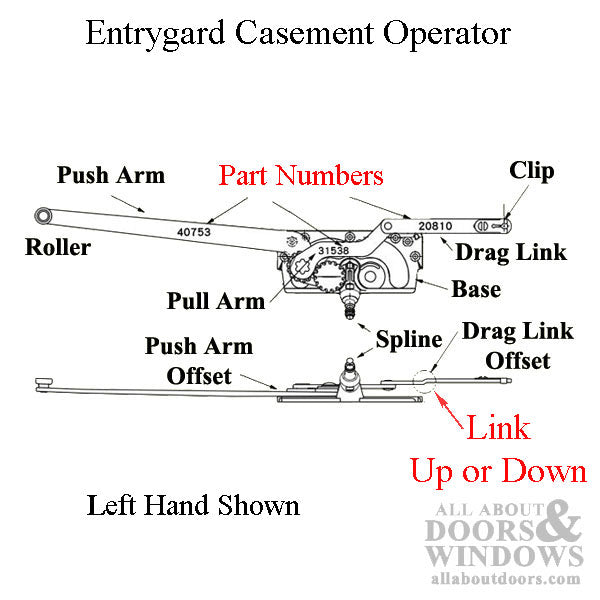

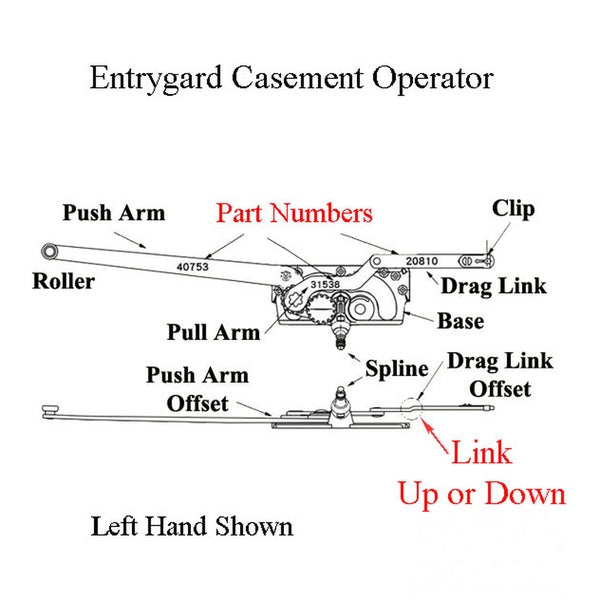

Arm Type: Dual arm - Straight arm, no offset, split arm with offset link.
Roller Material: Nylon
Roller Size: 9/16 inch diameter; 3/16 inch thick

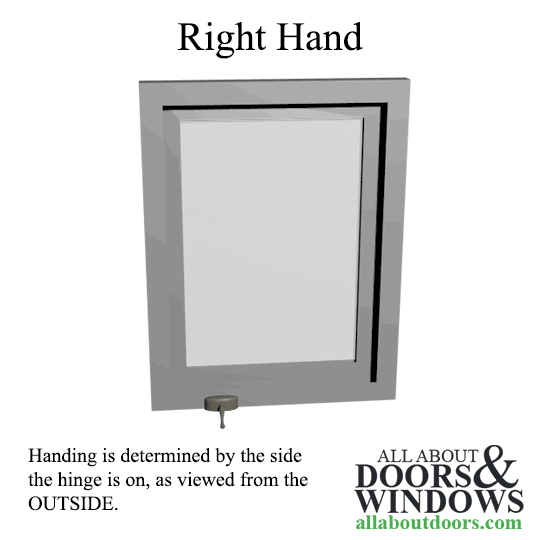

Handing: Right Handed, as shown in picture (Handing is determined by the side the hinge is on, as viewed from outside).
Related EntryGard Operators:
55053 - Link Offset UP, Left Hand
55054 - Link Offset UP, Right Hand
55057 - Link Offset DOWN, Left Hand
55058 - Link Offset DOWN, Right Hand
<p style="margin: 0px; line-height: normal; font-family: Arial;">Truth EntryGard Casement Crank Operator, Gold Spline, Dual Arm, Sill Mounted</p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">Number on <span style="line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">4-7/16</span> Link: Link # 20810 or 20544. </p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">The Link is offset down</p>
<p style="margin: 0px; line-height: normal; font-family: Arial; min-height: 15px;"><br></p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Straight Arm Length: 10-1/2 inches (center of operator to edge of button)</p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Link Length: 4-7/16 inches, offset link - DOWN </p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Arm Type: Dual arm - Straight arm, no offset, split arm with offset link.</p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Roller Material: Nylon </p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Roller Size: 9/16 inch diameter; 3/16 inch thick</p>
<p style="margin: 0px; line-height: normal; font-family: Geneva; color: rgb(21, 21, 21);">Handing: Right Handed, as shown in picture (Handing is determined by the side the hinge is on, as viewed from outside).</p>
<p style="margin: 0px; line-height: normal; font-family: Arial; min-height: 15px;"><br></p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">Related EntryGard Operators:</p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">55053 - Link Offset UP, Left Hand</p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">55054 - Link Offset UP, Right Hand</p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">55057 - Link Offset DOWN, Left Hand</p>
<p style="margin: 0px; line-height: normal; font-family: Arial;">55058 - Link Offset DOWN, Right Hand</p>
