Grade 2, Classroom Lever Lock, 2-3/4bs, Commercial - (26D) Satin Chrome
Part Number: Price: $69.78Similar to Schlage AL170PD Standard grade 2 commercial lever lock at 1/2 the Price
Classroom locks have key outside, no locking function inside.
Key activated locking / unlocking
Standard duty, Commercial Grade 2
Color / Finish: Satin Brushed Chrome US26D (626)
Conforms to Handicap Code ANSI A156.2 Series 4000
Fits doors from 1-3/8 to 1-3/4 thick

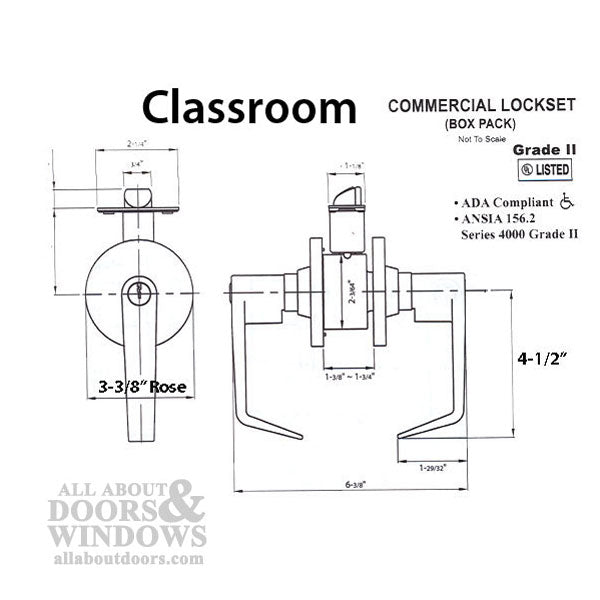

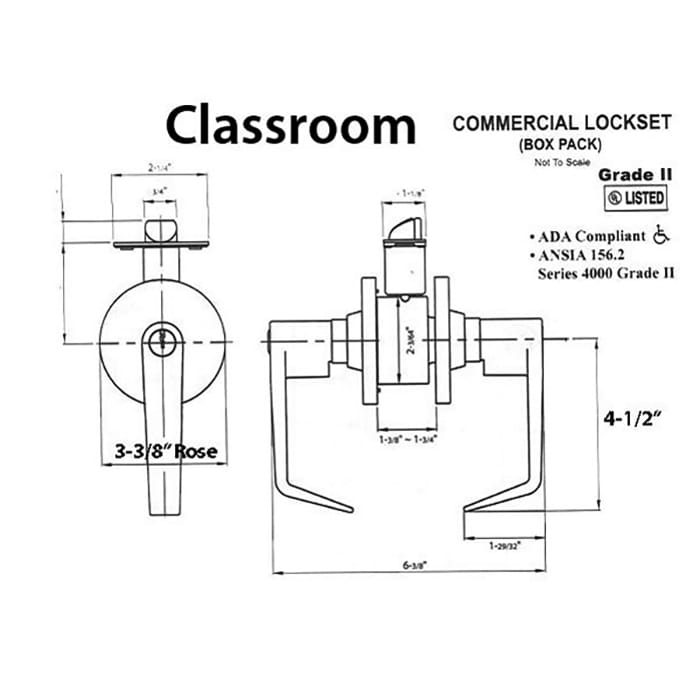

Rose: 3-3/8 inch Flat
Latch: 2-3/4 inch Deadlatch, 1-1/8 x 2-1/4 face
Furnished with ASA Satin Chrome strike plate
Non-handed
Fits the standard Commercial door preparation 2-3/4 backset, 2-1/8 bore
Easy installation
Suitable for new construction & retrofit
Concealed screw mount, One step rosette

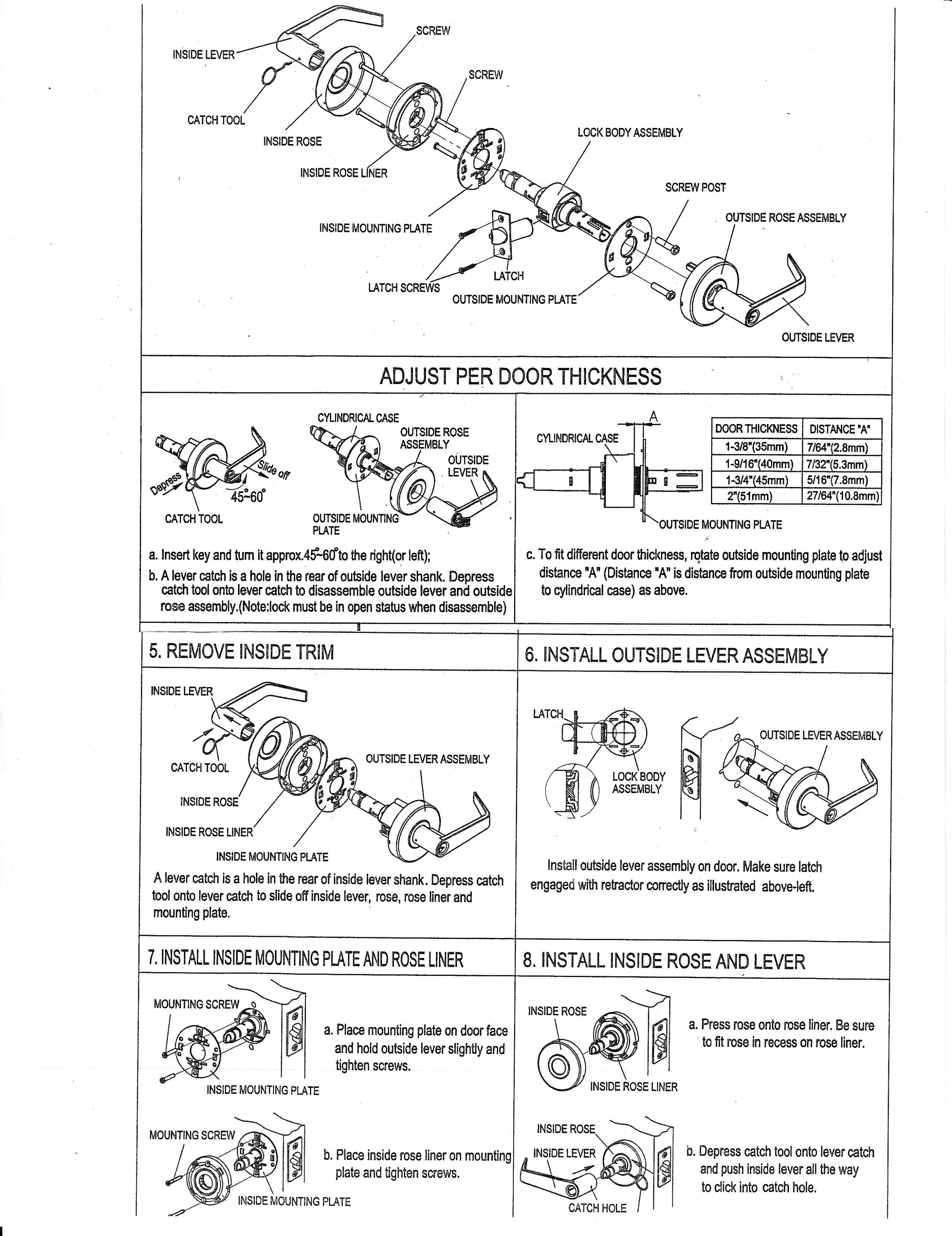

Instructions & Templates for new construction

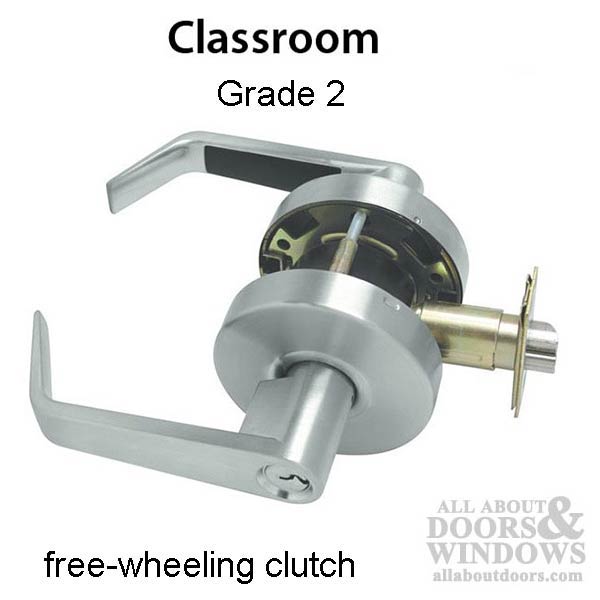

Free-Wheeling clutch, allows lever to move when locked
Classroom locks have key outside, no locking function inside.
Key activated locking / unlocking
Standard duty, Commercial Grade 2
Color / Finish: Satin Brushed Chrome US26D (626)
Conforms to Handicap Code ANSI A156.2 Series 4000
Fits doors from 1-3/8 to 1-3/4 thick
Rose: 3-3/8 inch Flat
Latch: 2-3/4 inch Deadlatch, 1-1/8 x 2-1/4 face
Furnished with ASA Satin Chrome strike plate
Non-handed
Fits the standard Commercial door preparation 2-3/4 backset, 2-1/8 bore
Easy installation
Suitable for new construction & retrofit
Concealed screw mount, One step rosette
Instructions & Templates for new construction
