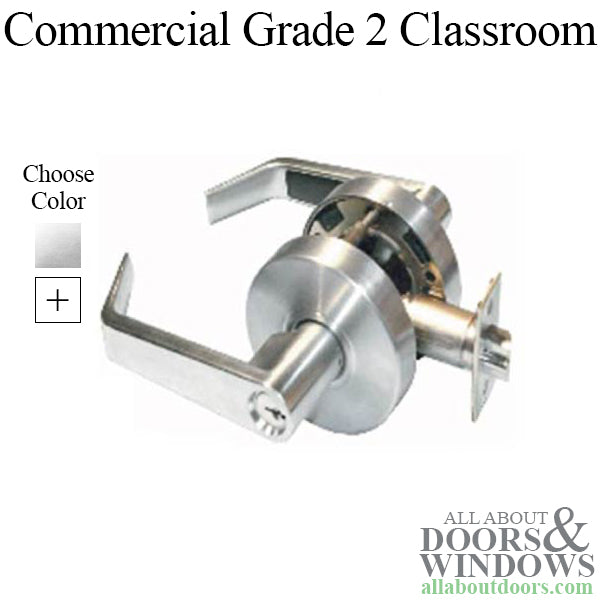

Classroom Entry Lever, Office and areas you need locked or Lockable - Grade 2, Standard Commercial Duty
Certification: UL listed ANSI A156.2 Grade 2
• Door Thickness: 1-3/4" - 2" (45mm-50mm)
• Backset: 2-3/4" (70mm)
• Cylinder: Schlage “C” keyway
• Keying: Schlage 6 pin keyed
• Key: 2 six pin Nickel Plated
• Functions: Classroom
A classroom lock can be locked or unlocked using a key in the outside lever. For both functions, the inside lever always remains unlocked, allows free egress.
• Latch: 1-2" projection Stainless Steel Face:1-1/8” x 2-1/4” (Optional 3 hour UL Rated)

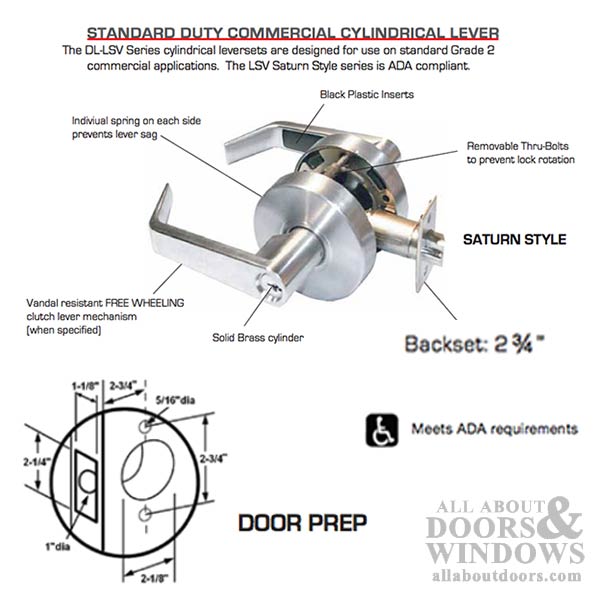

• Bore: 2-1/8” hole retrofits all cylindrical locksets
• Fits 161 Prep doors
• Strike: ANSI 1-1/4” x 4-7/8” strike
• Removable Thru-Bolts
• Non-handed / reversible
• Warranty: Lifetime mechanical. 10 year finish.
• Finishes: US3 Polished Brass, US10B Oil Rubbed Bronze, US26D Brushed Chrome
