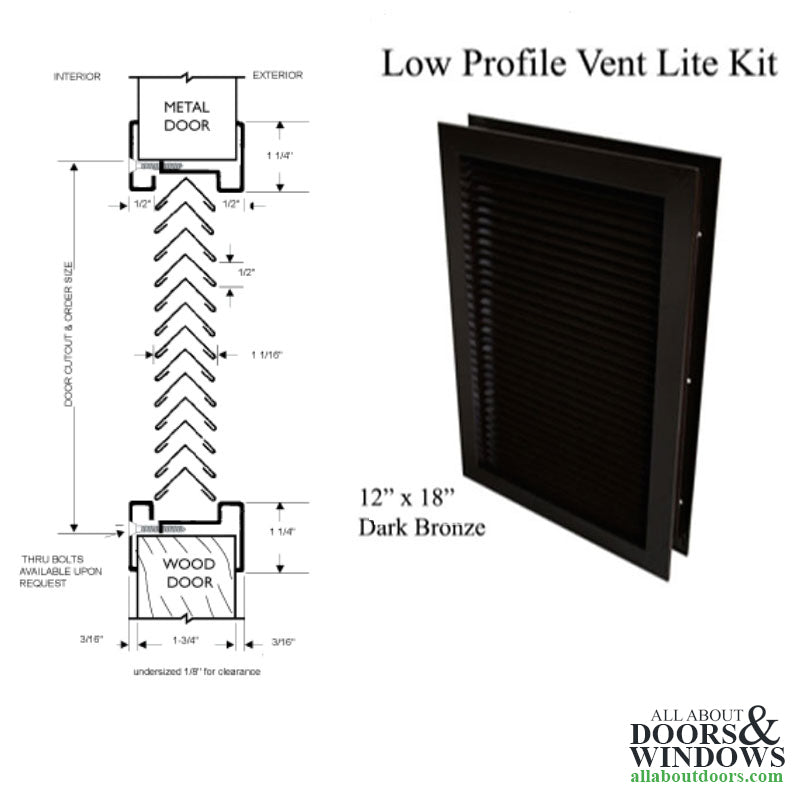

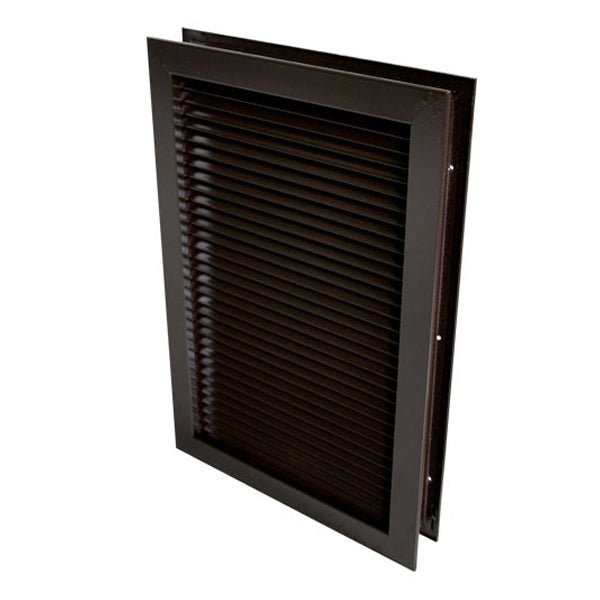

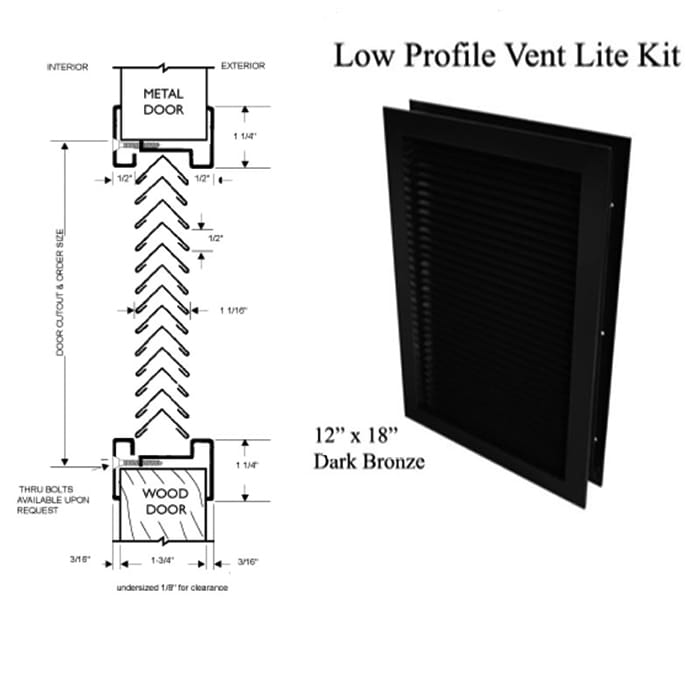

Low profile steel commercial door lite frames.

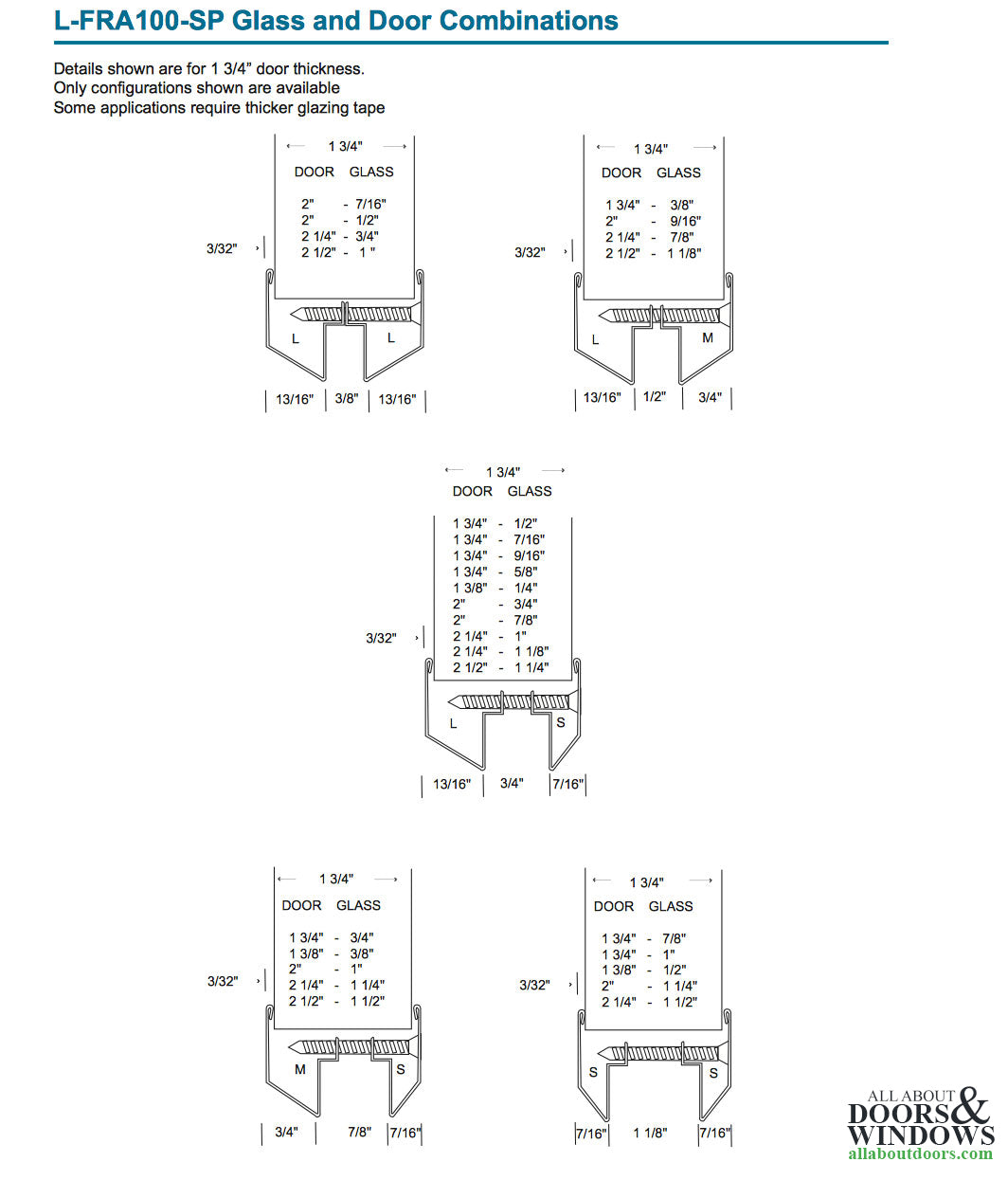

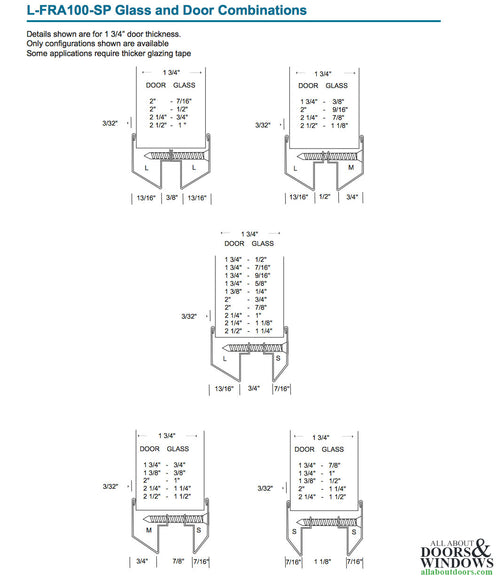

Used on 1-3/4 inch thick hollow metal or wood doors.

Tip To Tip frame: 18-3/4 x 12-11/16 inches
Door Cut Out: 12 x 18 inches
Visible Vent: 16-1/4 x 10-1/4 inches
Color: Dark Bronze
Number of Screws: 10

Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
#8 x 1-5/8" Phillips head SMS

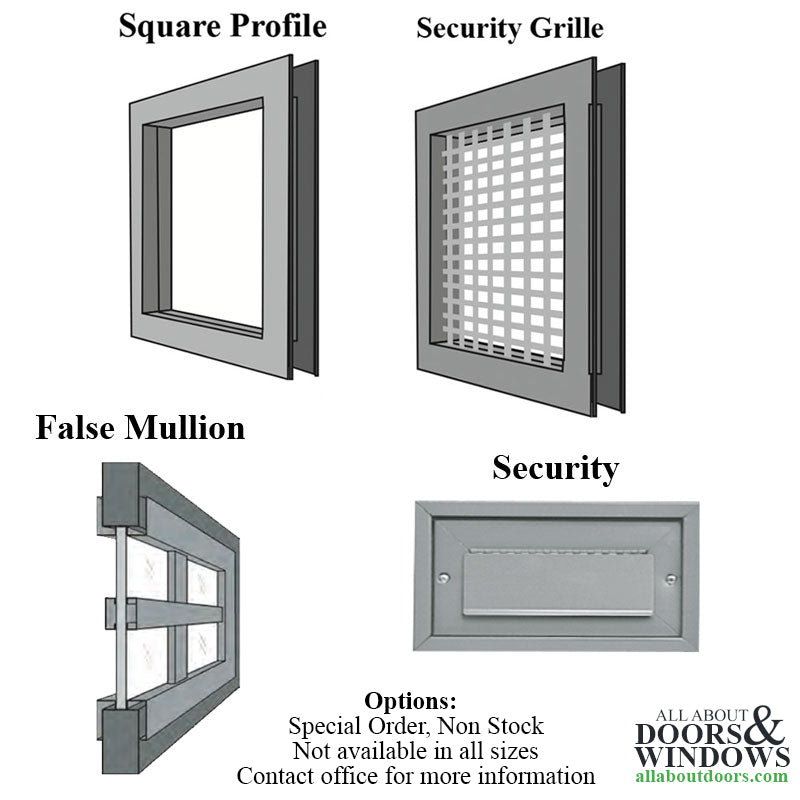

Available Options
3/8\" Glazing Space
3/16\", 1/4\" or 5/16\" GLASS
Powder coat color options - see page L2 Torx Security Screws
Galvanneal - A40 Steel
Zinc electro-plating
Glass & Glazing tape - See Glass Section Lead lining - .030" thick
Security Grille kits available
