Commercial Door Lite Frames, 7" x 22" low profile metal, screw together - Grey

Part Number: 333072200-GRY Price: $98.07
We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.

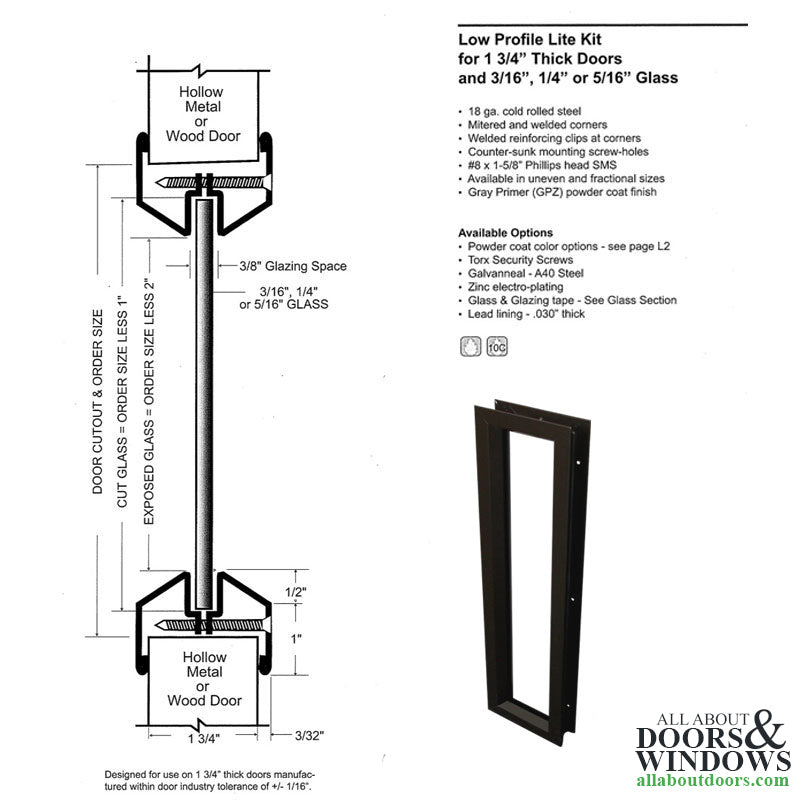

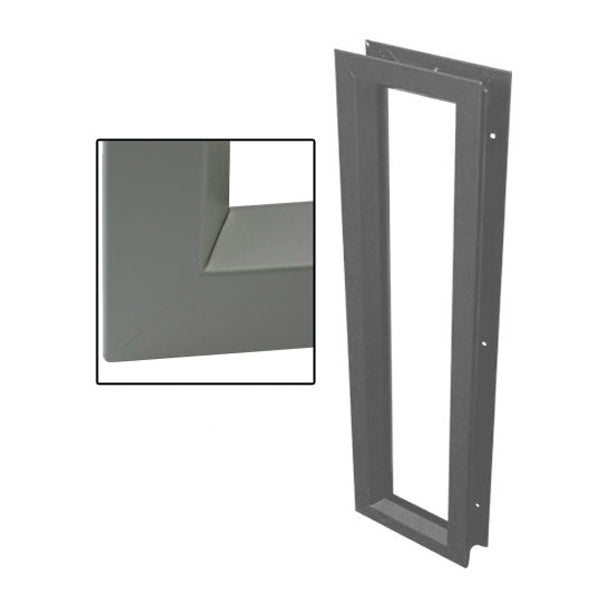

Low profile steel commercial door lite frames.
Used on 1-3/4 inch thick hollow metal or wood doors.

Tip To Tip frame: 8-1/16 x 23 inches
Door Cut Out: 7 x 22 inches
Actual Glass Size: 21 x 6 inches ( not included)
Exposed Daylight Glass: 5 x 20 inches
Color: Grey
Number of Screws: 8

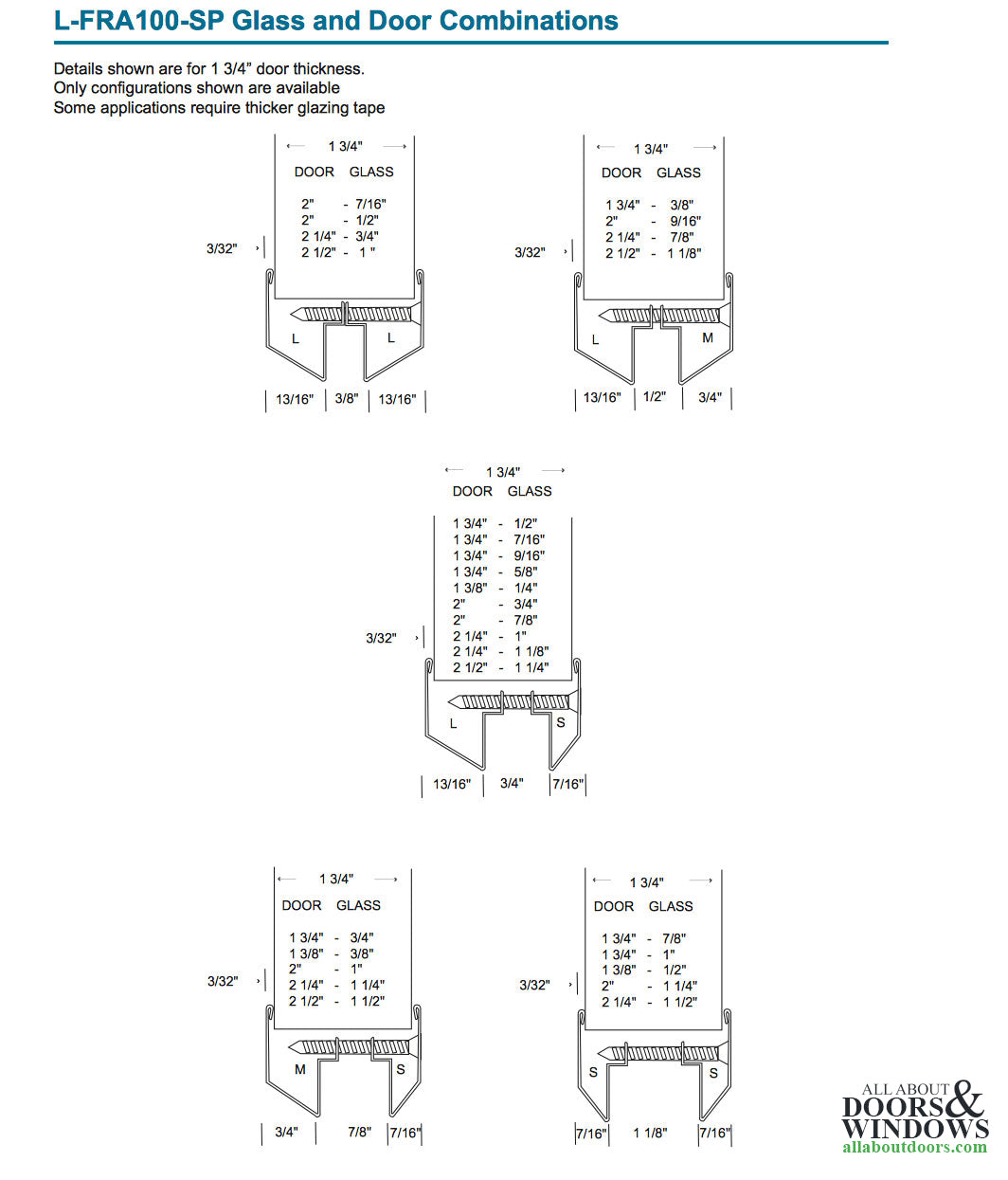

Accommodates Glass thickness 3/16", 1/4" or 5/16" (not included)
Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes

Included:
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation
(8) #8 x 1-5/8 Phillips head SMS
<b style="background-color: rgb(255, 255, 255); color: rgb(251, 0, 7); font-family: Helvetica; font-size: 13px; -webkit-text-stroke-color: rgb(251, 0, 7);">We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.</b><BR><br>Low profile steel commercial door lite frames.<br>Used on 1-3/4 inch thick hollow metal or wood doors.<br><br>Tip To Tip frame: 8-1/16 x 23 inches<br>Door Cut Out: 7 x 22 inches<br>Actual Glass Size: 21 x 6 inches ( not included)<br>Exposed Daylight Glass: 5 x 20 inches<br>Color: Grey<br>Number of Screws: 8<br><br>Accommodates Glass thickness 3/16", 1/4" or 5/16" (not included)<br>Standard screw together low profile frame<br>18 ga. cold rolled steel<br>Mitered and welded corners<br>Welded reinforcing clips at corners<br>Counter-sunk mounting screw-holes<br><br>
Included:<br>
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation<br>
(8) #8 x 1-5/8 Phillips head SMS
