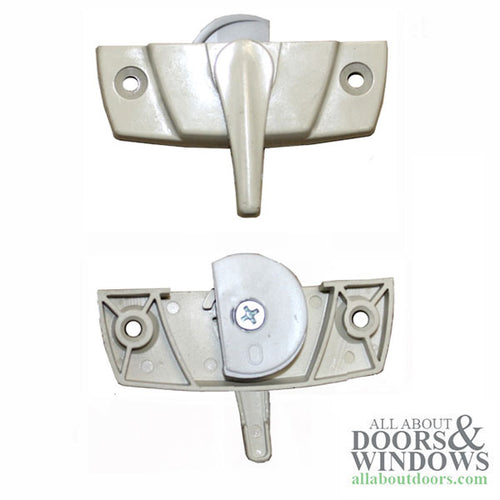

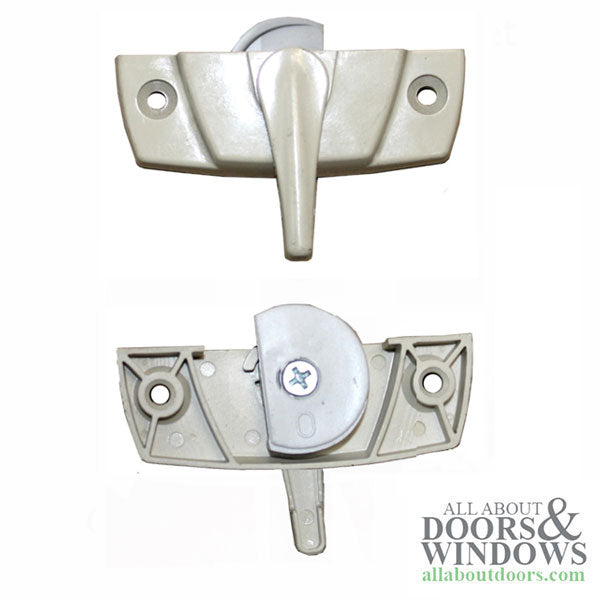

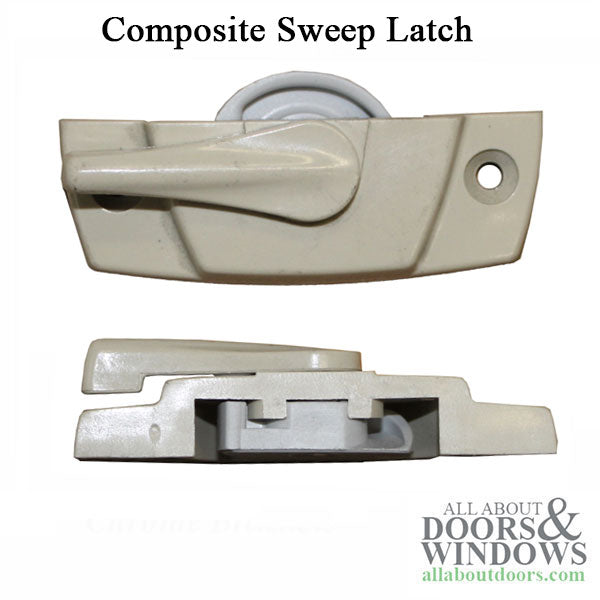

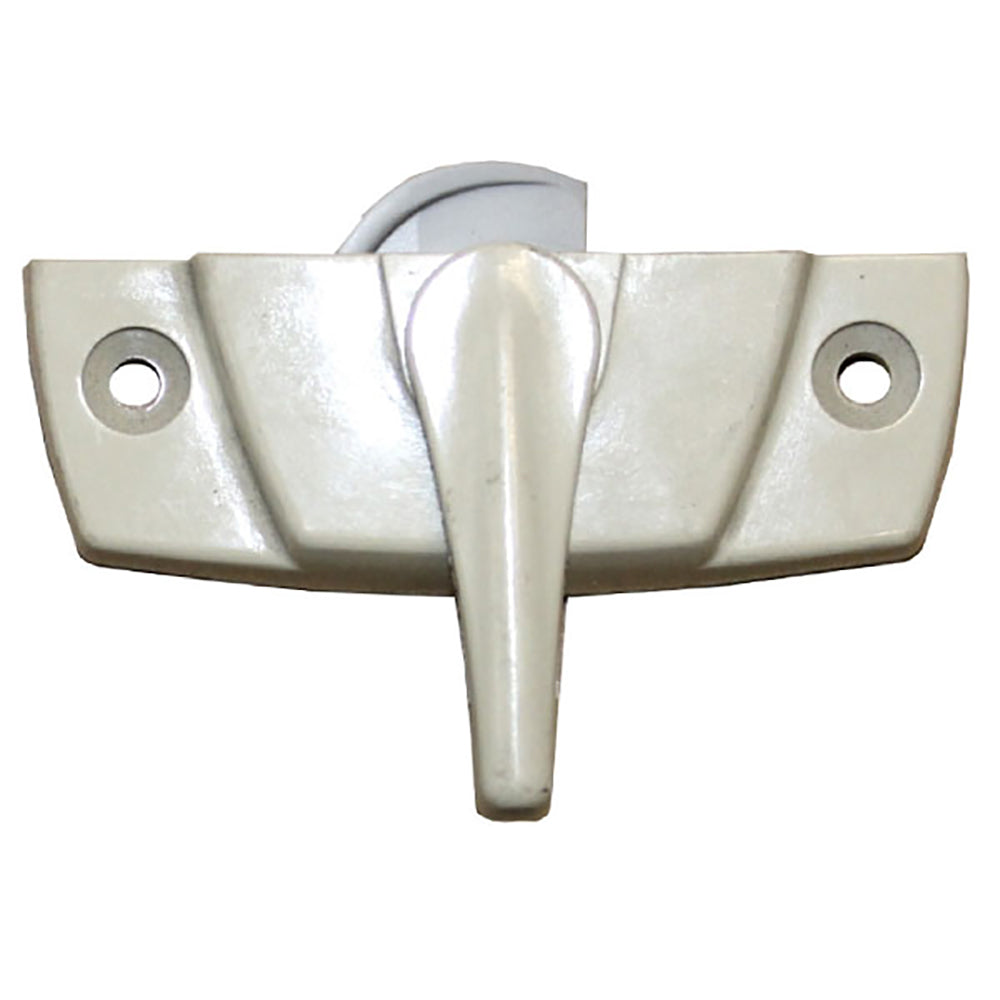

Composite Double Hung sash lock with offset screws holes spaced at 2-1/4
Use the arrows or swipe left to view all images for this product
Composite Double Hung sash lock with offset screws holes spaced at 2-1/4

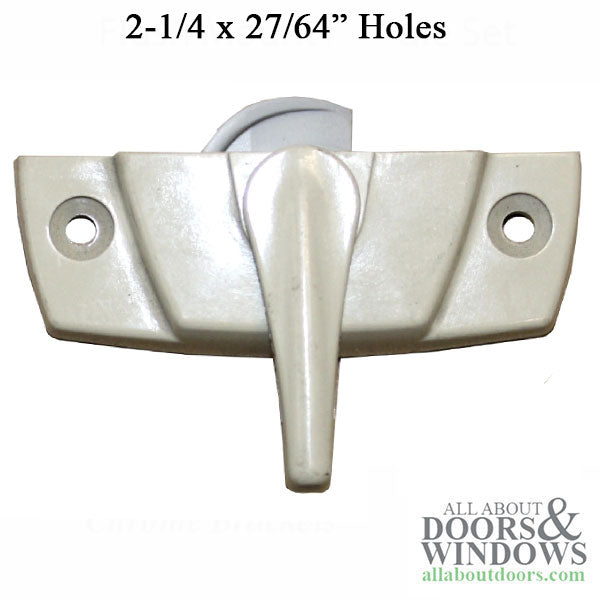

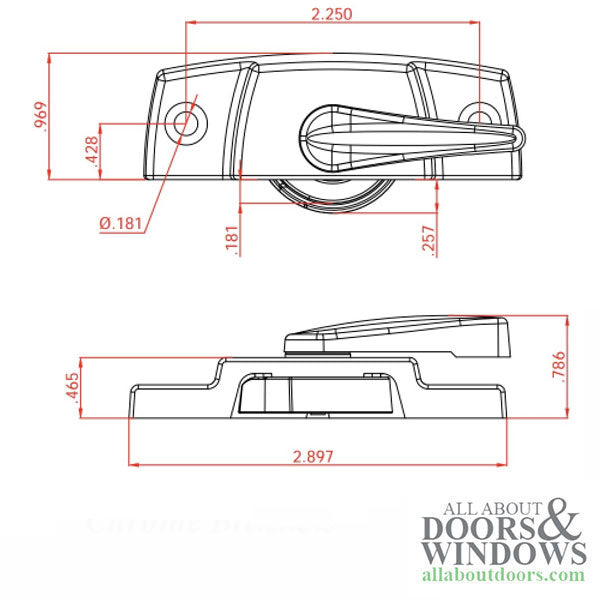

Part Number: $1.06Composite sash lock with offset screws holes spaced at 2-1/4 inch and 27/64 inch back from front.
Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 27/64 inch (10.87 mm) 0.428
Cam Throw: 1/4 inch (6.197mm) .244
Cam Pull in: 3/16 inch
Material: Composite ( Polymer Plastic matrix )
Color: Beige / Almond
NOTE: A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 27/64 inch (10.87 mm) 0.428
Cam Throw: 1/4 inch (6.197mm) .244
Cam Pull in: 3/16 inch
Material: Composite ( Polymer Plastic matrix )
Color: Beige / Almond
NOTE: A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
Composite sash lock with offset screws holes spaced at 2-1/4 inch and 27/64 inch back from front.
Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 27/64 inch (10.87 mm) 0.428
Cam Throw: 1/4 inch (6.197mm) .244
Cam Pull in: 3/16 inch
Material: Composite ( Polymer Plastic matrix )
Color: Beige / Almond
NOTE: A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
