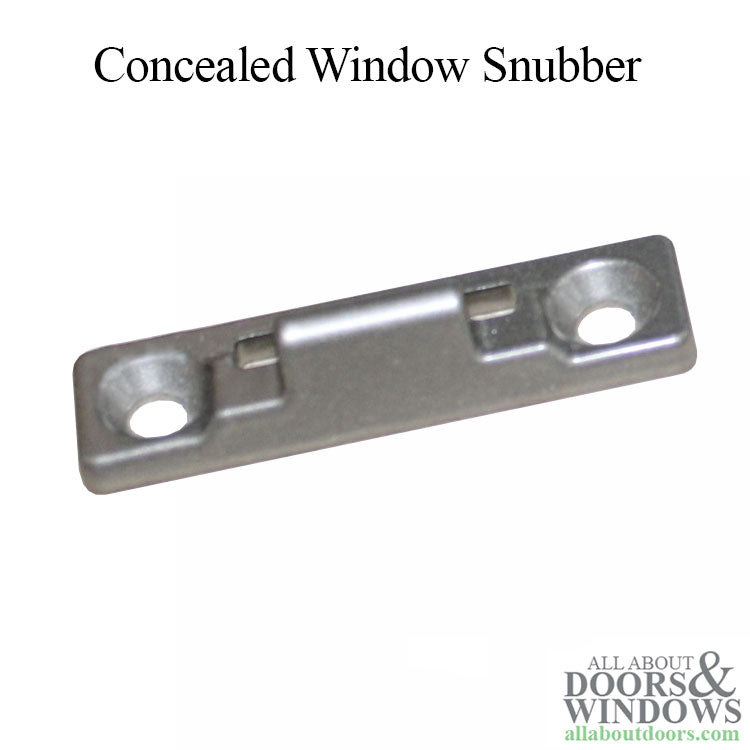

Concealed Window Snubber, Die Cast
Part Number: Price: $3.38Truth Window Snubber, Casement Sash Anti-Bow, Frame Mount Concealed
Window snubbers are used on tall casement and wide awning windows to prevent the sash from bowing.
Snubbers are installed at the center of the hinge side on any window which has a tendency to bow outward at the center when in the closed position.
Used by Weather Shield on the Pro Shield windows, Alliance and Integrity Casement and Awning Windows.

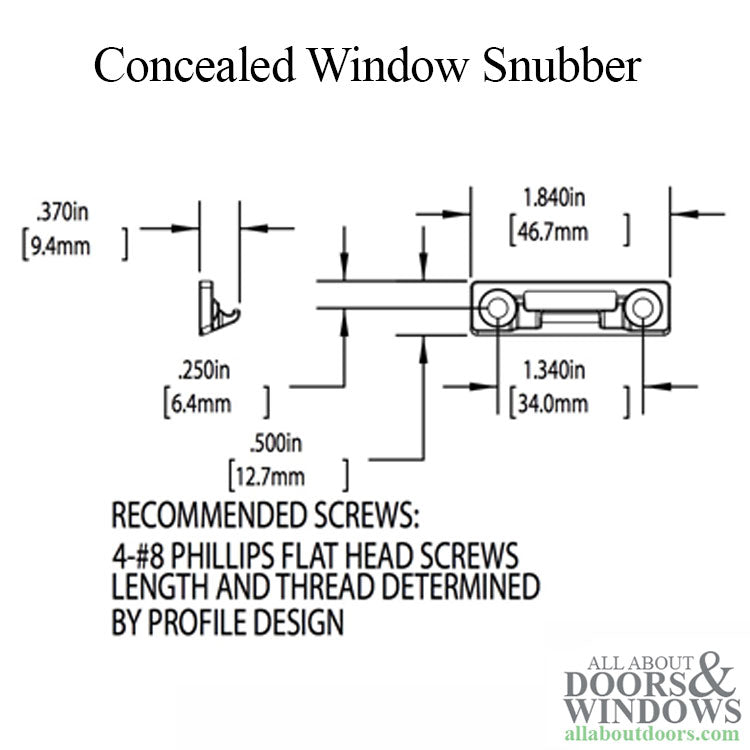

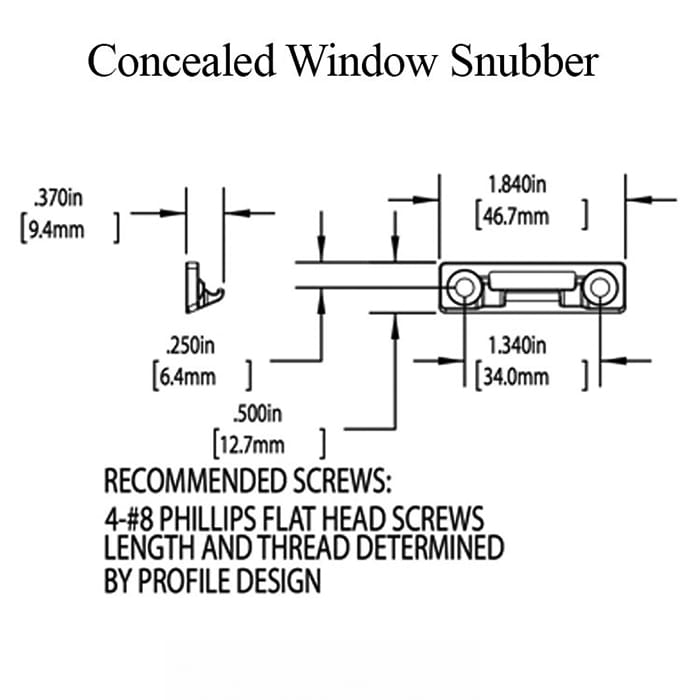

Screw Holes: 1- inch (34mm) 1.34
Width: 1/2 inch (12.7mm) .500
Length: 1-13/16 inch (46.7mm) 1.840
Height: 3/8 inch (9.4mm) .370
Material: Die Cast
Truth Hardware part number 22999
Weather Shield Part Number 940409
Window snubbers are used on tall casement and wide awning windows to prevent the sash from bowing.
Snubbers are installed at the center of the hinge side on any window which has a tendency to bow outward at the center when in the closed position.
Used by Weather Shield on the Pro Shield windows, Alliance and Integrity Casement and Awning Windows.
Screw Holes: 1- inch (34mm) 1.34
Width: 1/2 inch (12.7mm) .500
Length: 1-13/16 inch (46.7mm) 1.840
Height: 3/8 inch (9.4mm) .370
Material: Die Cast
Truth Hardware part number 22999
Weather Shield Part Number 940409
