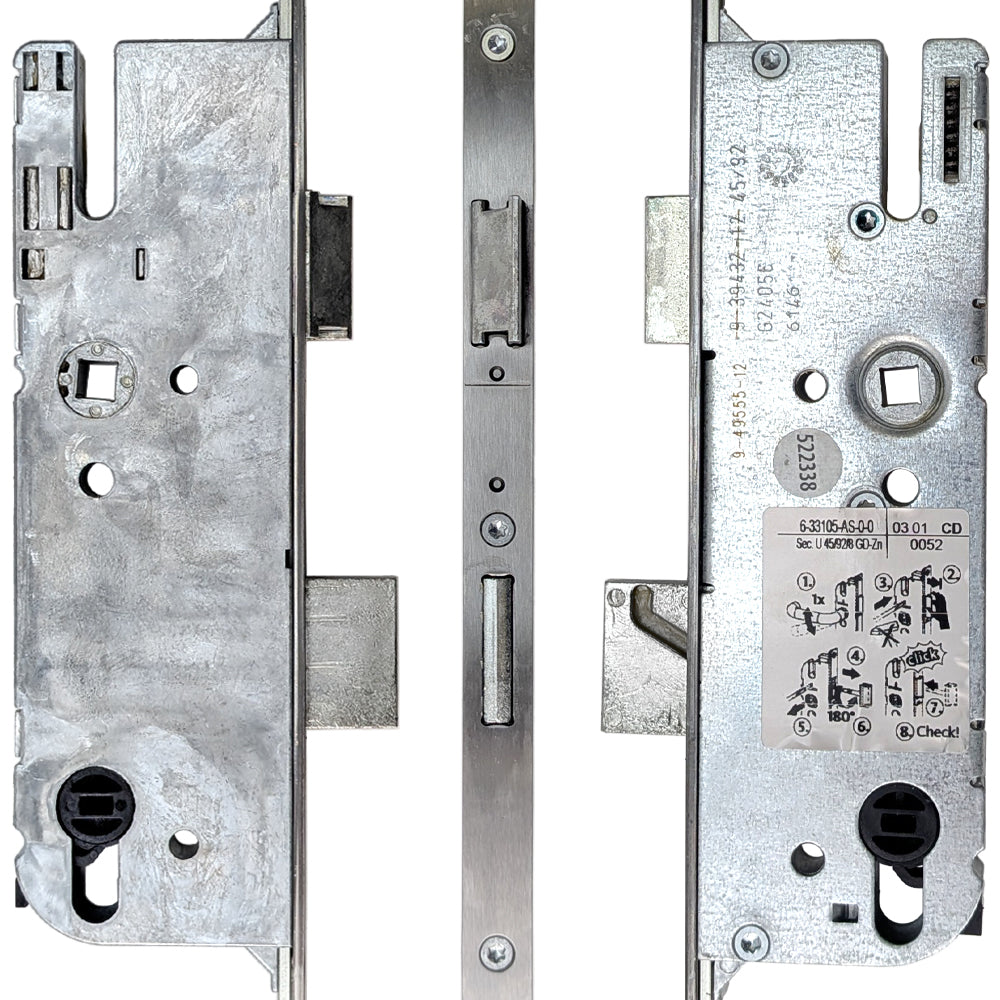

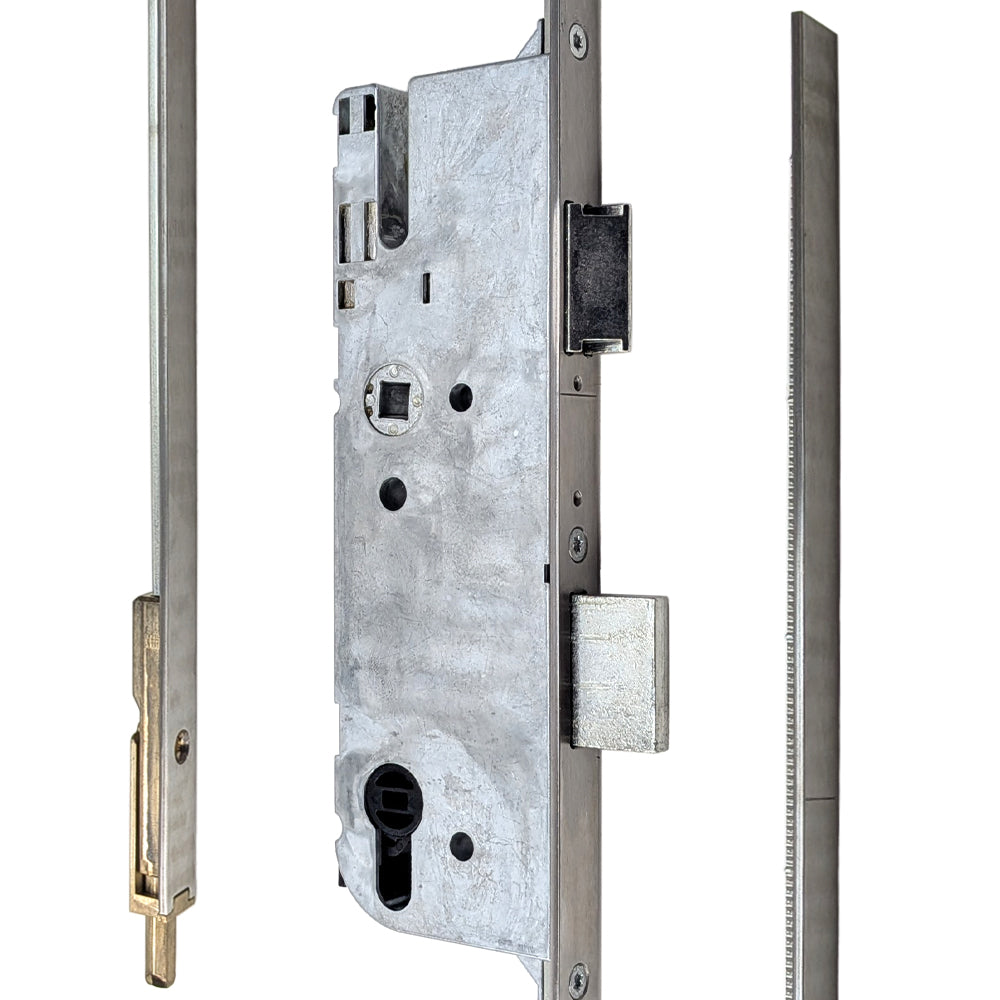

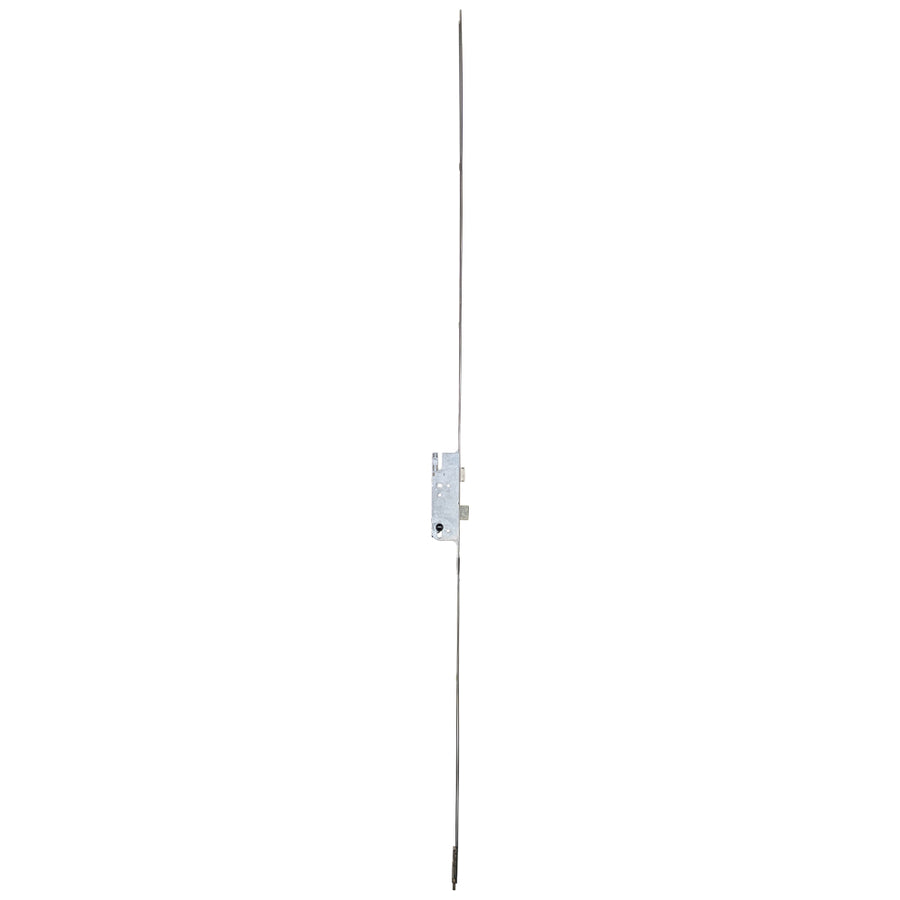

G-U/Ferco Cremona 3-Point Door Locking Gear

Active Gear Only with Bottom Shootbolt Attached

Top shootbolt sold separately. See related items below.

The G-U Cremona 3-point multi-locking system features upper and lower shootbolts for maximum security and prevention of door panel warp.  Also featured is our 90-degree locking mechanism which incorporates a standard US cylinder and offers a variety of Schlage "C" keyway systems.

Key Features:

• 3-point, height adjustable, multipoint locking system
• Shoot bolts, top and bottom, deadbolt and latch at handle
• Extensions are available for taller doors
• Lever controlled engaging and releasing of shoot bolts deadbolt and latch
• Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
• Non-handed, latch easily reversible
• Heavy duty mortise construction with reinforced lever return spring system
• Available in standard finish, black matte lacquer finish, or 400 series stainless steel for increased corrosion resistance
• Same hardware groove detail throughout G-U/Ferco's entire door lock program (router bits available)

Specifications:

• Series:  Europa Cremona
• Locking Function: Shootbolts lock at top and bottom of door panel (top shootbolt sold separately) combined with deadbolt for 3 secure locking points.
• Handle Position:  Key below handle (Europa)
• Cylinder Type: US-Cylinder system with a 90 degree turn of key or thumbturn.
• PZ (Distance from center-of-handle to center-of-cylinder):  3-5/8 inch (92mm)
• Backset:  45 mm (1-3/4 inch)
• Faceplate Width:  16mm (5/8 inch)
• Faceplate Finish: Stainless Steel
• Handle Height: Normally used with 35 Inches (889mm) handle height
• Spindle Size: 8mm square
