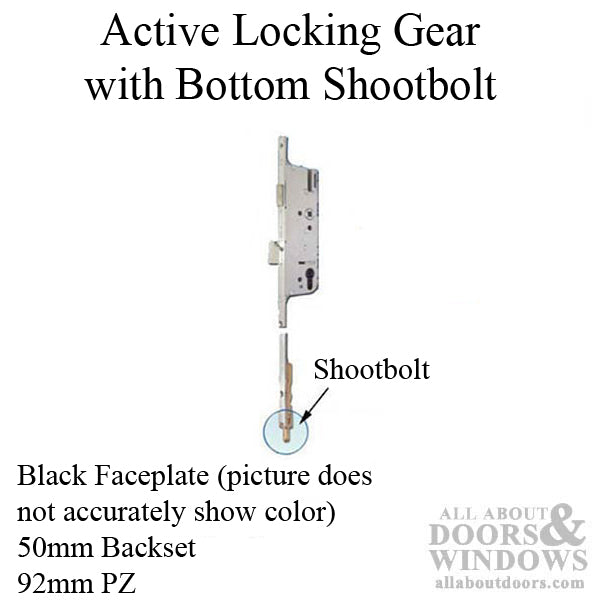

G-U Cremona 3 Point Door Locking Gear with Bottom Shootbolt attached

Does not include top Shootbolt or screws. To purchase as a kit with top shootbolt and screws included, see 4990330-KIT

Series: Europa - Cremona 3 Point Door Locking Gear with Bottom Shootbolt Only
Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)
Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.
Handle Position: Key below Handle (Europa)
Function: Shootbolt version: Shootbolt locks vertically at top and bottom of door panel
(Top Shootbolt SOLD Separately)
Backset: 2 inch (50mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Black
Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square

The Cremona 3-point locking system features shoot bolts, top and bottom for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage "C" keyway systems.

Key Features:
* 3-point, height adjustable, locking system
* Shoot bolts, top and bottom, deadbolt and latch
* Extensions are available for taller doors
* Lever controlled engaging and releasing of shoot bolts deadbolt and latch
* Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
* Non-handed, latch easily reversible
* Heavy duty mortise construction with reinforced lever return spring system
* Available in standard finish, black matte lacquer finish or 400 series stainless steel for increased corrosion resistance
* Same hardware groove detail throughout our entire door lock program (router bits available)
