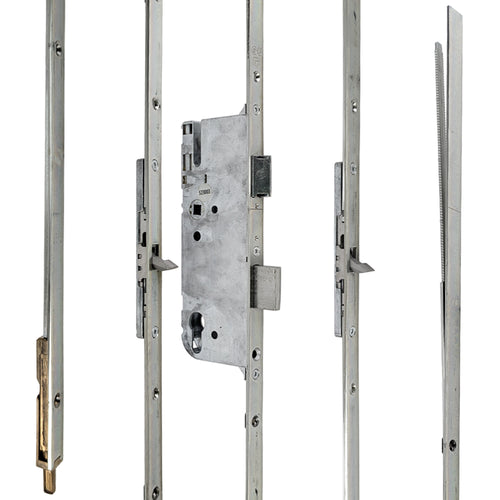

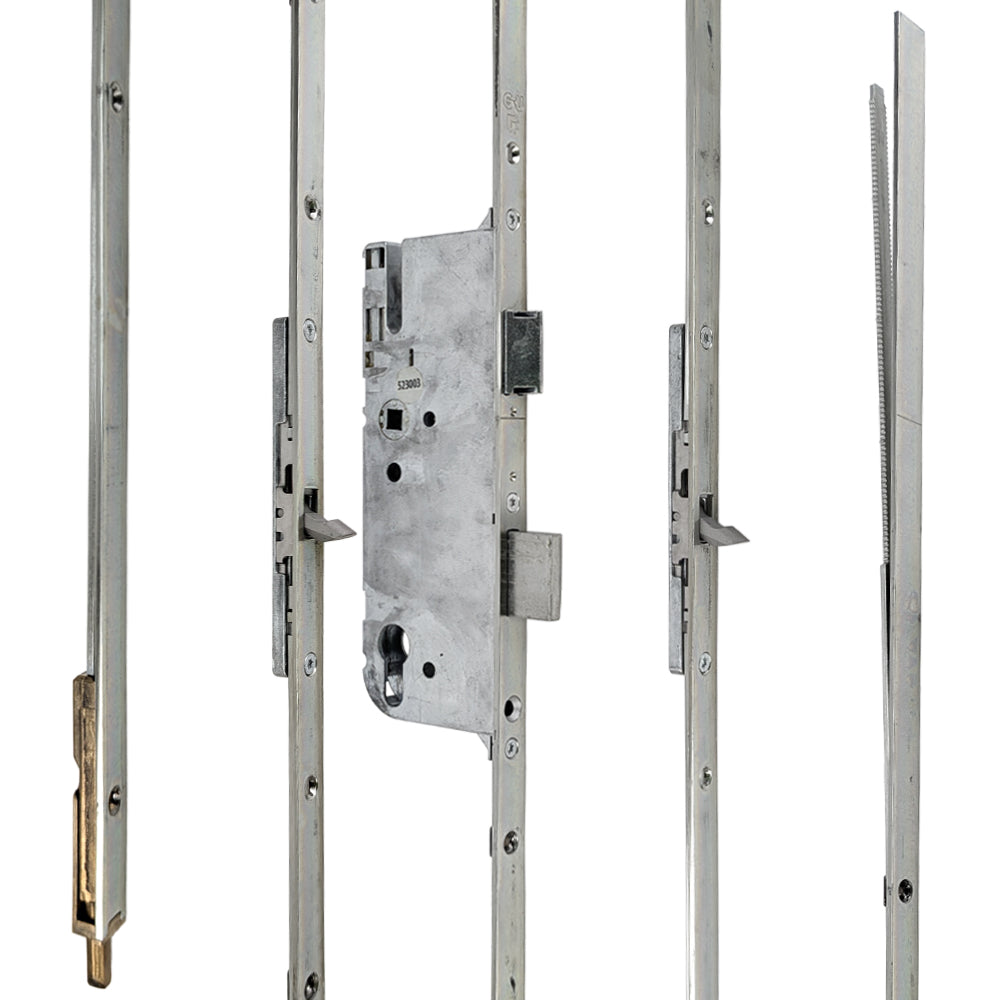

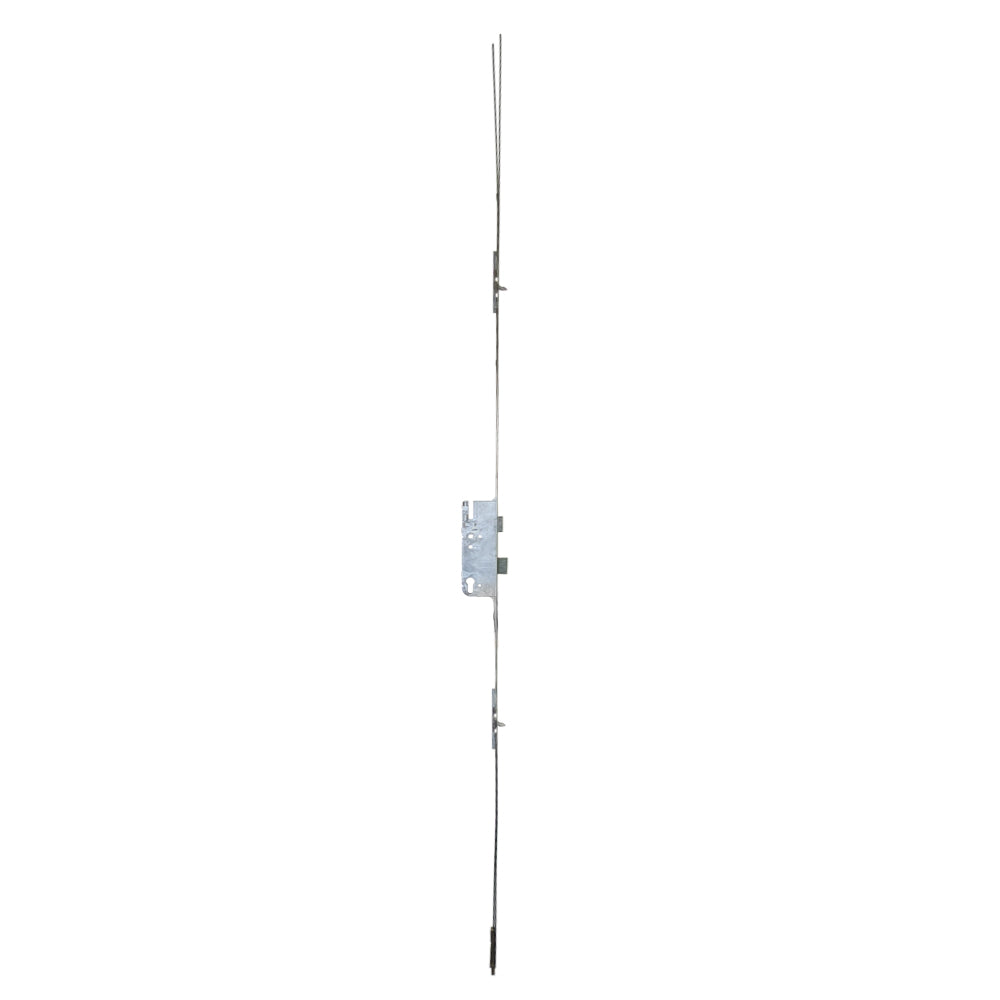

G-U/Ferco Tripact/Cremona S2

5-Point Locking System

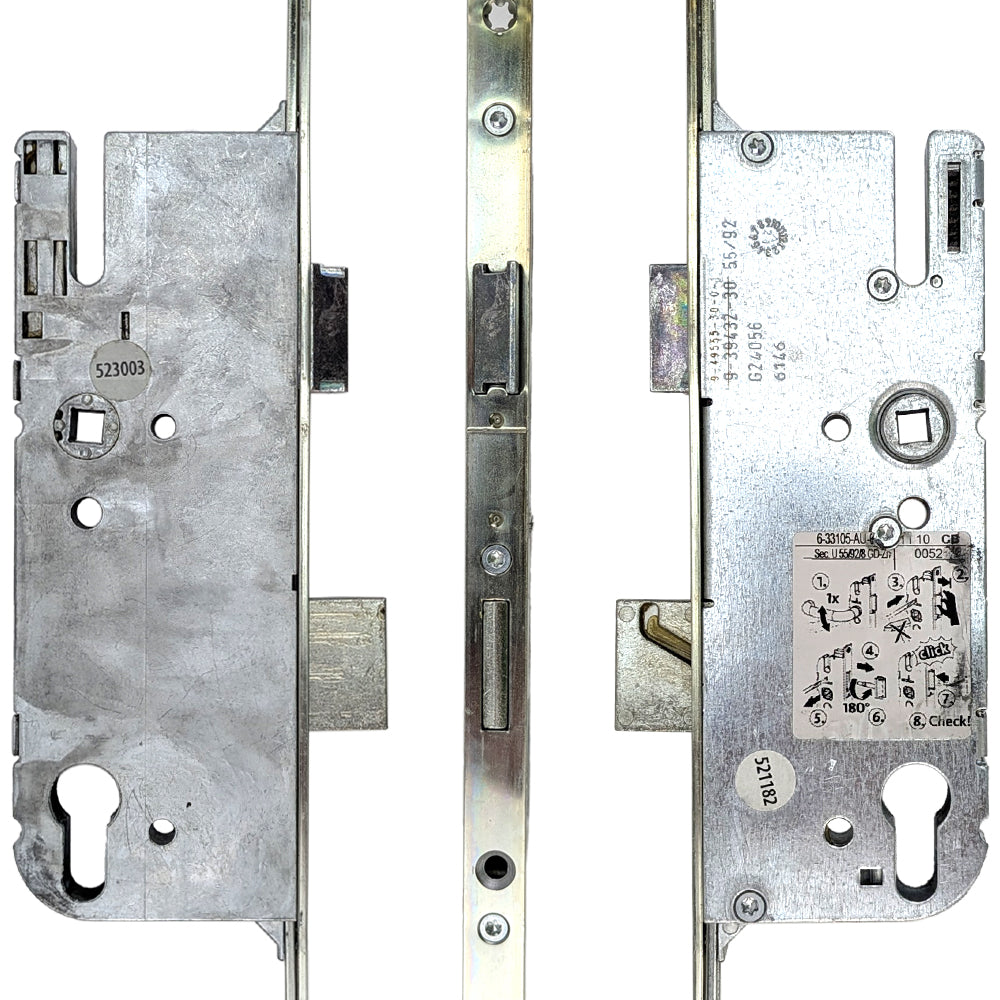

The Tripact-shoot multi-point locking system features top and bottom shootbolts, upper and lower tongue bolts, and a standard deadbolt for a total of 5 points of security. Additionally, these secure points ward against against warping of door panels over time. Heavy-duty mortise construction with reinforced lever-return spring system; lever controls engaging and releasing of all locking points. Top shootbolt sold separately. Extensions with or without additional tongue are also available for taller doors. See related items below.

Also featured is a 90-degree locking mechanism that incorporates a standard European/Profile cylinder.

• Series:  Europa Tripact-Shoot (Door lock gear only)

• Locking Function:  Tongue & shootbolt version; locks vertically at top and bottom of door panel

• Cylinder Type:  Euro/Profile cylinder system with a 90-degree turn of key/thumbturn

• Handle Position:  Key below handle (Europa)
• Backset:  55 mm (2-1/8 inch)
• PZ (Distance from center-of-handle to center-of-cylinder):  92 mm (3-5/8 inch)

• Locking Positions:

  • Lower Tongue:  380 mm (15 inches)

  • Upper Tongue:  508 mm (20 inches)

• Faceplate Width:  16 mm (5/8 inch)

• Handing:  Non-handed; latch easily reversible

• Handle Height:  Normally used with 889 mm (35 inch) handle height

• Spindle Size:  8 mm × 8 mm square

• Faceplate Finish:  Silver Ferguard
