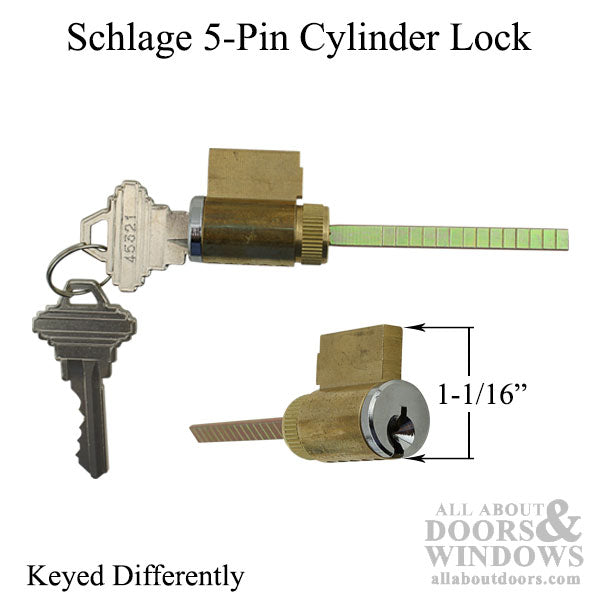

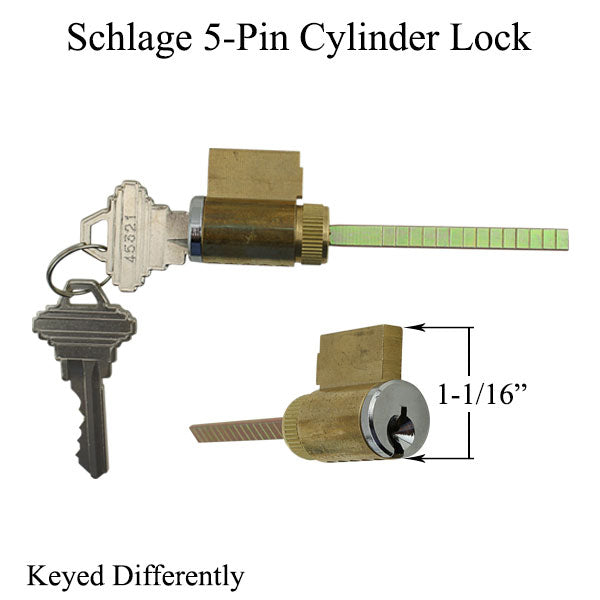

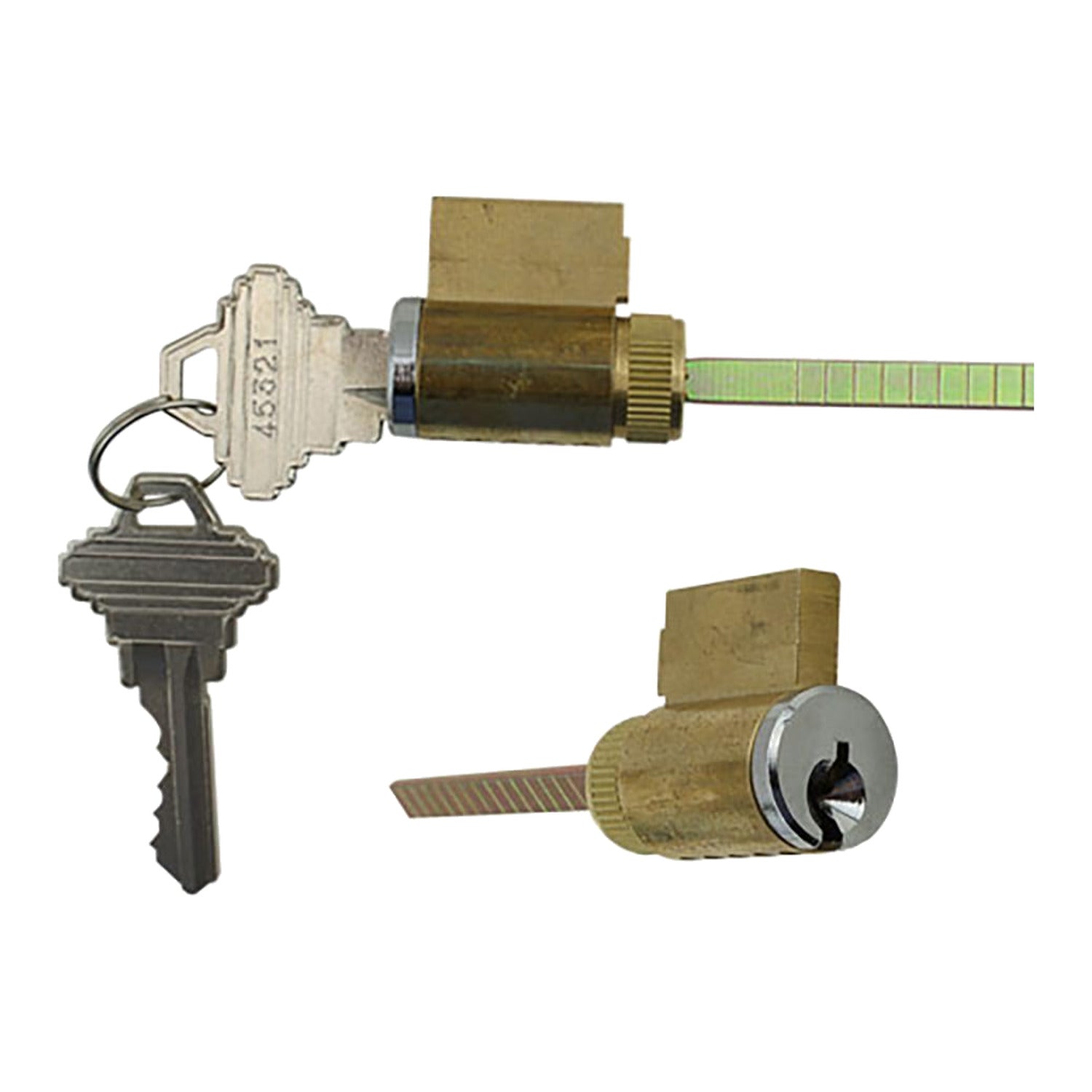

Cylinder Lock, Schlage SC1, 5 Pin Tumbler - Keyed Different

Part Number: 15031 Price: $8.82
American keyed cylinder, 5 pin tumbler lock with hardened tailpiece
The most common Type of keyed cylinder pin tumbler lock used with Deadbolts, single and multipoint locks, Andersen, Peachtree, Pease and others
Keyway; Schlage SC-1 Rekeyable 5 pin
Keying: Keyed Different ( KD), all use different key
Tail Piece Length: 2-1/8 inch
Adjustable tailpiece has grooves for easy break off for shorter lengths
Fits doors up to 1-3/4 inches thick.
Number of Keys: 2
Sold in Each, Priced Each
NOTE: 15032 part number should be specified when ordering multiple sets and needing all cylinders keyed alike.

Contents
1 lock
2 keys

Related items:

15031 - Schlage Keyway KD
15032 - Schlage Keyway KA
15033 - Weiser Keyway KD ( Kwikset will also work )
15034 - Weiser Keyway KA ( Kwikset will also work )

NOTE: About Weiser and Schlage Cylinders
The Schlage housing is 1/32 inch longer and does not have the notch in back sometimes the extra length is to long and may require filing to work.
- Compare pictures and measurements with your cylinder to be sure which one you want.
