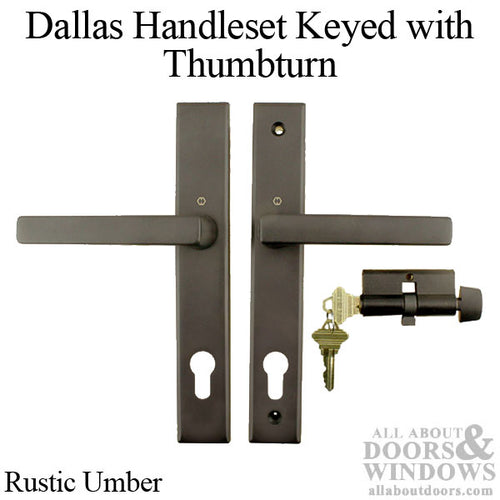

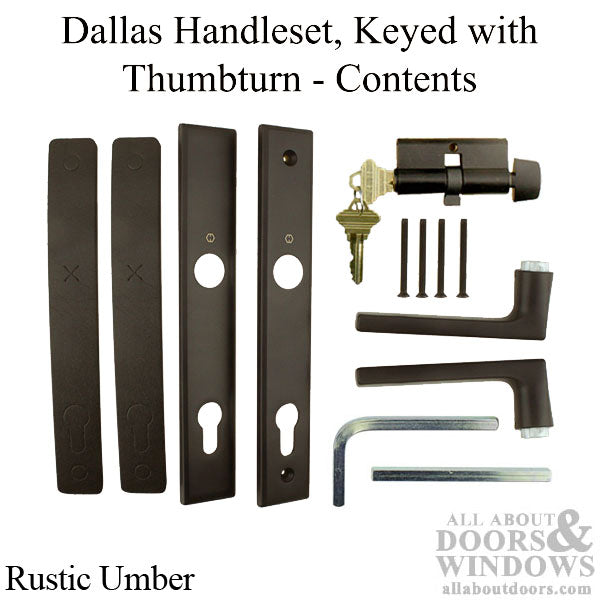

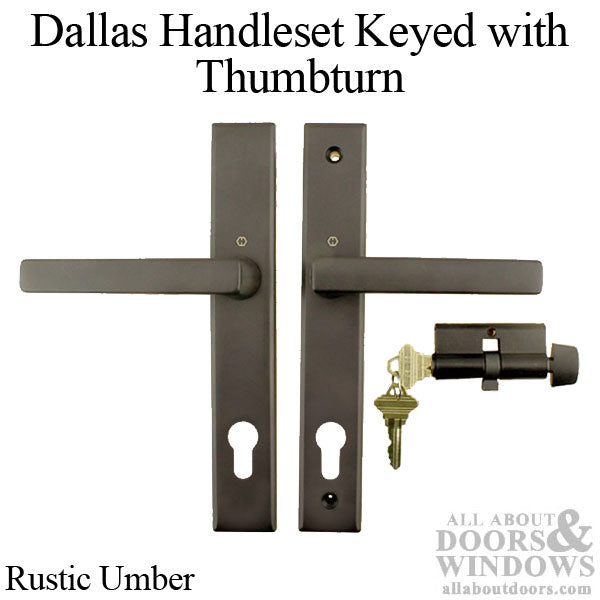

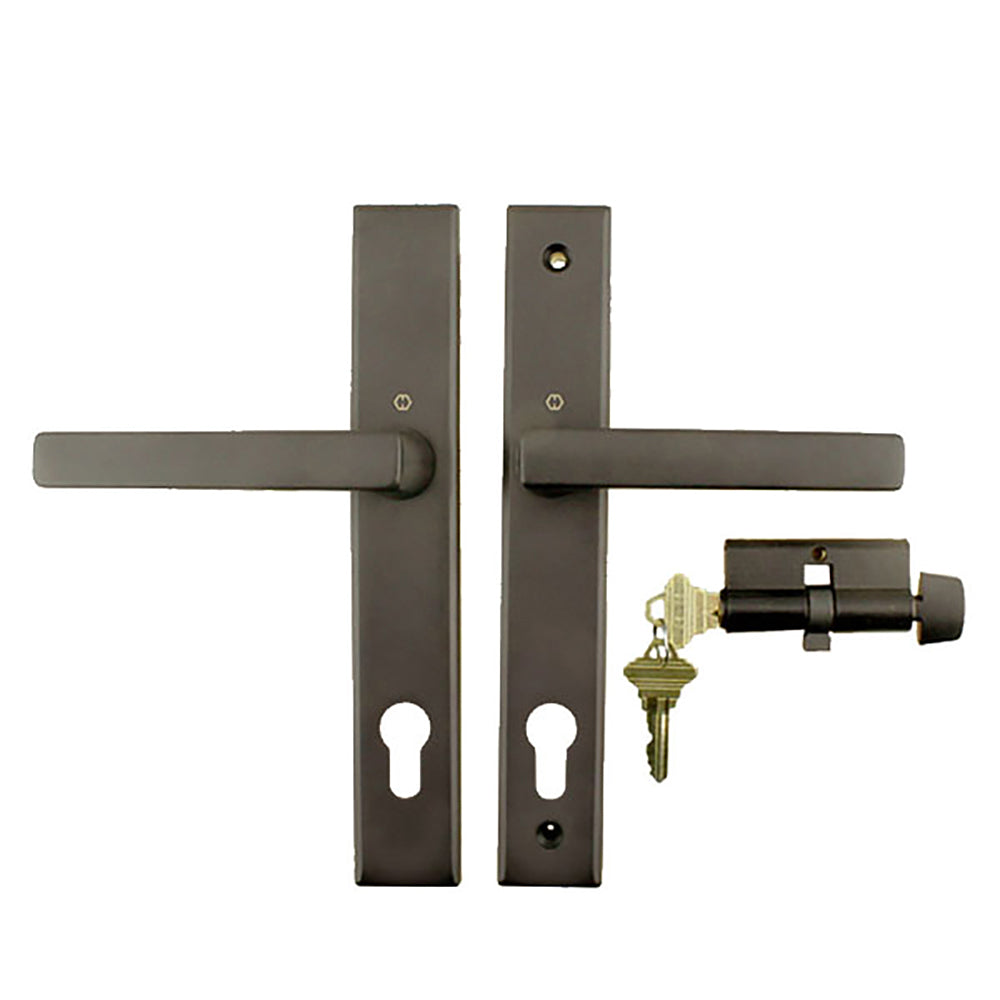

Dallas Contemporary Lever Handle M1643 / 2161N Set
The Dallas Series features straight, modern lines providing a contemporary aesthetic.

Function: Active
Style: Contemporary / Modern
Lever: M1643
Back Plate: 2161N
Cylinder: D-knob
Keyway: Schlage SC1, 5 pin cylinder and thumbturn
Material: Brass
Door Thickness: 1-3/4 inch
Color/ Finish: Rustic Umber F8709

Note: Dallas Quick-Fit lever handles do not have set-screw The lever is held on with spring tension. There is a special tool that comes with Dallas handleset to uninstall handles. There is a hole in the shaft of the lever handle to use the tool, but not for set screw. Dallas handle set uses a different spindle.

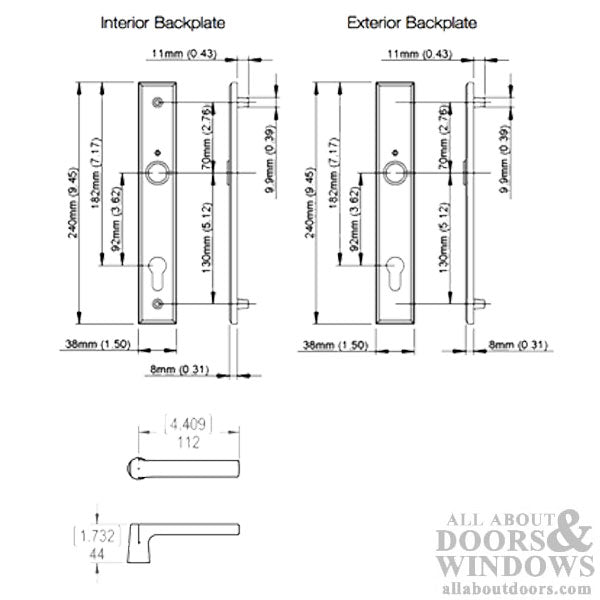

Measurements:
Escutcheon Plate Length: 9-7/16 inch
Escutcheon Plate Width: 1-1/2 inch
Screw Hole Centers: 8-5/8 inch
Cylinder center to Handle center: 3-5/8 inch

Available colors: Polished Brass, Satin Nickel, Matte Black, Dark Bronze Metallic, Rustic Umber
Available Functions: Active with keyed Cylinder, Inactive with 1/2 Cylinder, Dummy Fixed Pair
