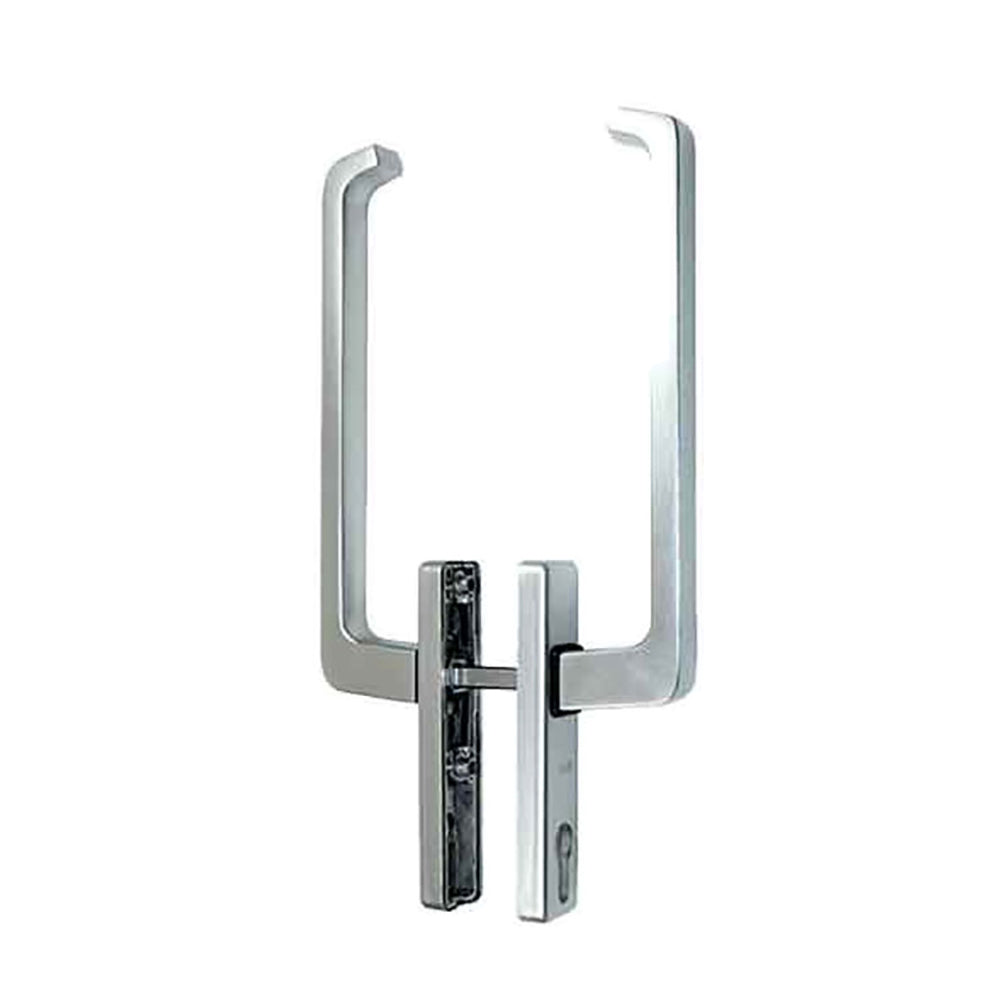

DIRIGENT - L&S Interior/Exterior Handle Set, with Cylinder Holes.

High-quality aluminum, stainless steel or brass turn handles, interior and exterior, with PC-hole.
With 10 mm square spindle and 80 mm distance between screw centers.
Suitable for use with all customary timber, PVC or aluminum Lift&Slide profile systems for up to 400 kg sash weight.
Durability test with 25,000 cycle in compliance with DIN 13126 part 16.
Suitable for sash thicknesses up to 110 mm, adjustable square spindle.

Flush Pull Height: 6-1/16”
Flush Pull Width: 1-7/16”
Hole Center: 3-1/8”
Handle Plate Height: 6-1/16”
Handle Plate Width: 1-3/8”
Handle Length: 9-7/8”
Handle Width: 14/16”
Spindle: 40mm
Includes flush pull
Adjustable spindle length
Inside and Outside
Countersunk screws M 6 x100
Silver 1=EV1

Note: It is recommended the use of a buffer.
