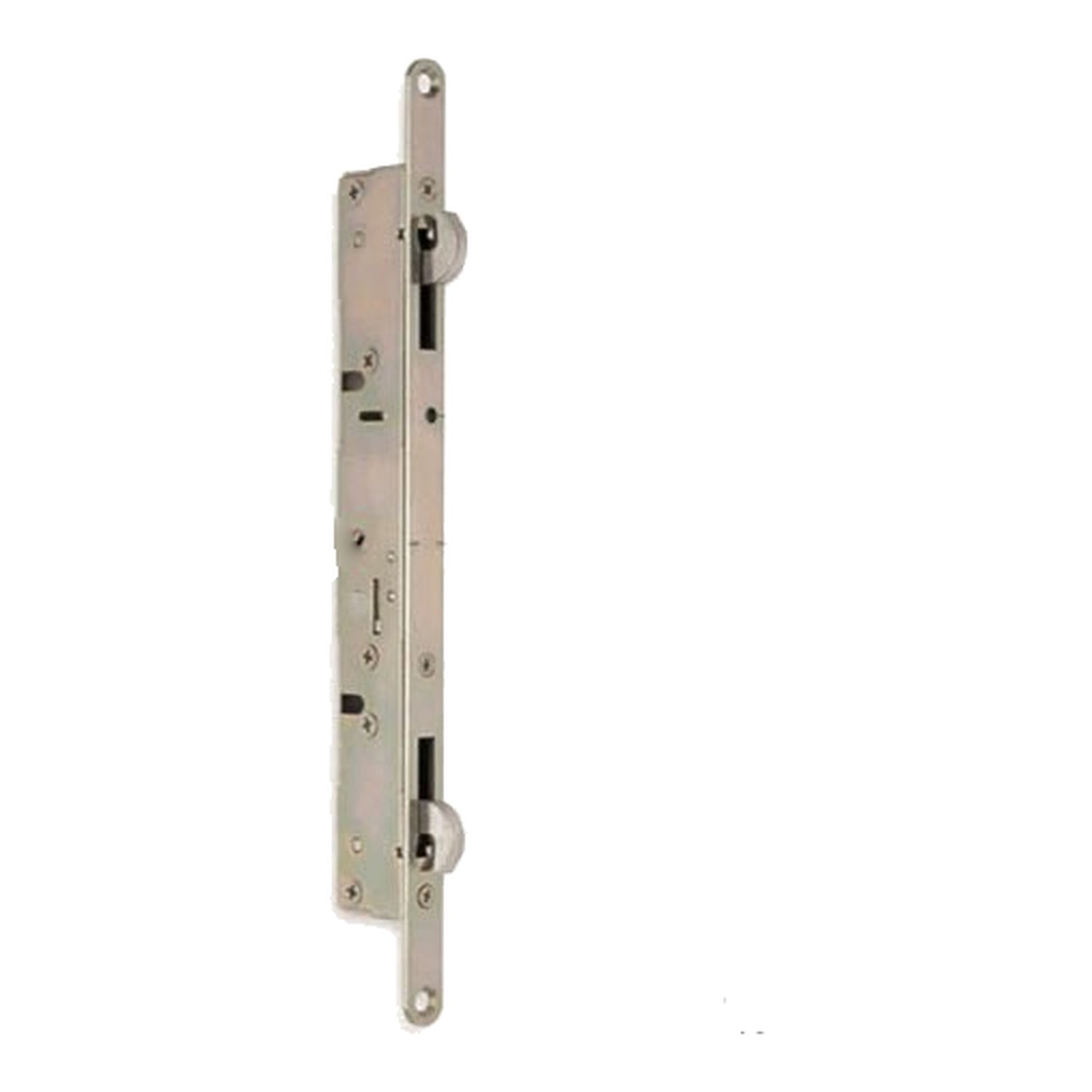

2-Point Double Hook for Sliding Door Lock Flat Faceplate Centered Latch Stainless Steel
Use the arrows or swipe left to view all images for this product
2 Point Double Hook Sliding Door Lock, Flat Faceplate
Must replace strike plate / Keeper also. Two point, double hook latch insures greater security. This type of lock is normally mortised into a hollow frame like aluminum, vinyl or fiberglass doors. There are several types of locks that look the same, please compare measurements.

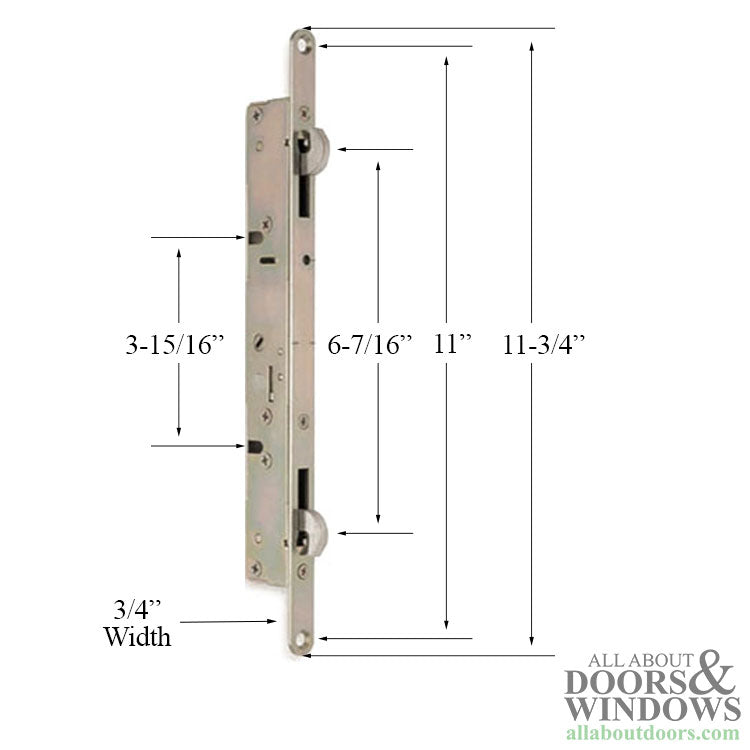

Specifications:
- Hooks: Point Outward
- Hook Spread: 6-7/16 inch
- Handle Screw Holes: 3-15/16 inch

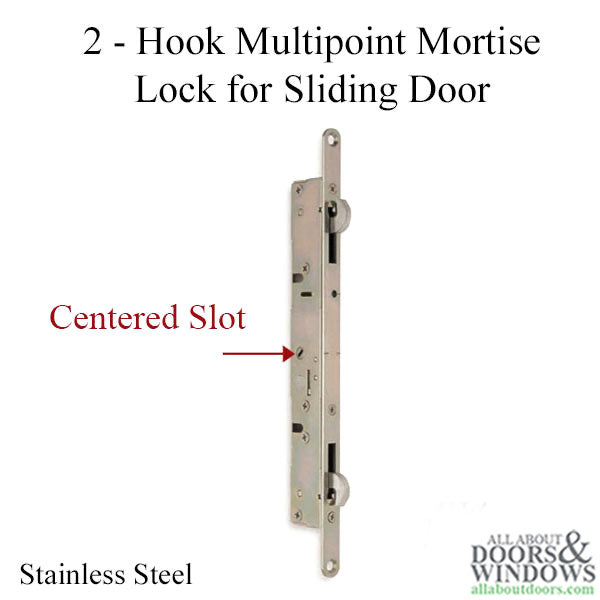

- Latch Position: Centered
- Faceplate Width: 3/4 inch
- Faceplate Length: 11-3/4 inch
- Installation Screw Holes: 11 inches

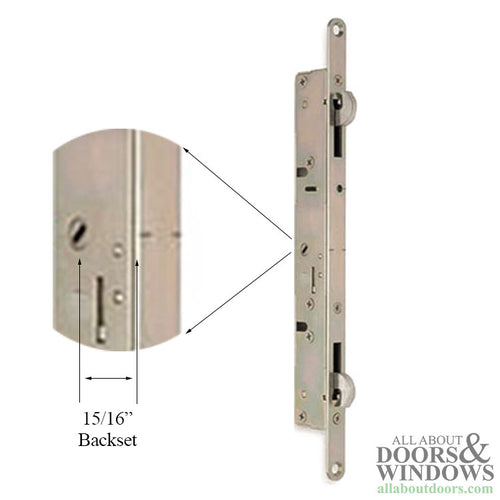

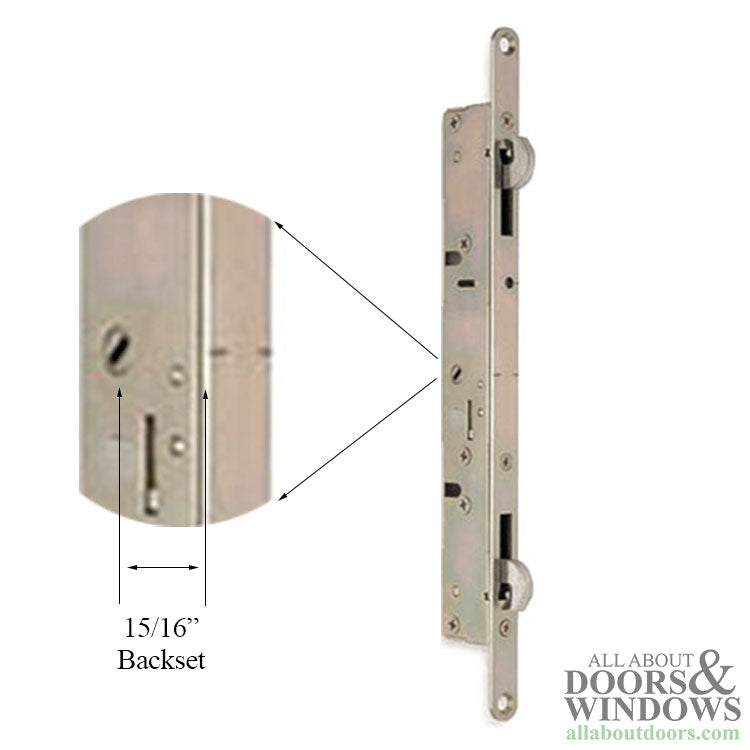

- Backset: 15/16 inch
- Faceplate Color: Stainless steel
Priced and sold each.
Must replace strike plate / Keeper also
Hooks: Point Outward
Hook Spread: 7-5/8 inch
Handle screw holes: 3-15/16 inch
Latch Position: Centered
Face plate width: 5/8 inch
Faceplate Length: 11-5/8 inch
Faceplate Color: Stainless steel
Installation Screw Holes: 11 inches
Priced and sold each.
Truth Hardware's # 32610 Nexus Two Hook Mortise Lock with Stainless Steel Pin & Long Face plate for sliding glass doors
Two point, double hook latch insures greater security.
There are several types of locks that look the same, please compare measurements.
This type of lock is normally mortised into a hollow frame like aluminum, vinyl or fiberglass doors.
