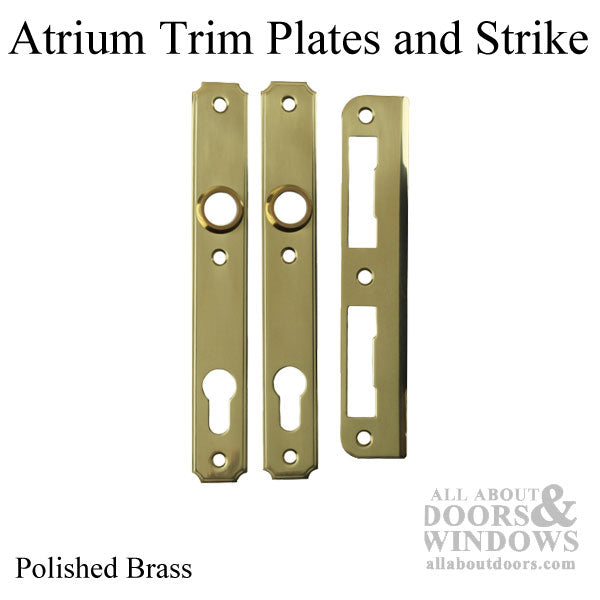

Discontinued Atrium Trim Plates and Strike in Polished Brass
Use the arrows or swipe left to view all images for this product
Discontinued Atrium Trim Plates and Strike in Polished Brass
Part Number: $57.85Atrium lock TRIM PLATES in polished brass. Thru-bolts not included.
Levers, lock, cylinder NOT included.
Discontinued and limited to existing inventory.
To purchase full Atrium replacement kit, see part #400000
Atrium brand replacement parts for the hinged patio glass door.
Brass Finish
PZ (center of cylinder to center of handle): 3-5/8 inches (92mm)
Trim Plates: 1-3/16 x 8-1/4 inches (30mm x 210mm)
Trim Plate Screw Hole Spacing: 7-5/16 inches (186m)
Strike Plate: 1-7/16 x 7-5/8 inches (37mm x 194mm)
Strike Openings: 1/2 in (at narrowest point) x 2-1/4 inches (13mm x 57mm)
Strike Plate Screw Hole Spacing: 6-3/4 inches (171mm)
Priced and sold each.
Levers, lock, cylinder NOT included.
Discontinued and limited to existing inventory.
To purchase full Atrium replacement kit, see part #400000
Atrium brand replacement parts for the hinged patio glass door.
Brass Finish
PZ (center of cylinder to center of handle): 3-5/8 inches (92mm)
Trim Plates: 1-3/16 x 8-1/4 inches (30mm x 210mm)
Trim Plate Screw Hole Spacing: 7-5/16 inches (186m)
Strike Plate: 1-7/16 x 7-5/8 inches (37mm x 194mm)
Strike Openings: 1/2 in (at narrowest point) x 2-1/4 inches (13mm x 57mm)
Strike Plate Screw Hole Spacing: 6-3/4 inches (171mm)
Priced and sold each.
