Outside Pull 3-15/16" Screw Hole Pattern- Choose Color
Use the arrows or swipe left to view all images for this product
Outside Pull 3-15/16" Screw Hole Pattern- Choose Color

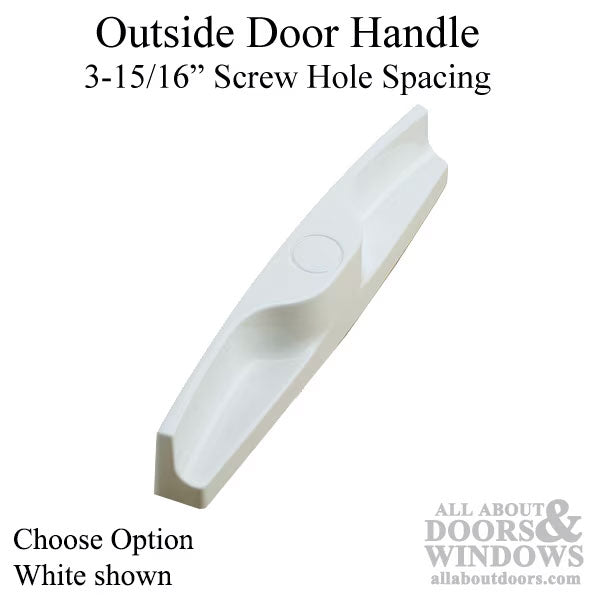

Part Number: $11.21 to $14.75Outside patio sliding door handle with knock out plug for key cylinder.( cylinder not included)
Application: Outside pull handle, Center or Off Center Thumb Turn

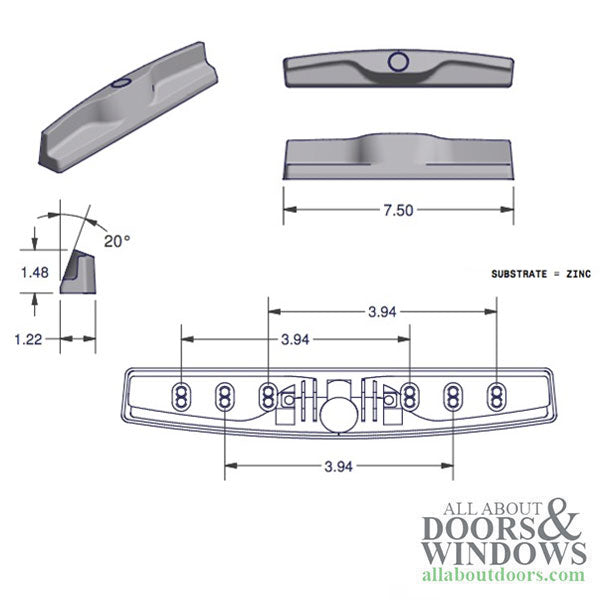

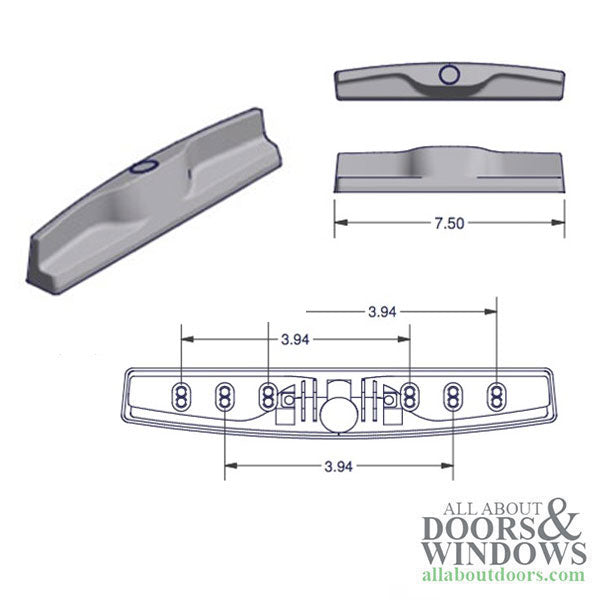

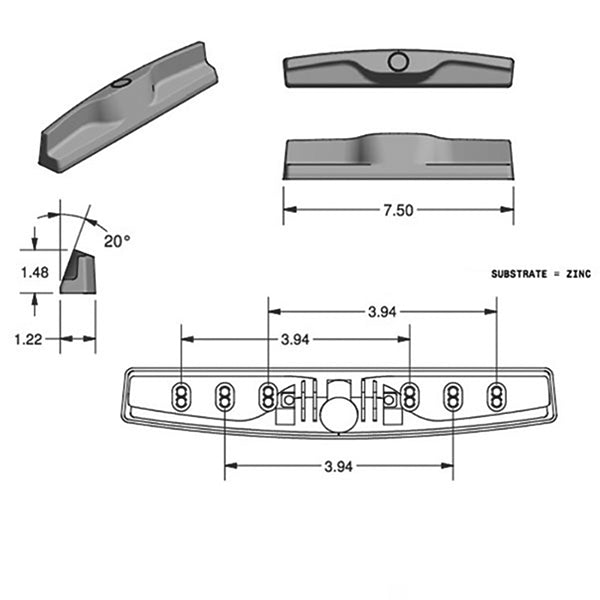

Screw Hole Spacing: 3-15/16 inch
Projection: 1-1/2 inch
Length: 7-1/2 inch
Base Width: 1-1/8 inch
Material: Zinc Die cast
Available Colors: White, Bronze, and Black
Priced and sold each, Handle only, No screws
Additional Information:
* The pull can be used with or without a key lock ( cylinder not included).
* When used with key cylinder a pan head screw will hold cylinder in place
* Handle uses 10-24 x 2 Pan Head screw for 1-3/4 inch door (NOT included).

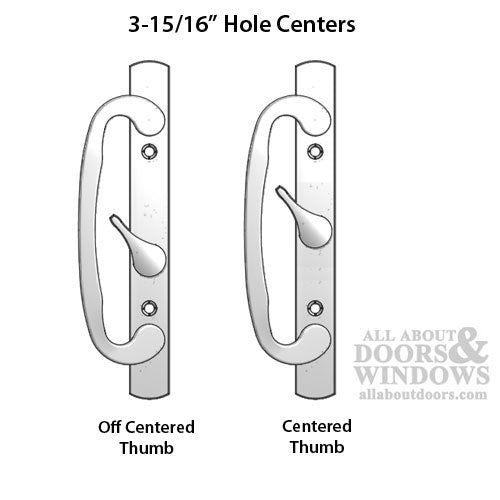

* Pull will work with off centered thumb turns, depending on holes in door.
* See additional pictures to determine which door handle you have.
* key lock see part 15033 Semi Restricted keyway ( other keyways see related parts).
Video Tutorial: Punch Out Hole in Patio Door Handle for Keyed Lock
Outside patio sliding door handle with knock out plug for key cylinder.( cylinder not included)
Application: Outside pull handle
Screw Hole Spacing: 3-15/16 inch
Projection: 1-1/4 inch
Length: 6-1/2 inch
Width: 3/4 inch
Material: Die cast
Available Colors: White, Bronze, and Black
The pull can be used with or without a key lock ( cylinder not included).
Handle uses 10-24 x 2 Pan Head screw for 1-3/4 inch door (NOT included).
Pull will work with centered or off centered thumb turns, depending on holes in door.
See additional pictures to determine which door handle you have.
Priced and sold each.
key lock see part 15033.
Video Tutorial: Punch Out Hole in Patio Door Handle for Keyed Lock
