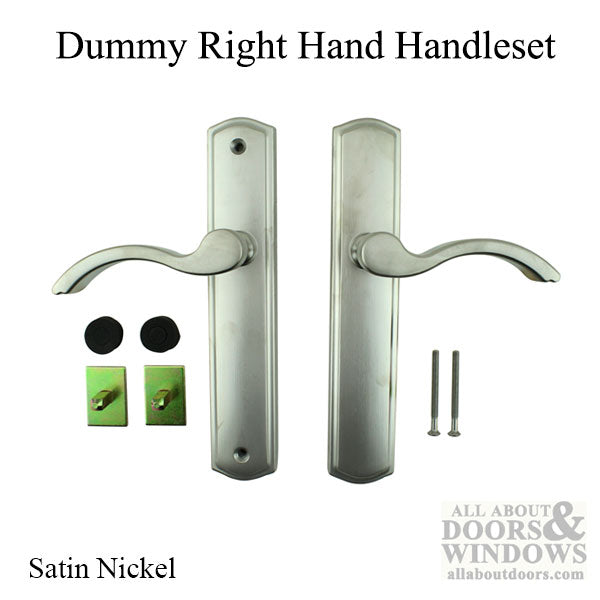

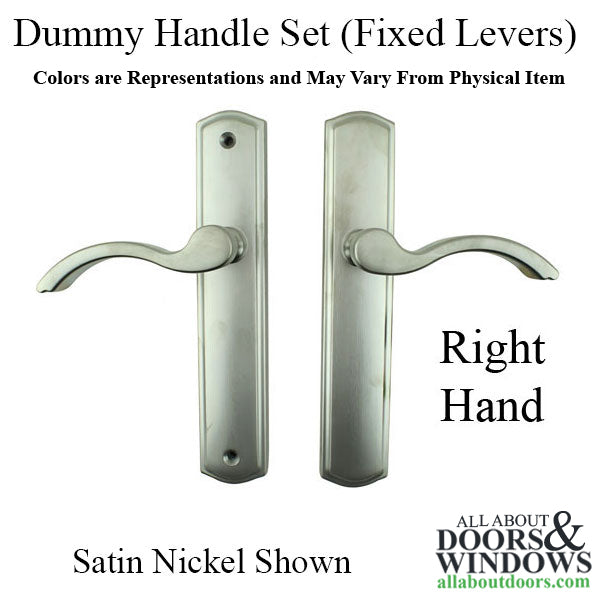

Dummy Handle set 100 Series Lever, C Plate, Right Hand - Choose Color

Part Number: 395134-BR Price: $98.28
COLOR: - Brass
Dummy / Fixed Levers, Non-keyed trim, 100 Series Regency with arched plate
Replacement Hardware for Marvin, Milgard and others

Material: Zinc, also Available in Brass substrate PVD finish for coastal areas
PVD is a high performance finish that resists tarnishing and discoloration.
Handed: Yes- Right Handed

Escutcheon Plate: "C" Style with slight arch

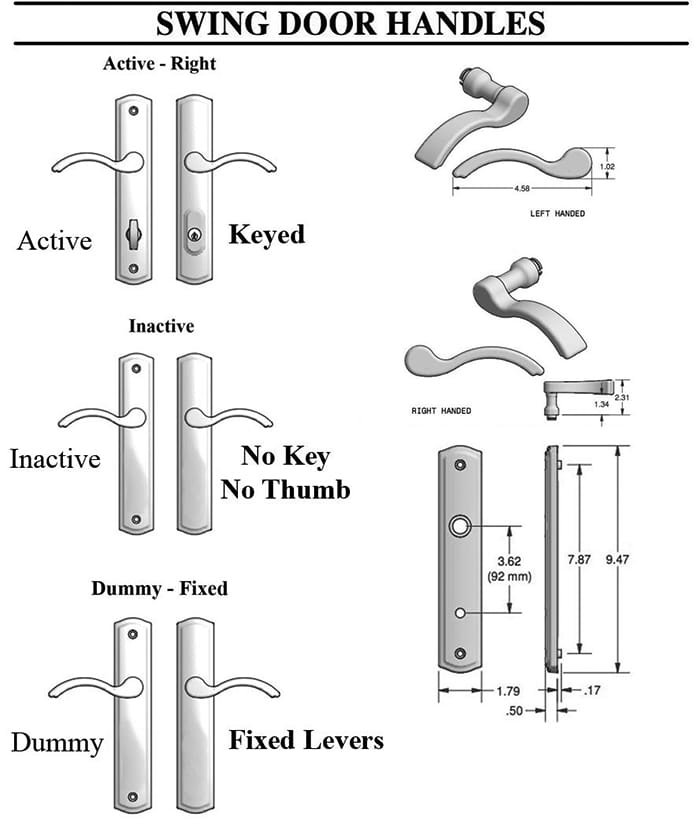

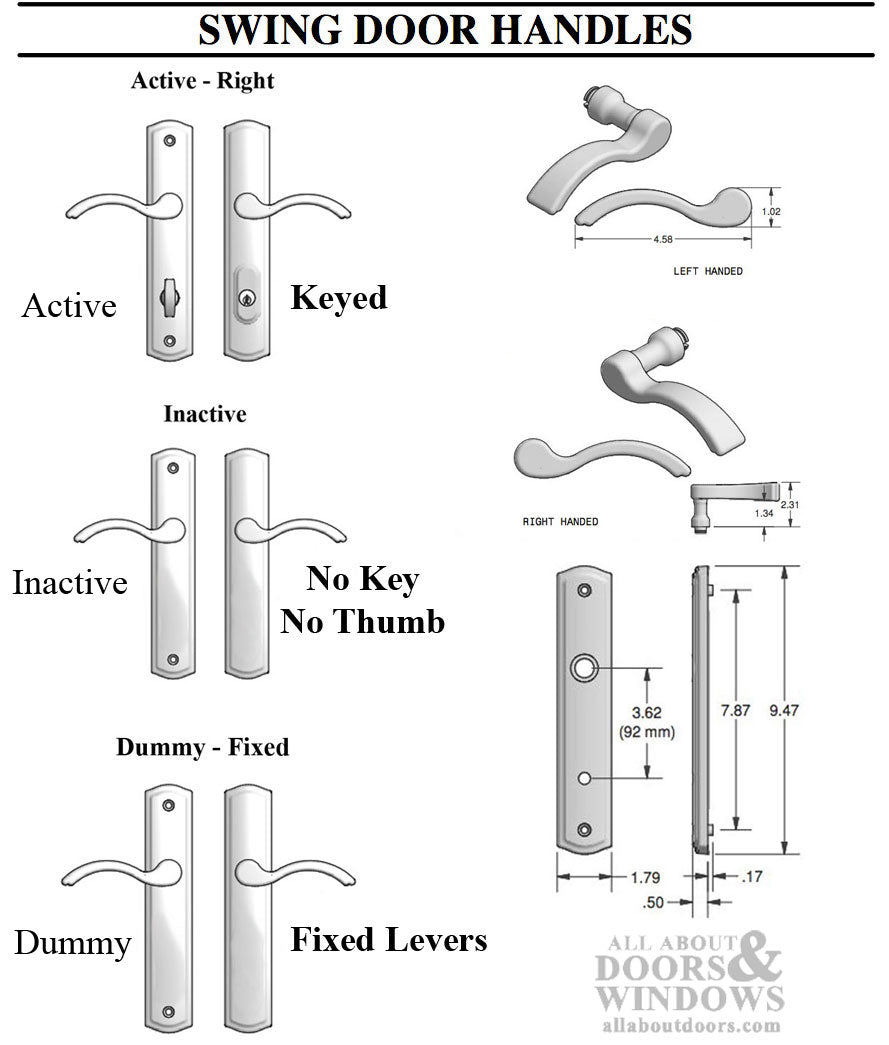

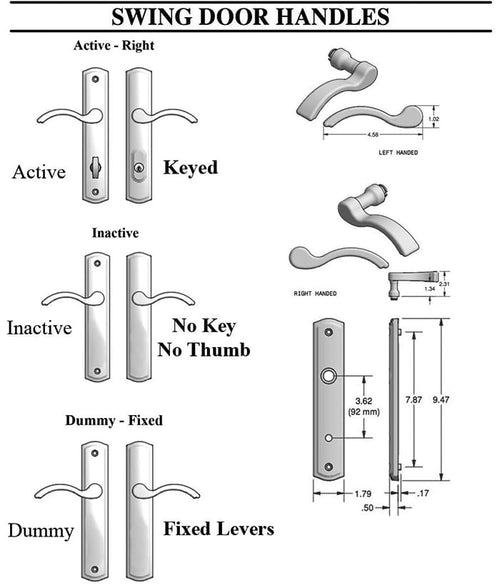

Actual Plate Width: 1.79 inches or 1-25/32 (45.5mm)
Actual Overall Plate Height: 9.47 inches or 9-15/32 (240.5mm)
Escutcheon Plate Screw hole spacing: 7.87 inches or 7-7/8 (199.9)
Handle Projection: 2.31 inches or 2-5/16 (58.6mm)
Handle Clearance: 1.34 inches or 1-11/32 (34mm)
Handle Length: 4.58 inches or 4-37/64 (116.3mm)
Handle to Cylinder: 3.62 inches or 3-5/8 (92mm)
Cylinder Type: None
Keyway: None
Thumb turn: None

We Stock Zinc - Satin Nickel and Oil Rubbed Bronze
Other finishes, special order 2-4 weeks, minimum quantities my apply
Special order finishes are more expensive and require price quote

Zinc Substrate Colors:
White
Tan
Dark Oil Rubbed Bronze
Brass
Satin Nickel

PVD Finishes/Brass Substrate Colors:
Dark Oil Rubbed Bronze PVD
PVD Polished Brass
PVD Satin Nickel

PVD is a high performance finish that resists tarnishing and discoloration.
