Amesbury 800C Dummy Handle Set Multipoint Lock Trim Zinc Choose Finish
Use the arrows or swipe left to view all images for this product
Amesbury 800C Dummy Handle Set Multipoint Lock Trim Zinc Choose Finish
Part Number: $112.48 to $190.96Amesbury 800C Dummy Handle Set Multipoint Lock Trim Zinc Choose Finish
IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time. Call the office for availability prior to placing your order.
Amesbury non-keyed, fixed-handle hardware for dummy door in double door set with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks
Amesbury 800 C Regency series with straight lever and slight arched top escutcheon plate.

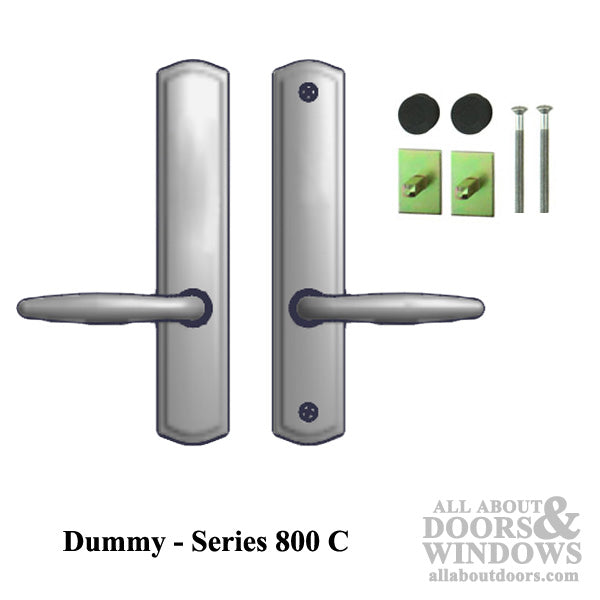

Application: Dummy Handleset with No Key or Thumb-turn; Handles Don't Move
(Can be used alongside key above handle or key below handle active handleset applications)
Handed: No (Doesn't matter what side of the door the handle is on)
Base Material: Zinc Substrate
Door Thickness: 1-3/4 Inch

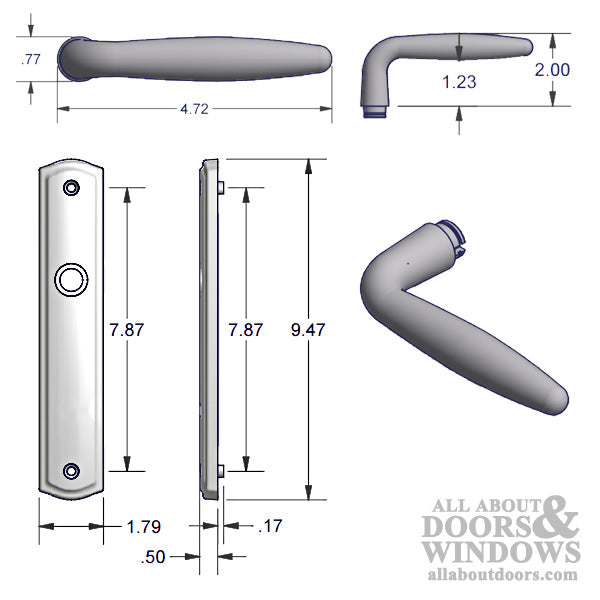

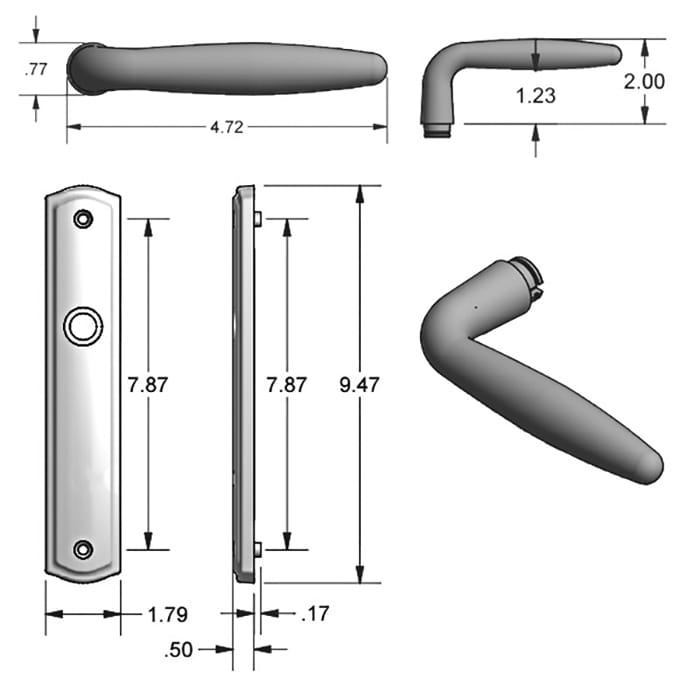

Escutcheon Plate: C Style - Slight Arch Top
Actual Plate Width: 1.79 Inch
Actual Overall Plate Height: 9.47 Inch
Escutcheon Plate Screw Hole Spacing: 7.87 Inch or 7-7/8 Inch (199.9 mm)
Handle to Cylinder: 3.62 Inch or 3-5/8 Inch (92 mm)
Handle Projection: 1.23 Inch
Handle Clearance: 2.00 Inch
Handle Length: 4.72 Inch

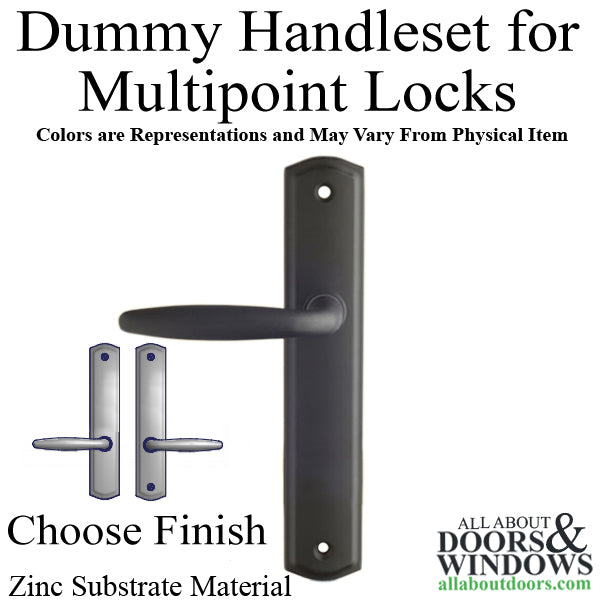

Colors / Finishes: Satin Nickel PVD, Vision Tan, Pebble, Dark Oil Rubbed Bronze
*PVD is a high performance finish that resists tarnishing and discoloration; recommended for coastal areas
See additional information tab for other functions handle sets and notes.

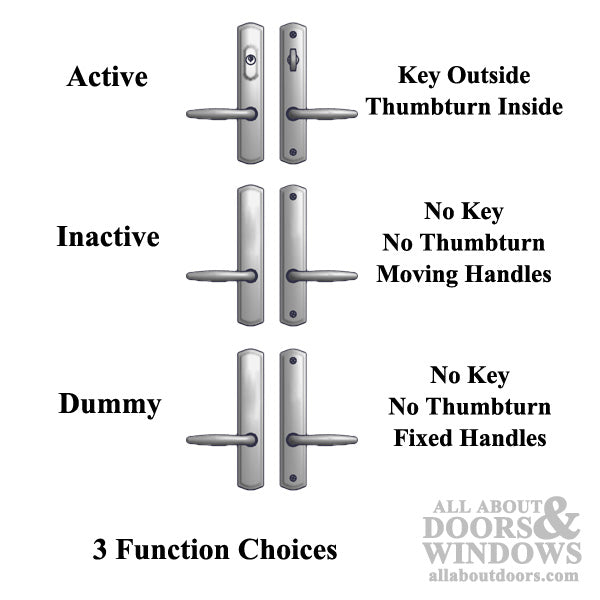

Other Available Functions (Can be used for key above handle or key below handle applications):
Active - Keyed Outside, Thumbturn Inside
Inactive / Passive - No Key, No Thumbturn, Moving Handles
How to Order:
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy
Same Handleset, Different Materials/Functions:
Dummy Handleset in Solid Brass: 395222B
Active Handleset in Zinc: 395220Z
Active Handleset in Solid Brass: 395220B
Inactive Handleset in Zinc: 395221Z
Inactive Handleset in Solid Brass: 395221B
