Dyad Operator, Rear Mount, 5 inch hole spacing, 10-7/8 Reach, LH
Use the arrows or swipe left to view all images for this product
Dyad Operator, Rear Mount, 5 inch hole spacing, 10-7/8 Reach, LH

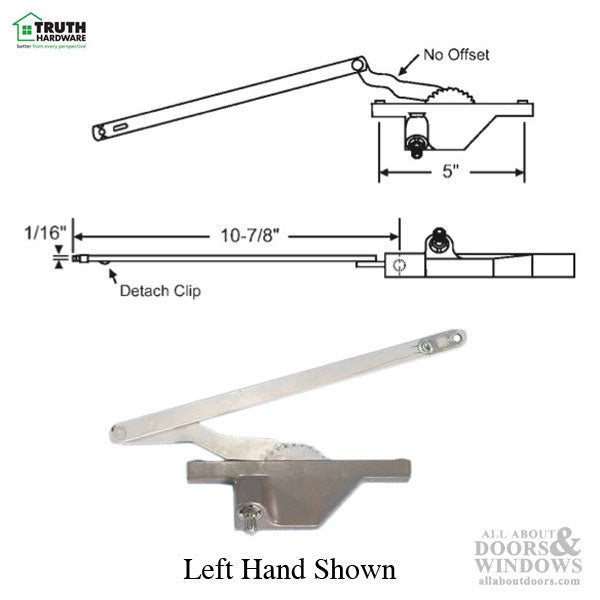

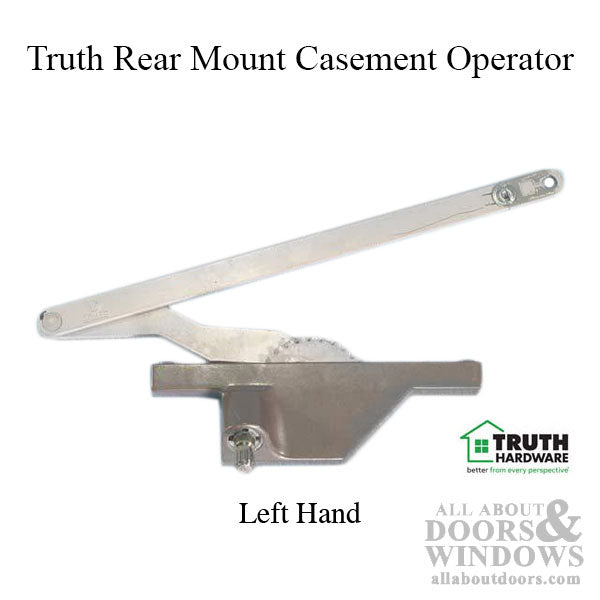

Part Number: $49.95Truth rear mount casement operator for Left hand window

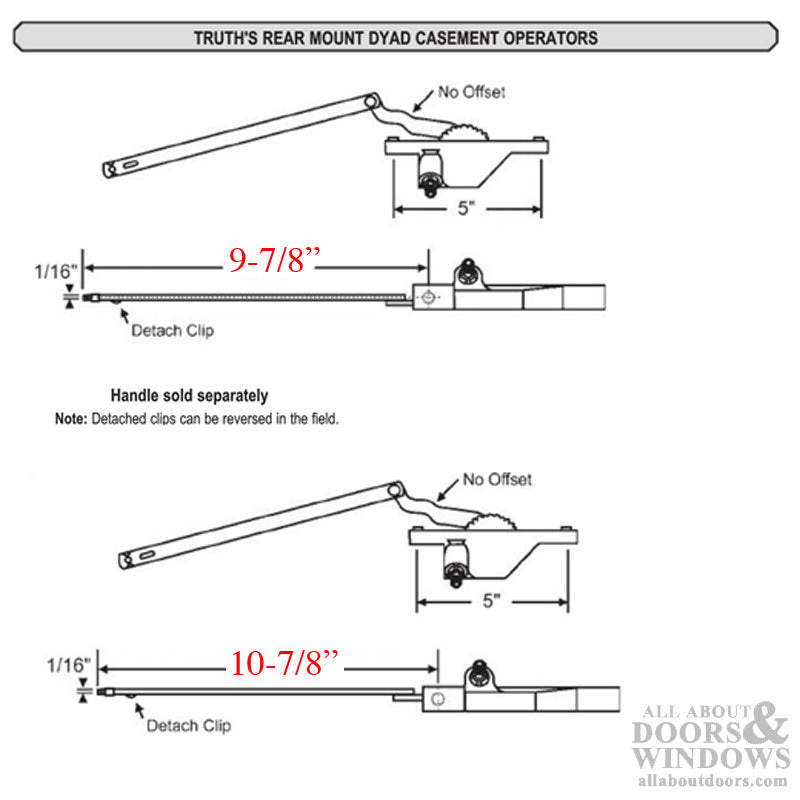

Screw Hole Spacing: 5 inch.
Long Arm: 8-3/4 inch (Truth 30616, from center of pivot pin to center of hole).
Short arm: Extends 3-7/8 inch.
Overall extended length is 10-7/8 inches
Color/Finish: Bronze or White
Priced and sold each.
Related Hardware:

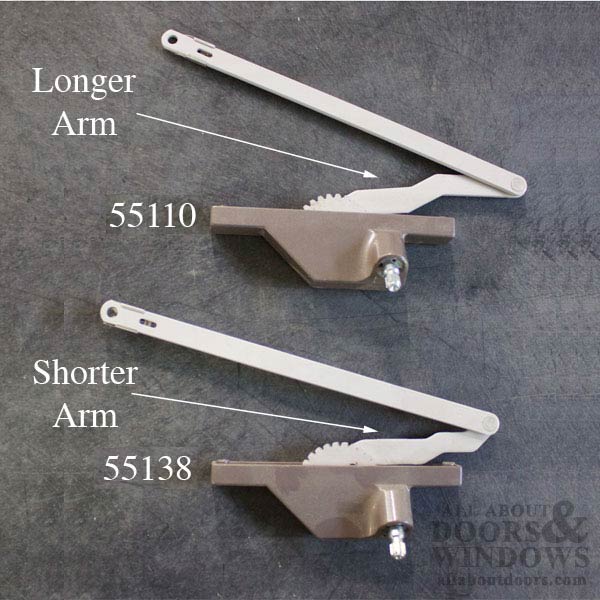

55110 - 10-7/8 inch Arm, Right Hand
55111 - 10-7/8 inch Arm , Left Hand
Note: 55110 & 55111 will not Replace the Acorn Operator.
Acorn has Shorter arm that extends 3-1/8.
Truth rear mount casement operator for Left hand window
Screw Hole Spacing: 5 inch.Long Arm: 8-3/4 inch (Truth 30616, from center of pivot pin to center of hole).Short arm: Extends 3-7/8 inch. Overall extended length is 10-7/8 inchesColor/Finish: Bronze or WhitePriced and sold each.
Related Hardware:55110 - 10-7/8 inch Arm, Right Hand55111 - 10-7/8 inch Arm , Left HandNote: 55110 & 55111 will not Replace the Acorn Operator. Acorn has Shorter arm that extends 3-1/8.
