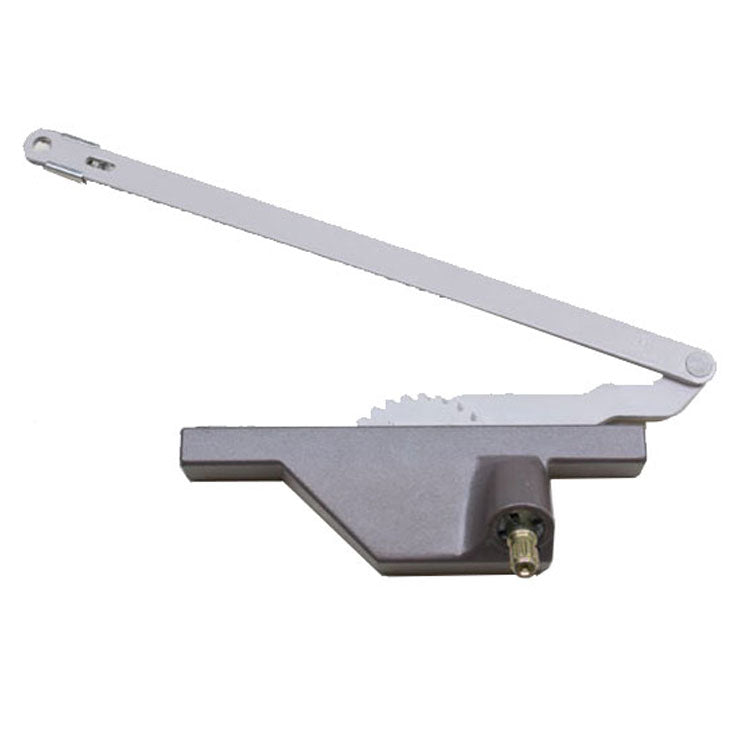

Truth rear mount casement operator for right hand window

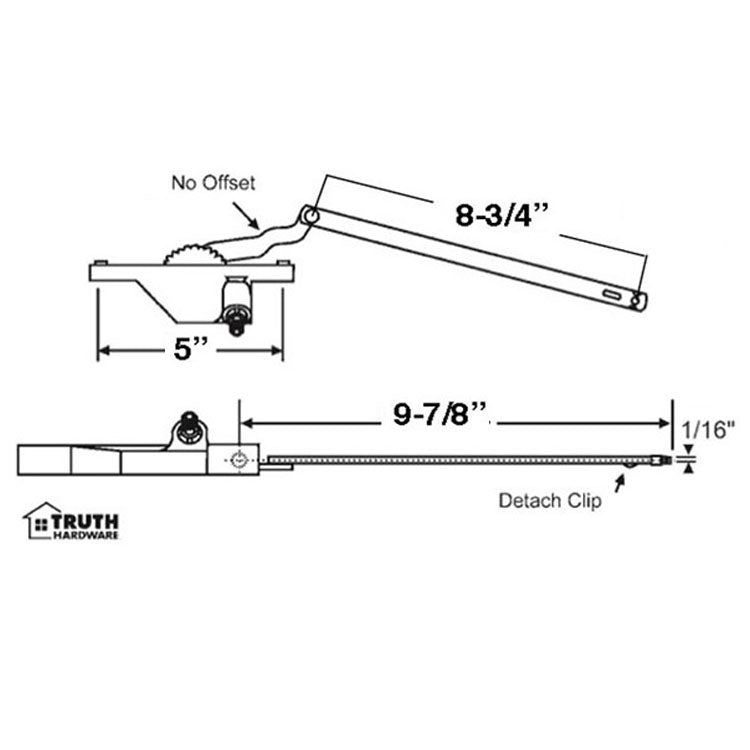

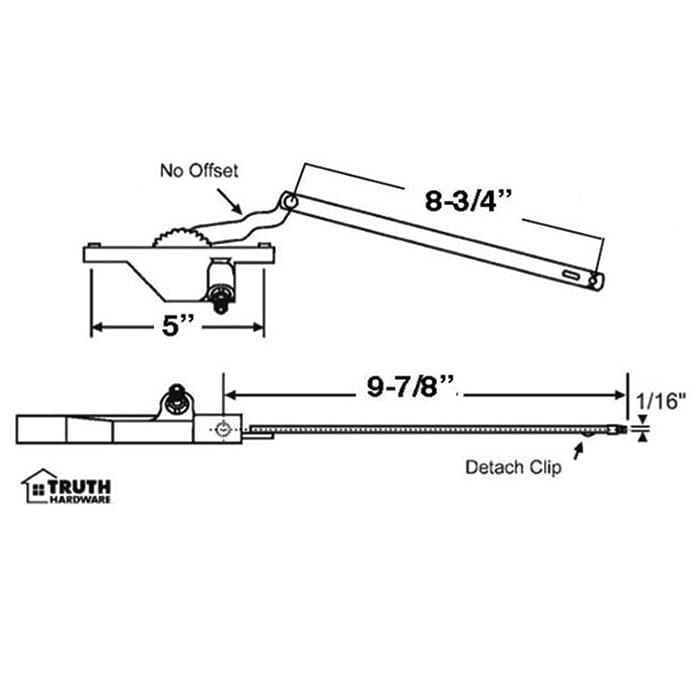

Screw Hole Spacing: 5 inch.
Long Arm: 8-3/4 inch (Truth 30616, from center of pivot pin to center of hole).
Short arm: Extends 3-7/8 inch.
Overall extended length is 9-7/8 inches
Color/Finish: Bronze or White
Priced and sold each.

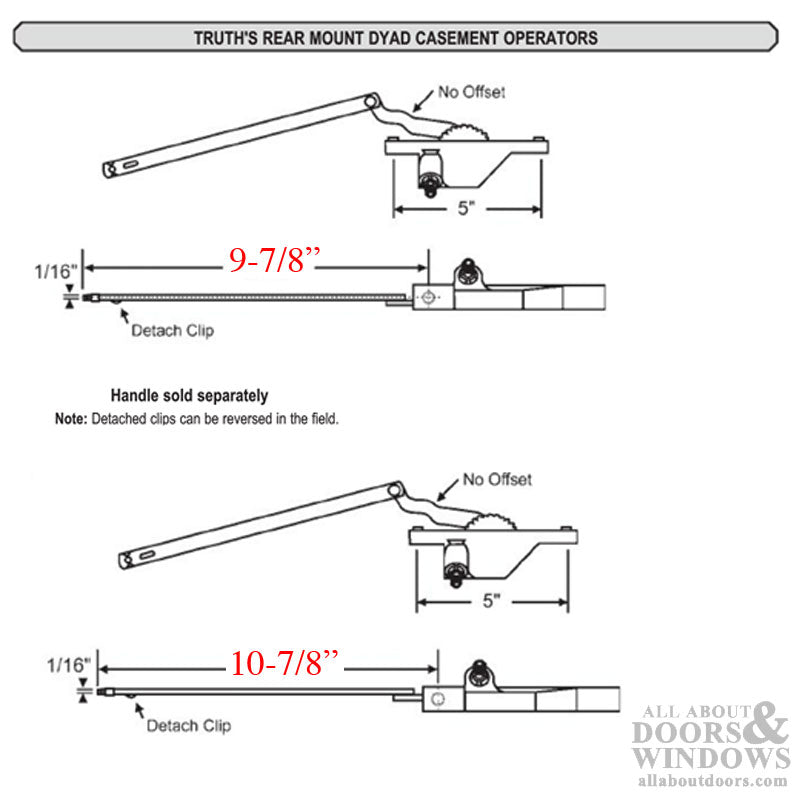

Related Hardware:

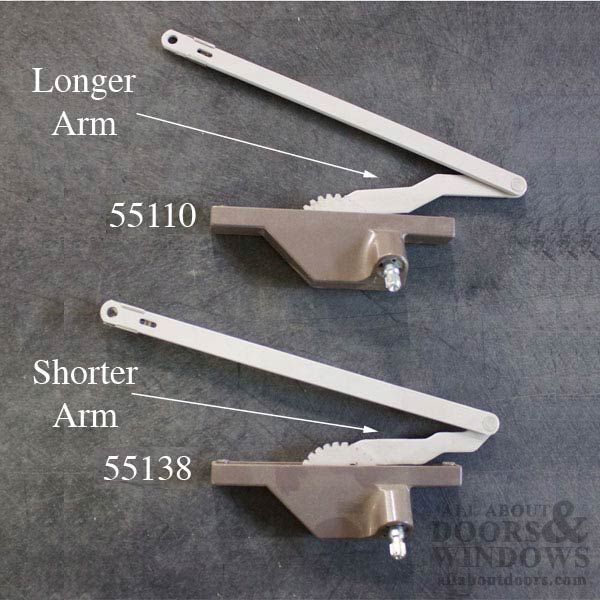

55110 - 10-7/8 inch Arm, Right Hand
55111 - 10-7/8 inch Arm , Left Hand
Note: 55110 & 55111 will not Replace the Acorn Operator.
Acorn has Shorter arm that extends 3-1/8
55138 - 9-7/8 inch Arm, Right Hand
55139 - 9-7/8 inch Arm , Left Hand
