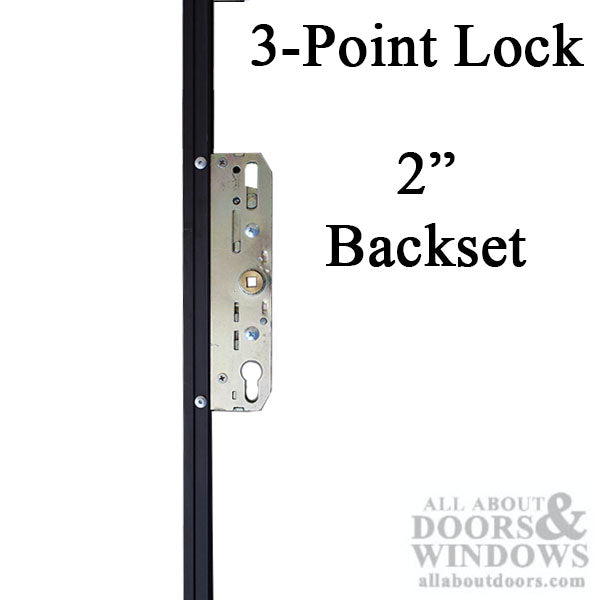

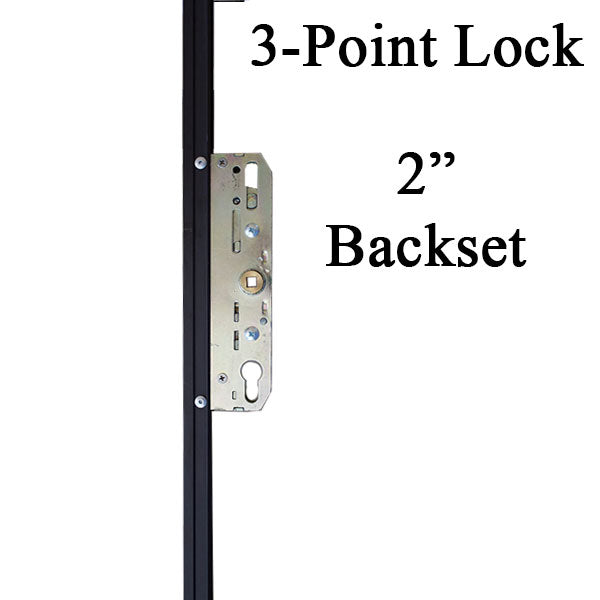

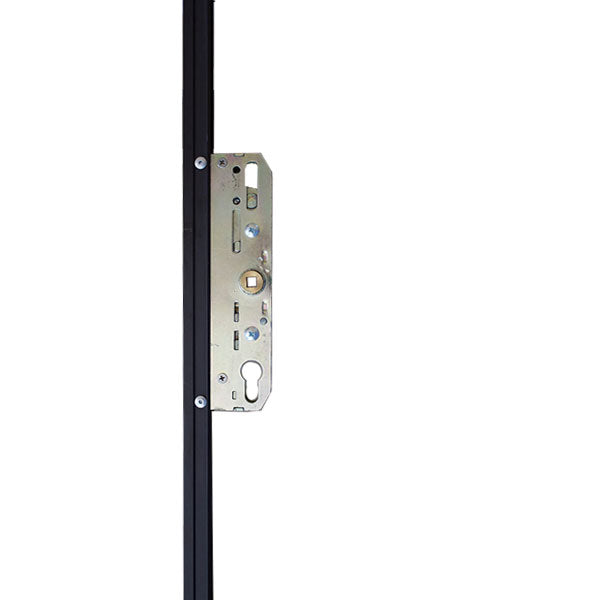

Easy Slide 3-Point Sliding Patio Door Lock, 2" Backset

Locking Points: 3

Bottom to 1st point: 7-1/8

Bottom to 2nd point: 45-5/8 ( centers at 38-1/2" )

Bottom to 3rd point: 70-1/8  ( centers at 24-7/16" )

Overall Length: 96 inches ( will cut down for shorter Doors )

Face Pate Width: 7/8 inch

Face Pate Depth: 7/8 inch

Handle Height: 38-3/4 inch

Backset: 2 inch (50mm) Measures 2-1/8 from front of faceplate)

Lockcase Length: 8 inches

Spindle Hub: 5/16 inch (8mm)

Cylinder Type: Euro Profile

Color / Finish: Oil Rubbed Bronze, US10B

Available Colors: Brass, Satin Chrome, Oil Rubbed Bronze

Contents: 3 point lock, 3 keepers and Installation Screws

Notes:

1. The bottom of faceplate is cut out for the track

2. This lock can be cut down for shorter doors, Maximum cut off about 22 inches for 74" tall door
