Similar to Schlage AL53PD Standard grade 2 commercial Lock at 1/2 the Price

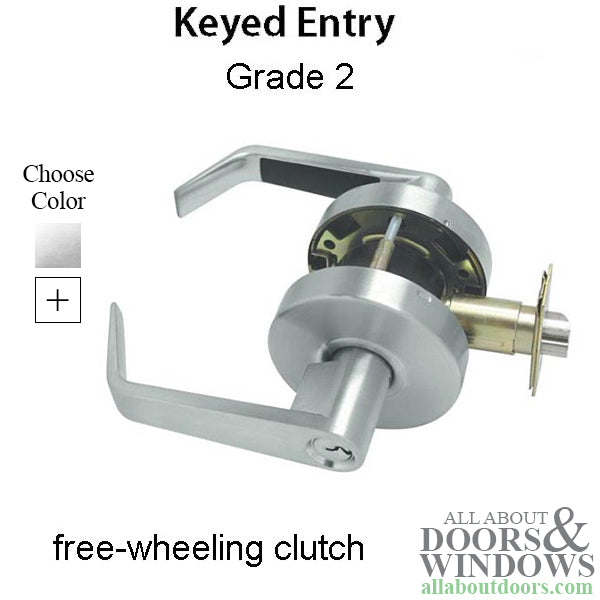

Free-Wheeling clutch, allows lever to move when locked
ADA compliant, Keyed Lever with Push button
Standard Commercial duty, Grade 2, Fire Rated Latch
Color / Finish Options:
Brushed/Satin Chrome US26D (626)
Oil Rubbed Bronze US10B
Conforms to Handicap Code ANSI A156.2 Series 4000

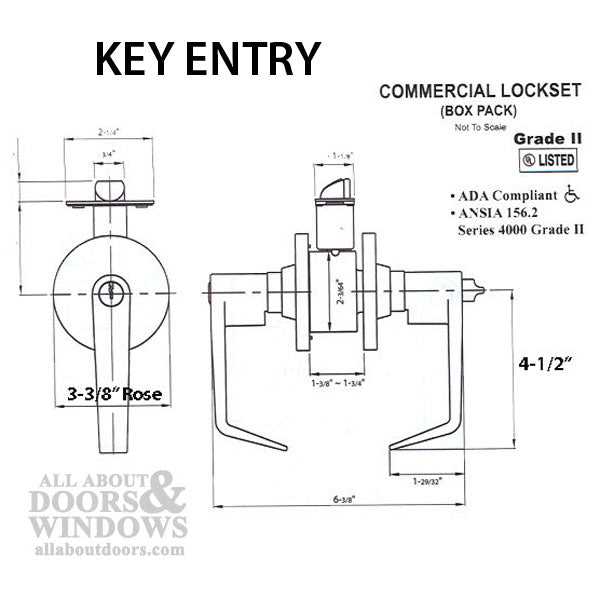

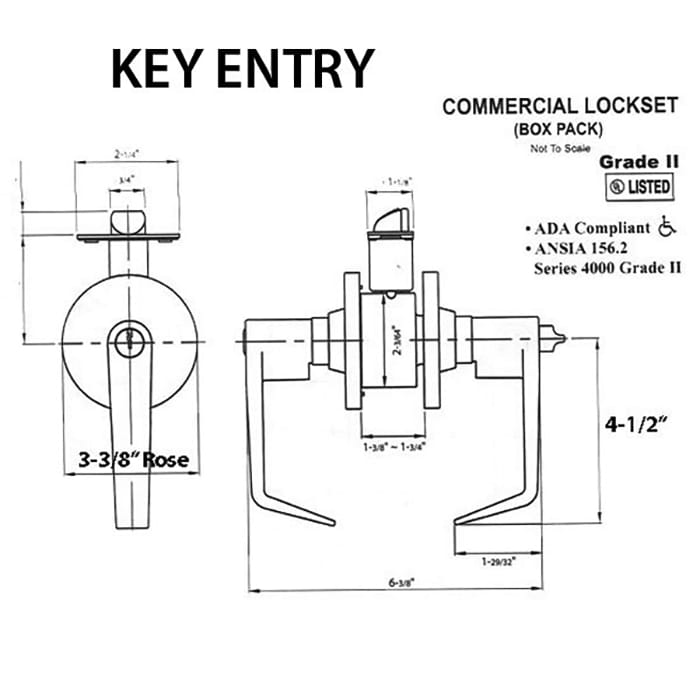

Fits doors from 1-3/8 to 1-3/4 thick
Rose: 3-3/8 inch Flat
Latch: 2-3/4 inch Deadlatch, 1-1/8 x 2-1/4 face
Furnished with ASA Satin Chrome strike plate
Non-handed
Easy installation
Suitable for new construction & retrofit
Concealed screw mount, One step rosette

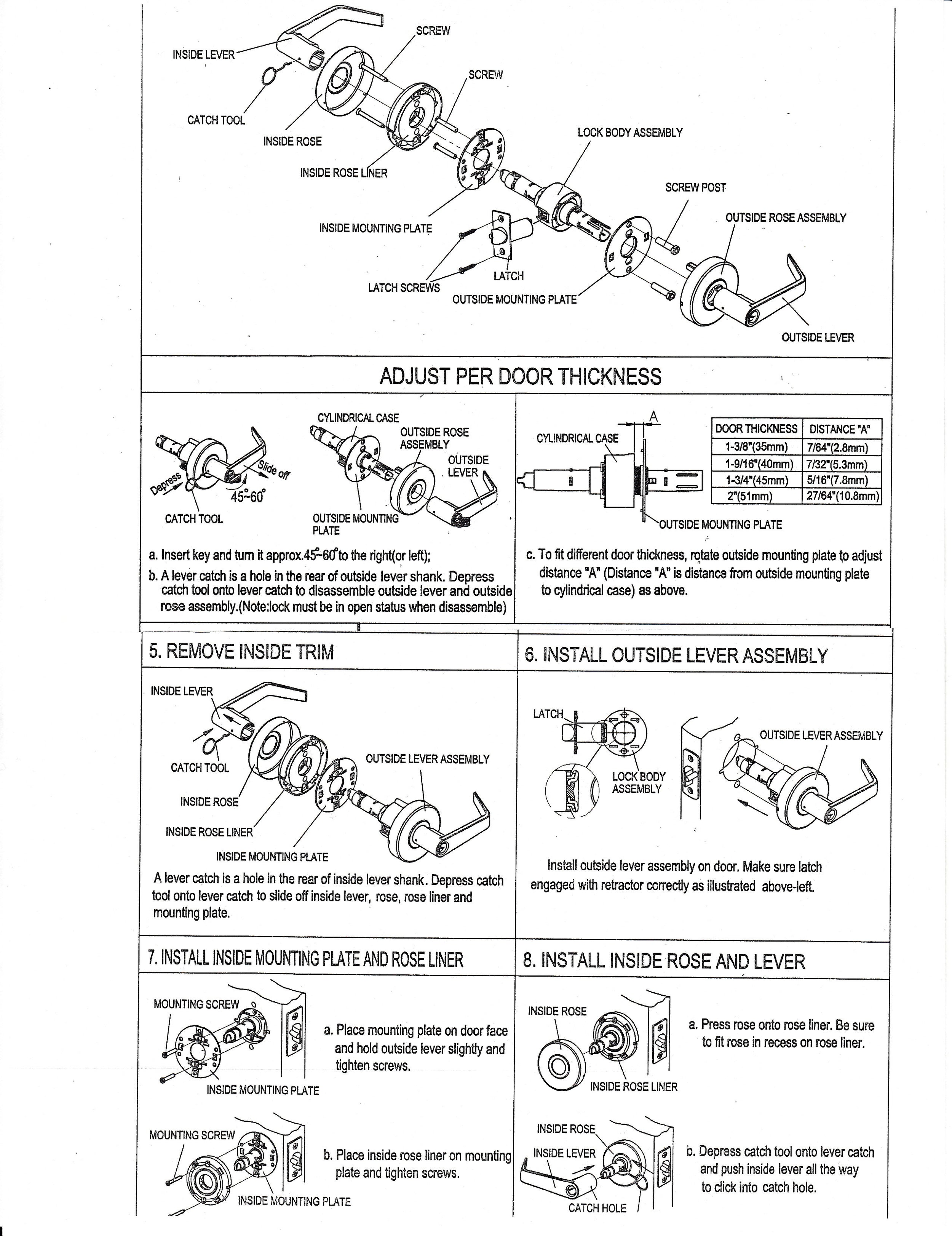

Instructions & Templates for new construction
Free-Wheeling clutch, allows lever to move when locked
ADA compliant, Keyed Lever with Push button
Standard Commercial duty, Grade 2, Fire Rated Latch
Color / Finish Options:
Brushed/Satin Chrome US26D (626)
Oil Rubbed Bronze US10B
Conforms to Handicap Code ANSI A156.2 Series 4000
Fits doors from 1-3/8 to 1-3/4 thick
Rose: 3-3/8 inch Flat
Latch: 2-3/4 inch Deadlatch, 1-1/8 x 2-1/4 face
Furnished with ASA Satin Chrome strike plate
Non-handed
Keying: Schlage 5 pin keyed (6 pin capable)
Fits the standard Commercial door preparation 2-3/4 backset, 2-1/8 boreEasy installation
Suitable for new construction & retrofit
Concealed screw mount, One step rosette
Instructions & Templates for new construction
