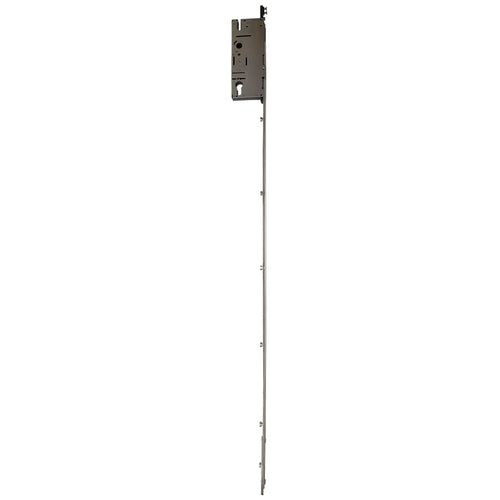

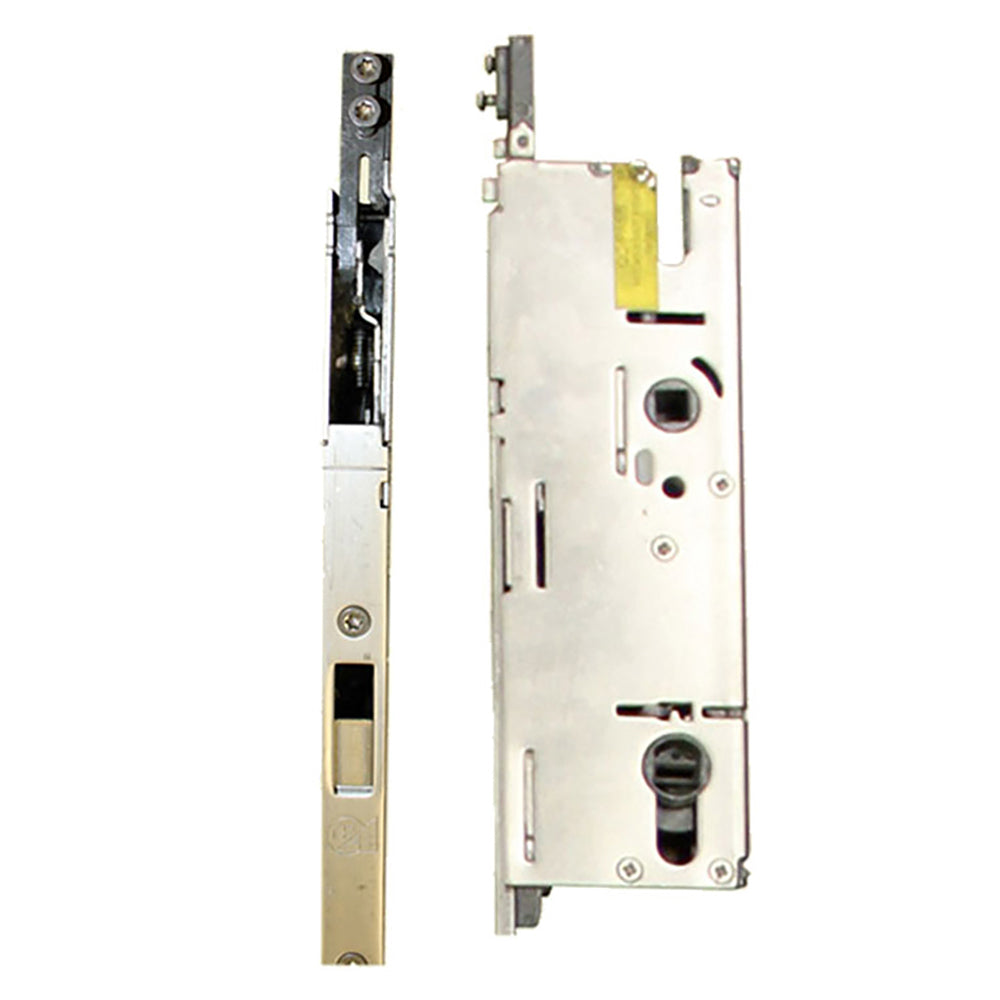

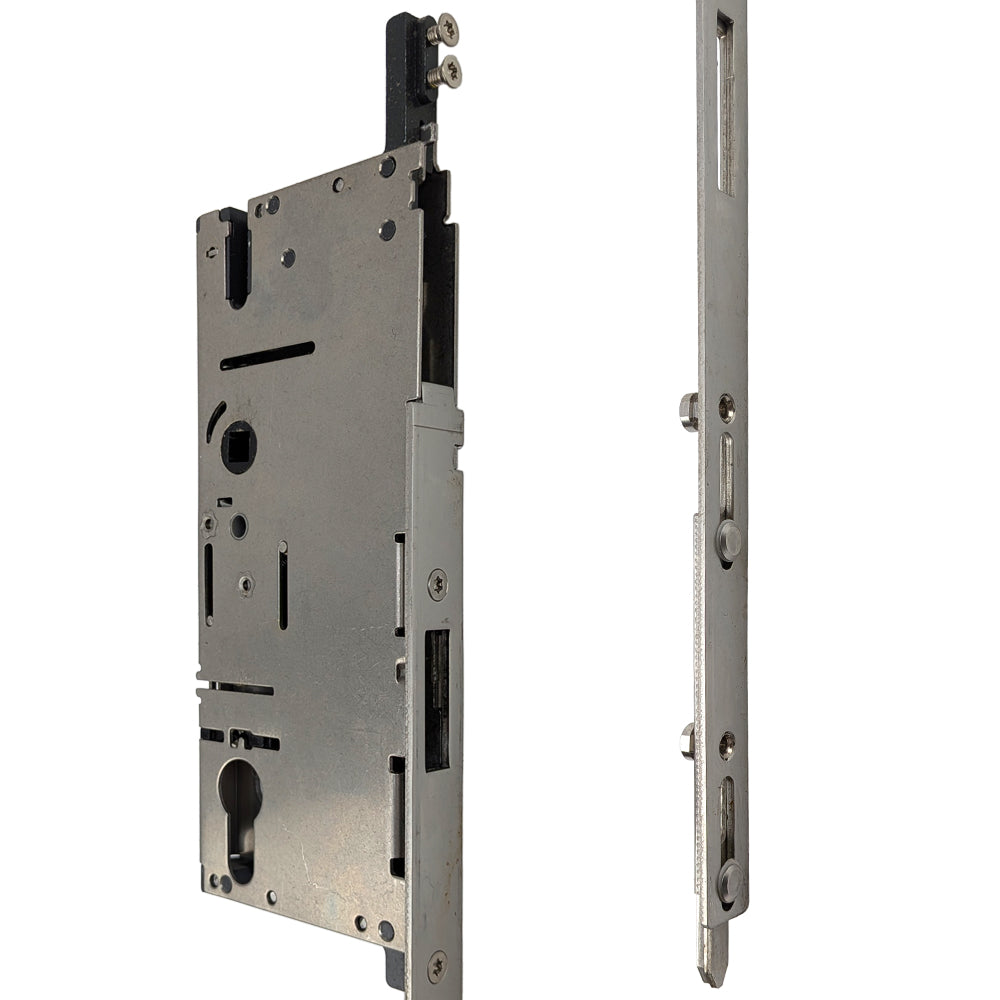

20mm Passive P2000 Gear 60/92 Lower Hook and Shootbolt Assembly - Winkhaus OML Replacement - European Version
Use the arrows or swipe left to view all images for this product
AmesburyTruth Premiere 2000
Passive Hook & Shootbolt Lower Gear - European Version
Custom passive gear for use with Winkhaus One Motion Lock replacements.
The passive gear can be used on doors with astragals or without (when the locks are face to face).
When the active door deadbolt extends into the passive gear box, it will restrict movement of the top and bottom shootbolts.
- Handle Height: 979.5 mm / 38.559 inches (New, Custom)
- Cylinder Type: Euro / Profile
- Backset: 60 mm (2-3/8 inches)
- PZ (Distance from center-of-spindle to center-of-cylinder): 92 mm (3-5/8 inches)
-

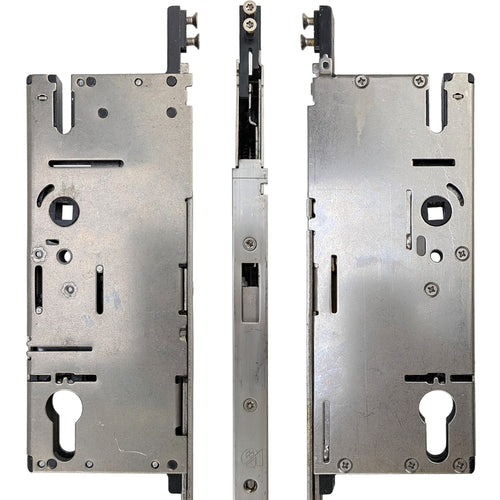

Markings:
- Front: LF2237
- Back: LD2037
- Faceplate Width: 20 mm
Top shootbolt and other extensions and accessories sold separately. See Related Items below.
Euro 2Winkhaus Replacement, Premiere P2000 Passive Shootbolt EURO Version, Lower GearThe passive gear and be used on doors with astragals or without. (when the locks are face to face)
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts.Handle Height: 38.559" New Custom
Backset: 60mm (2.38 inches)Stamped numbers on front of gear LF2237 - Back of gear LD2037CUSTOM PASSIVE GEAR - For use with Winkhaus ReplacementsBottom Gear with Shootbolt Attached
Top Shootbolt Sold separately0mm Passive 60/92 Gear w 1 hook Receptacle & Shootbolt
