K-17308-06-0-FG

Part Number:K-17308-06-0-FG Price: $93.05

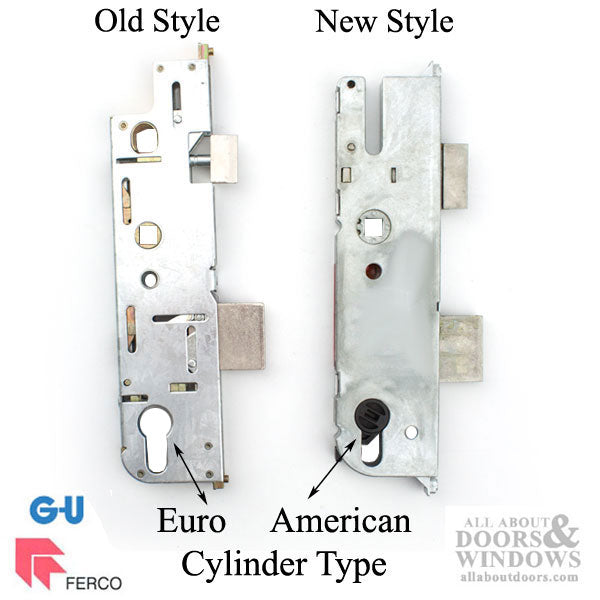

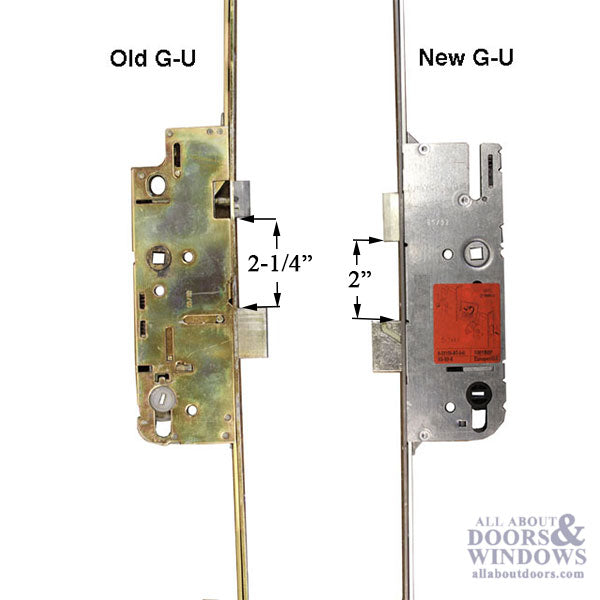

G-U new style lock case will NOT fit old style locks ( see additional images)
The lock case does NOT have a faceplate, it is the lock body only and you will have to reuse other components.

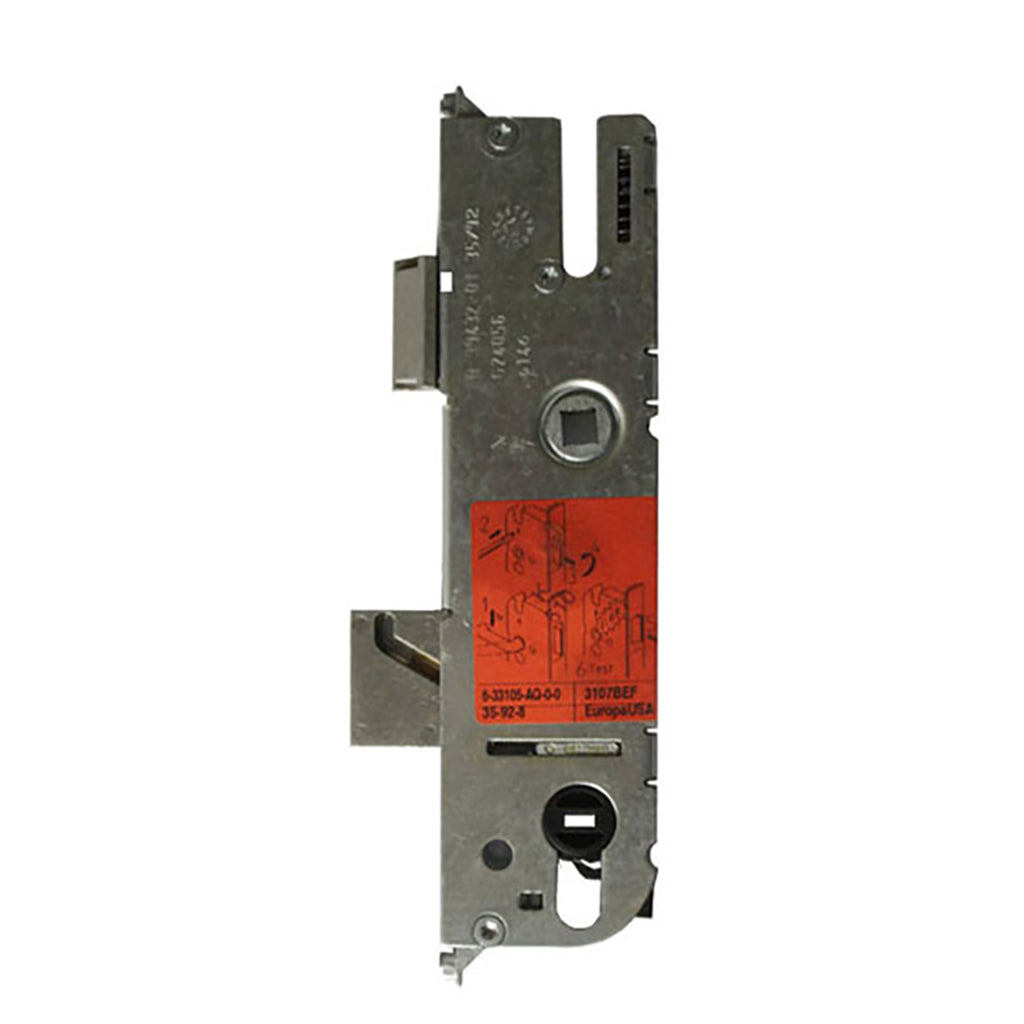

G-U / Ferco American version mortise lock body for Europa style multi point locks.

Faceplate: None
Function: Active
Backset: 1-9/16" (40 mm)
Handle to cylinder (PZ): 3-5/8 inches (92 mm)
Cylinder Type: American version, USA
Key Position: Key Below lever
Markings: 50/92 stamped in lock case

<p class="p1">G-U new style<span class="Apple-converted-space">  </span>lock case will NOT fit old style locks ( see additional images)<br />The lock case does NOT have a faceplate, it is the lock body only and you will have to reuse other components.<br />G-U / Ferco American version mortise lock body for Europa style multi point locks. <span class="Apple-converted-space"> </span></p><p class="p2">Faceplate: None<br />Function: Active<span class="Apple-converted-space"> </span><br />Backset:<span class="Apple-converted-space">  </span>1-9/16" (40 mm)<br />Handle to cylinder (PZ):<span class="Apple-converted-space">  </span>3-5/8 inches (92 mm)<br />Cylinder Type: American version, USA<br />Key Position:<span class="Apple-converted-space">  </span>Key Below lever<br />Markings: 50/92 stamped in lock case</p>
