G-U  Europa R2 multi-point Door Lock Gear.

(does not include top or bottom Shootbolt, see notes)

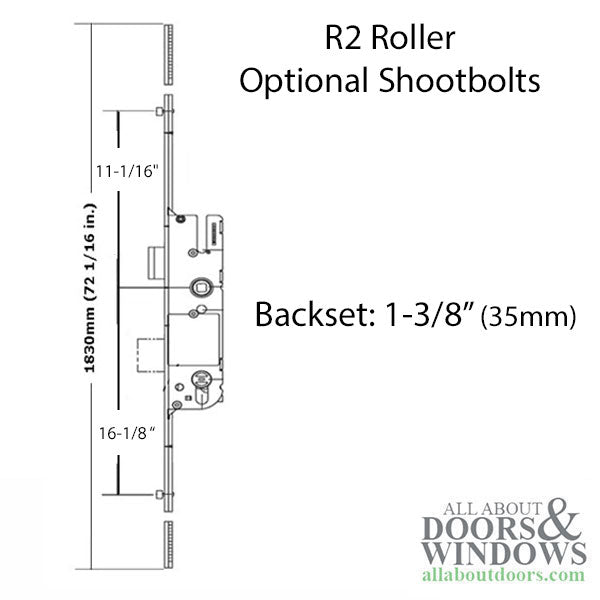

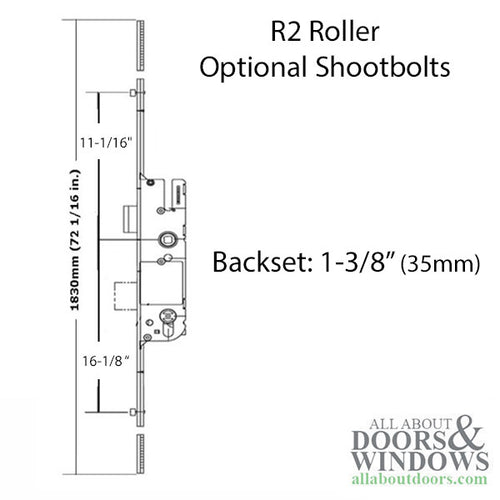

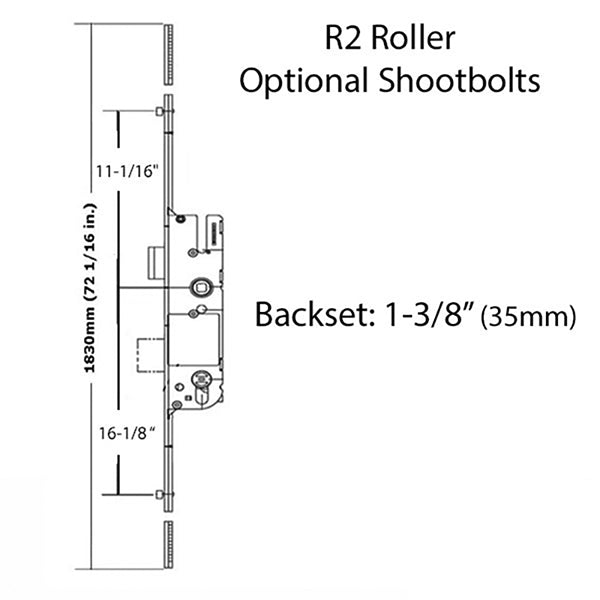

Top Roller @ 11-1/16" ( 280mm)

Bottom Roller @  15-3/8 (390mm)

Rollers C-C @   26.4" (670.5mm)

Series: Europa Door Lock Gear only

Handle to Cylinder Spacing: 3-5/8 inch (92mm)

Spindle Size: 8mm Square

Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.

Handle Position: Key below Handle (Europa)

Function: Shootbolt version, locks vertically at top and bottom of door panel.

(Shootbolts sold separately)

Backset:  1 3/8 inch (35mm)

Faceplate Width: 5/8 inch (16mm)

Faceplate Finish: Silver Ferguard

Handle Height: Normally used with 35 Inches (889mm) Handle Height

Note:  The Europa R2 and the Europa Inactive are the only locks in the GU offering that can achieve the 39” handle height with shoots at the bottom.  The Rhino, 6-33400, will have a handle height of 1014mm (40”) by adding a shoot at the bottom.

The R2 cams can be removed but the slot (where they travel) in the face plate will remain.  There is no cover for this slot.

Related GU Parts:

G-16790-05-0-1:  Extension, 500mm length - Silver

G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver

G-20415-00-01:  Bottom Shootbolt - Silver

9-34442-00-0-0: Brass Sleeve / Socket Strike - Brass

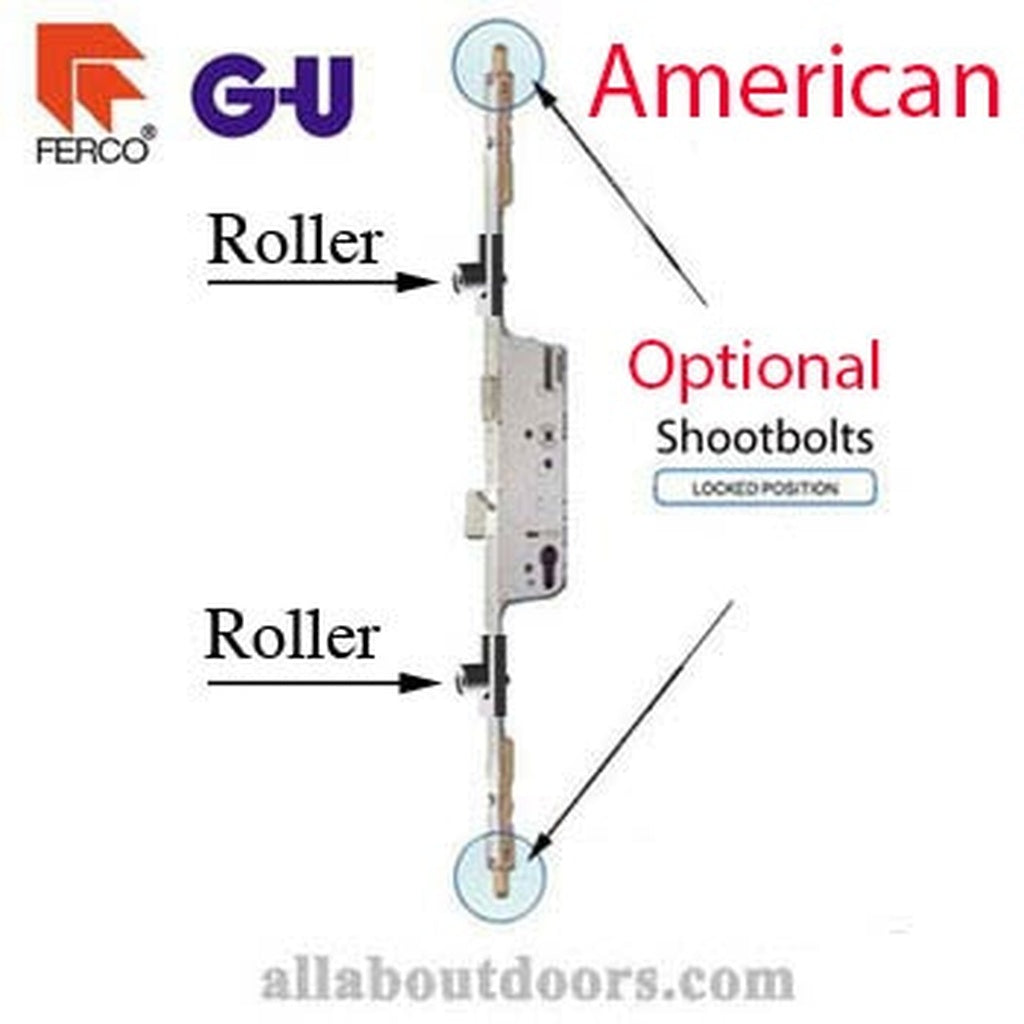

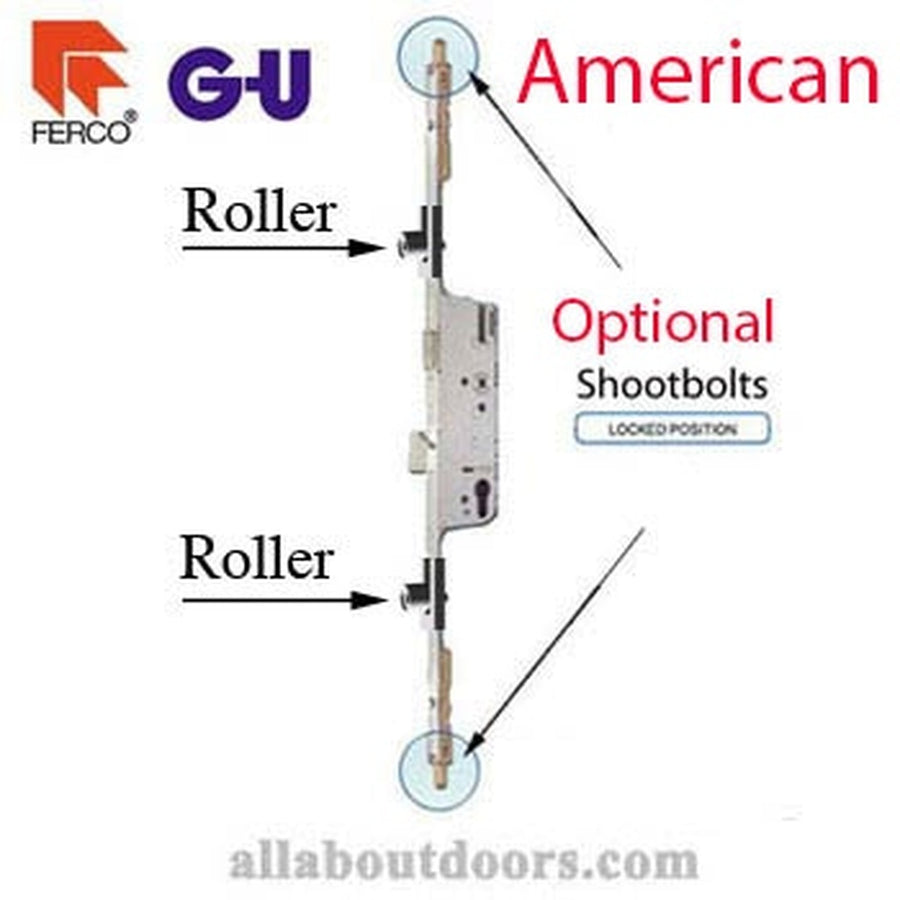

The Europa R2 multi-point door lock system, with its 5-point locking system features two adjustable rolling pins, top and bottom shoot, deadbolt, and latch, combines function and design flexibility for any application.

Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage “C” keyway systems.

Key Features:

• 5-point, height adjustable, locking system

• Two adjustable rolling pins, shoot bolts top and bottom, deadbolt and latch

• Extensions with additional rolling pin available for taller doors

• Lever controlled engaging and releasing of all locking points

• Locking by US-Cylinder system with a 90 degree turn of key or thumbturn

• Non-handed, latch easily reversible

• Heavy duty mortise construction with reinforced lever return spring system

• Available in standard finish

• Same hardware groove detail throughout our entire door lock program (router bits available)

To Identify a Multipoint Door Lock

1. Check for manufactures stamp on the lock strip

2. Measure the width of the lock strip

3. Measure the Backset

4. Measure the Center points

5. What locking types are on the strip? (Mushroom, Deadbolt, Hook, ect.)

6. How many of those locking types are on the strip?

7. What color is the lock? (Silver, Stainless Steel, ect.)

8. Is the door UPVC, Aluminium, Composite or Wood?
