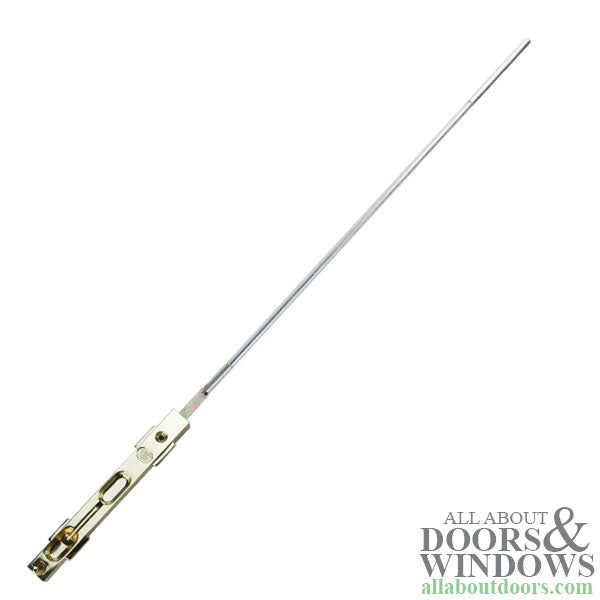

Flip Lever Extension Mortise Flush Bolt for Aluminum T-Astragal

Part Number: 362022-PB Price: $15.75
COLOR: - Polished Brass

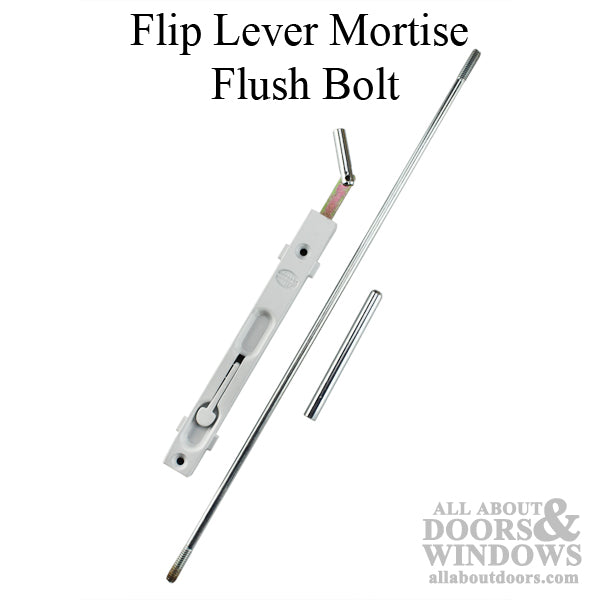

Flip Lever Mortise Flush Bolt with extended rod for Aluminum T-Astragal
Extension Flip bolt used with 14-1/2" threaded rod with 3-3/8 inch rod tip for taller doors

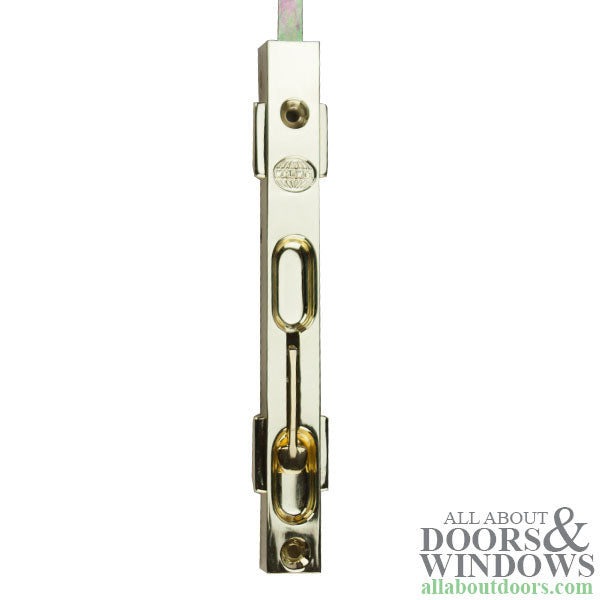

Housing Width: 3/4 inch
Housing Length: 6-3/8 inch
Housing Overall length 6-11/16 inch
Housing Face Width 11/16 inch
HousingWing Width 15/16 inch
HousingThickness 9/16 inch
Screw Hole Center 5-1/2 inch
Bolt Shape: Round
Threaded Rod Length: 14-1/2 inch
Extension Tip Length: 3-3/8 inch ( 5/16 Diameter)

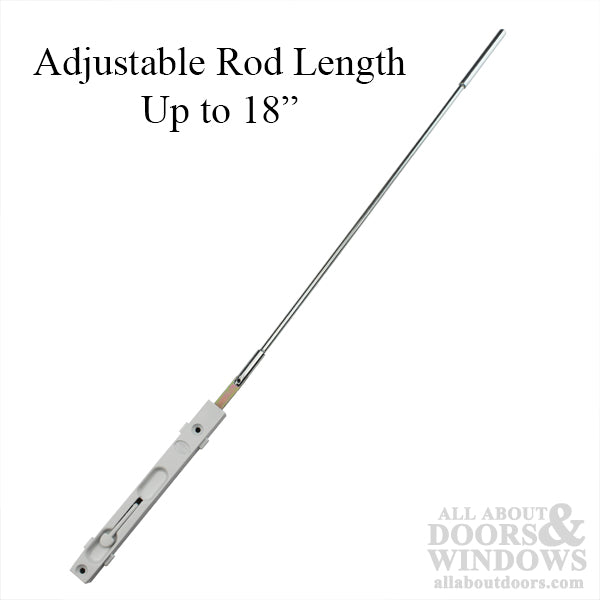

Rod length with Tip attached: 18 inches, Adjustable
Thread Size: 1/4-20
Strike Plate: 5/8 x 1-1/2 inch

Available in 5 finishes - Special Order, Minimum Quantities may apply
White, Primed USPC (painted) - in stock
Polished Brass US3
Antique Nickel US15A
Brushed Chrome US26D
Oil Rubbed Bronze ( painted ) US10CP
