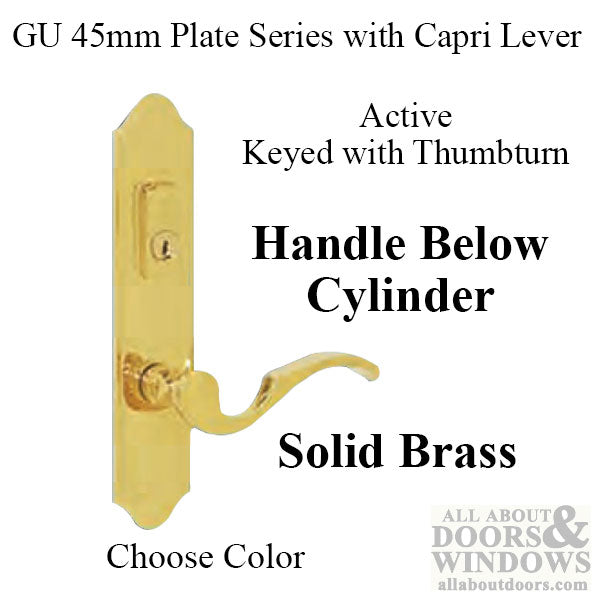

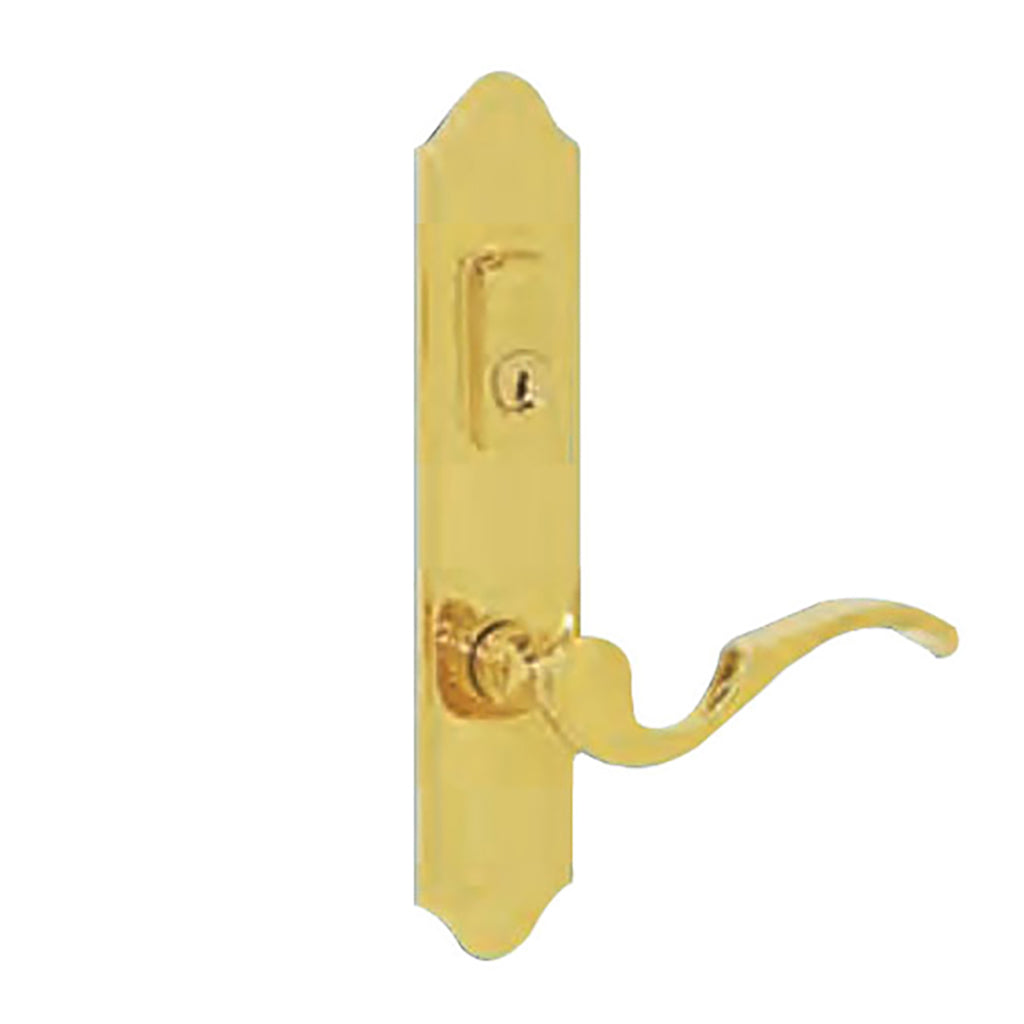

G-U Capri Handle & 45mm Plate, Active, Keyed with Thumbturn (Handle Below Cylinder) Choose Color
Use the arrows or swipe left to view all images for this product
G-U Capri Handle & 45mm Plate, Active, Keyed with Thumbturn (Handle Below Cylinder) Choose Color
Part Number: $256.88 to $471.91Note: Ferco Architectural Hardware warranty does not cover corrosion. This information is especially useful if you live in a coastal area where exterior corrosion is accelerated.
This is the G-U Capri Collection of Multipoint Lock Hardware Trim in 7 colors.
It replaces the Belissimo 4100 and 5100 series collection.
The Capri series can be used with these G-U manufactured mortise locks:
Tripact, Europa, Cremona, and Secury Automatic door gears
Please note that these handle sets are special order and may take 2 to 4 weeks for delivery.
No returns, refunds or exchanges.

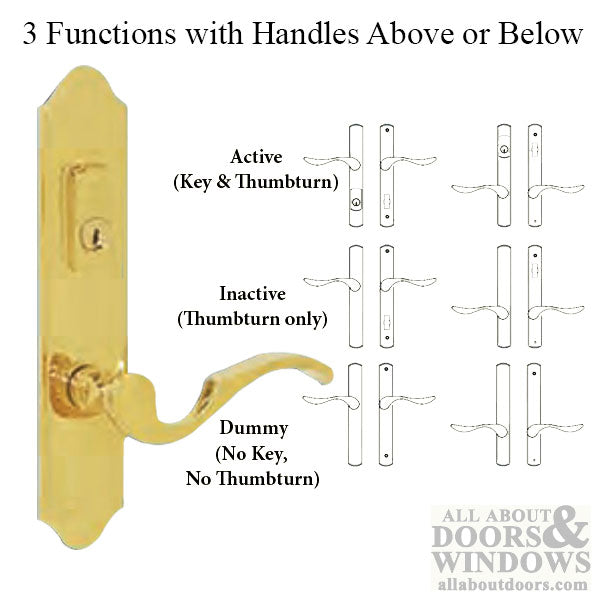

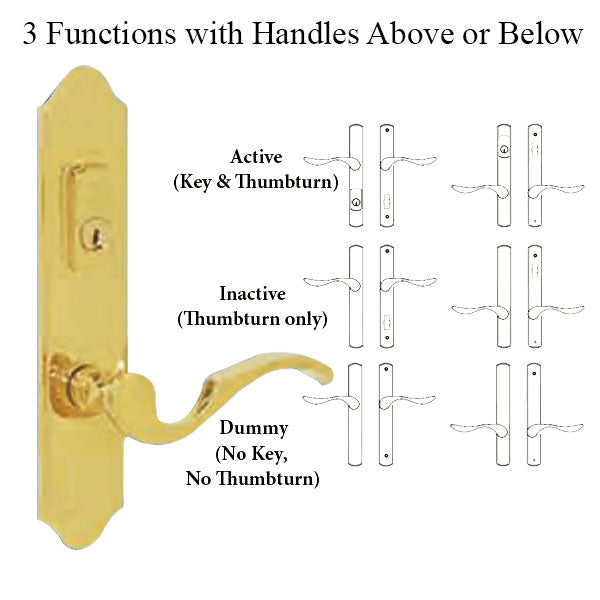

Function: Active - Keyed American Cylinder with inside Thumb turn
Plate Series: G-U 45mm

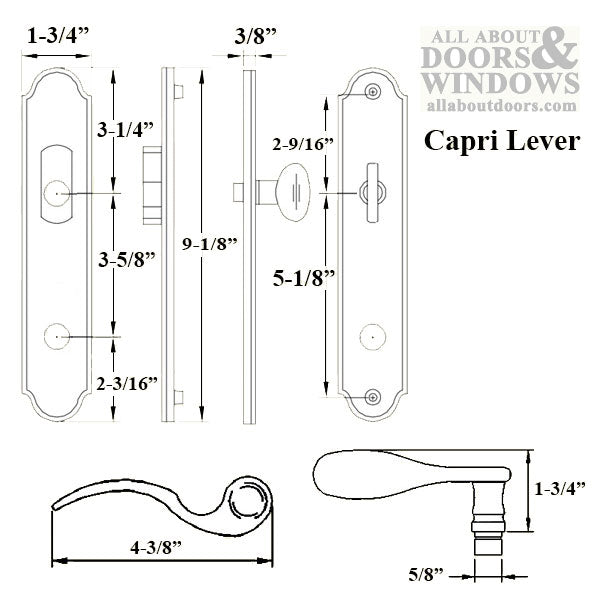

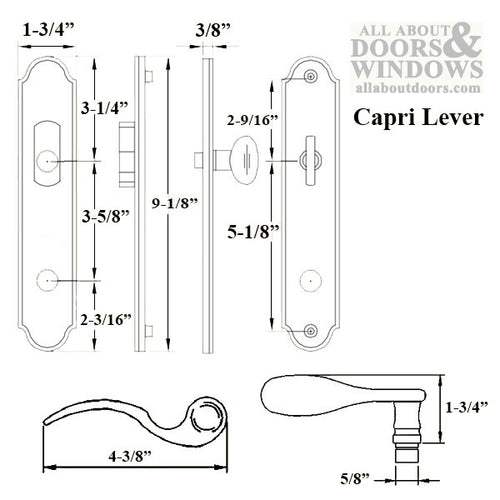

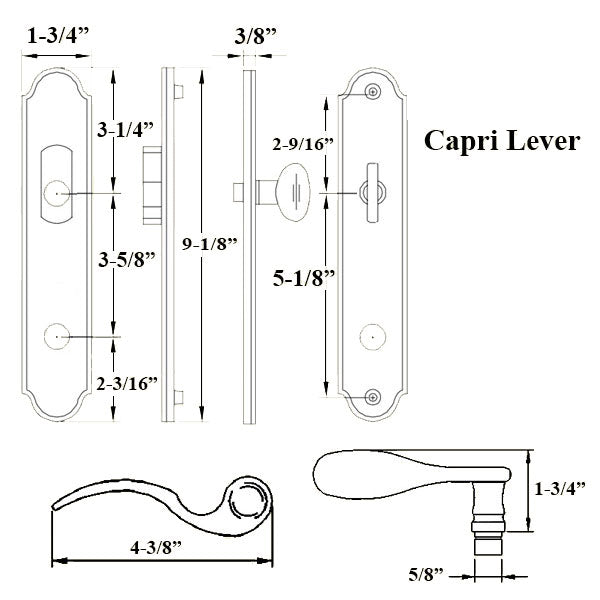

Escutcheon Plate Height: 9 inches
Escutcheon Plate Width: 1-3/4 inches
Screw Hole Center: 7-11/16 inches
Handle Style: Capri
Handle PZ: 3-5/8 inch (92 mm)
Cylinder Version: American
Keyway: Schlage 5 Pin SC1
Key/Thumb Turn Position: Above
Material: Brass
Handing: Non-Handed

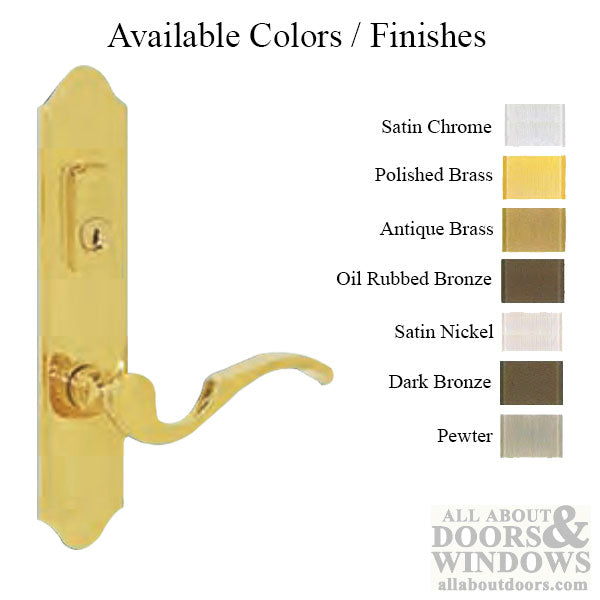

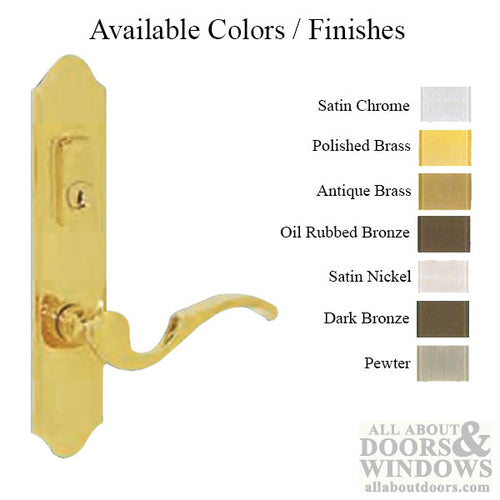

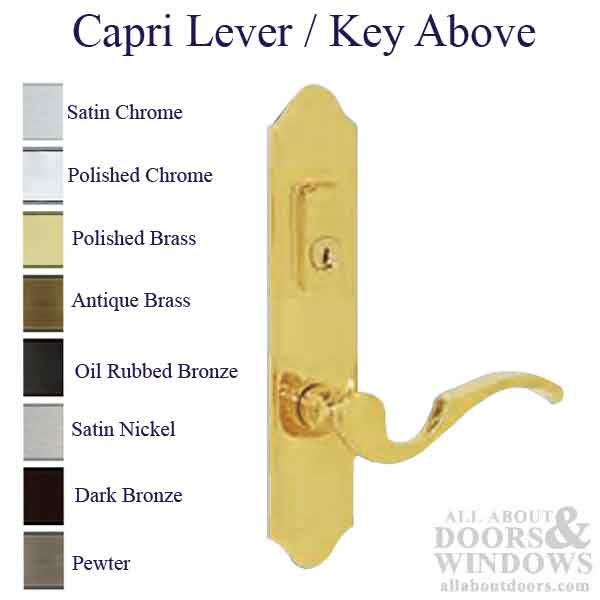

Color/Finish: (Choose from Drop-Down)
Brushed/Satin Chrome
Polished Brass
Antique Brass
Oil Rubbed Bronze
Brushed/Satin Nickel
Dark Bronze
Pewter (Antique Nickel)

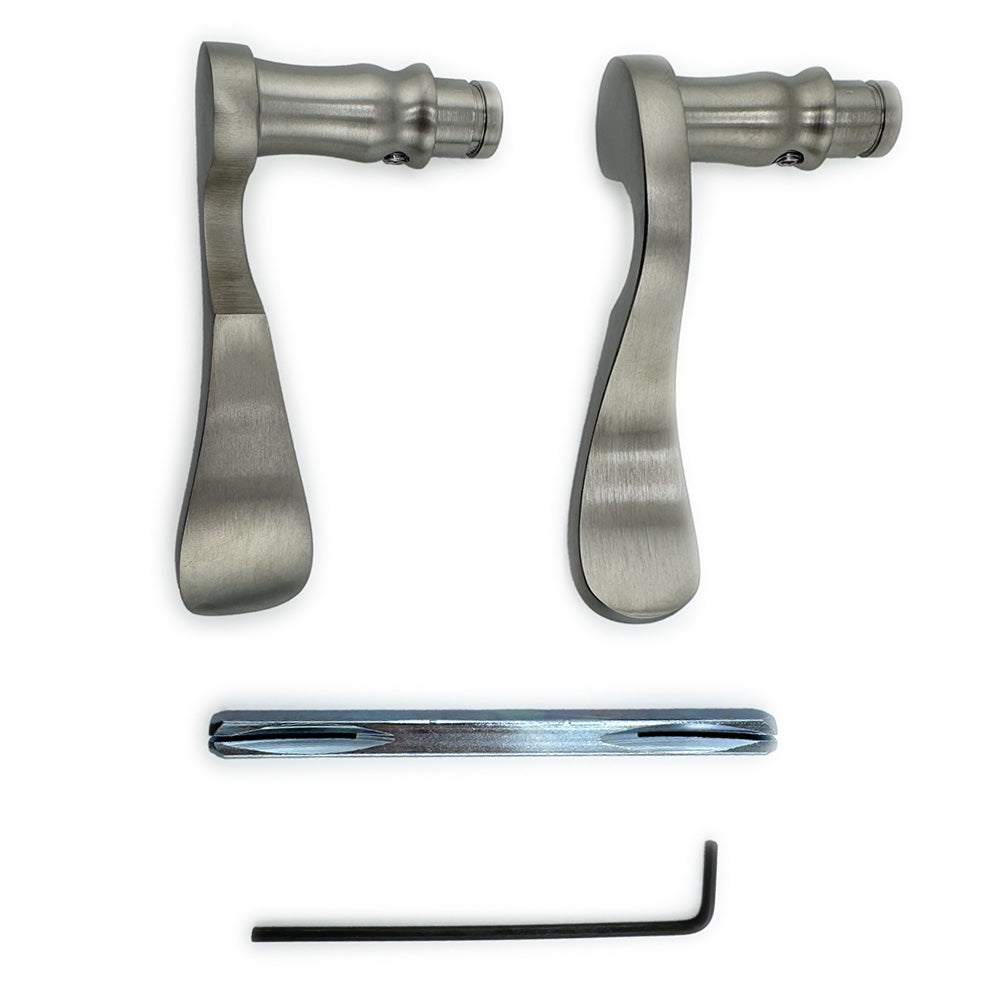

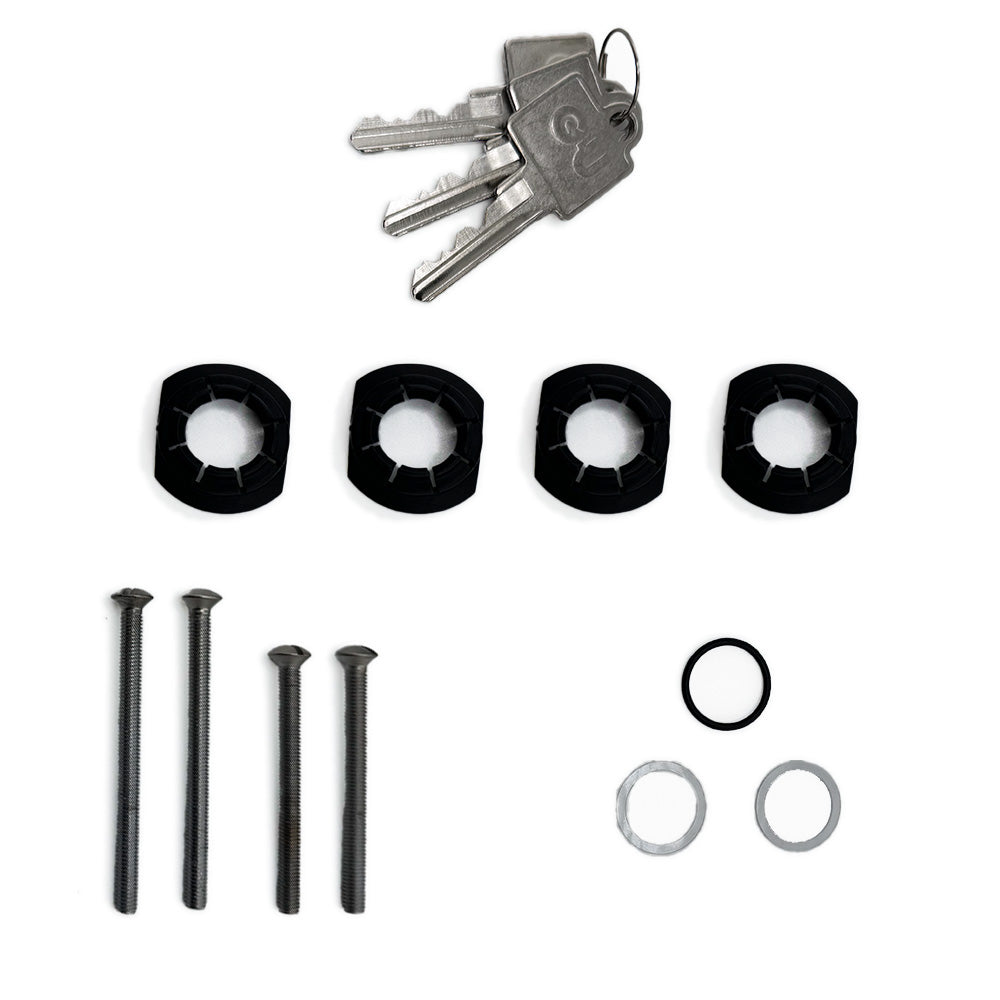

Kit Includes:
- 3 keys
- 1 interior lever with set screw
- 1 exterior lever with set screw
- 1 gasket
- 1 spindle (8mm x 8mm x 120mm)
- 1 Allen wrench (size?)

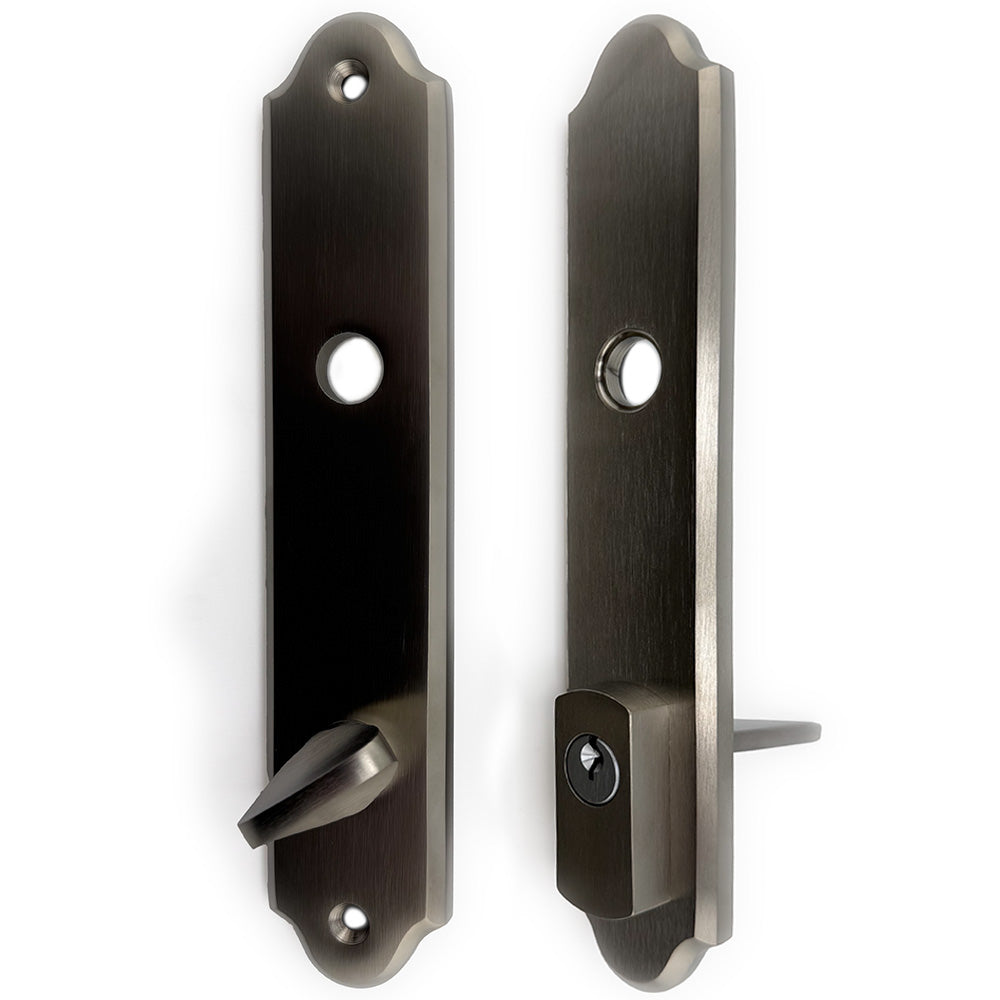

- 1 backplate with tailpiece
- 1 escutcheon plate with thumbturn
- 4 installation screws (2x M5x55mm for 1-¾" doors, 2x M5x65mm for 2-¼" doors)
- 3 installation o-rings/washers
- 4 black plastic snap rings
Priced and sold as a package.
