G-U Cremona Europa Active Multipoint Lock With Shootbolts

Part Number:4990332-KIT Price: $581.72 to $780.89
Backset
Color

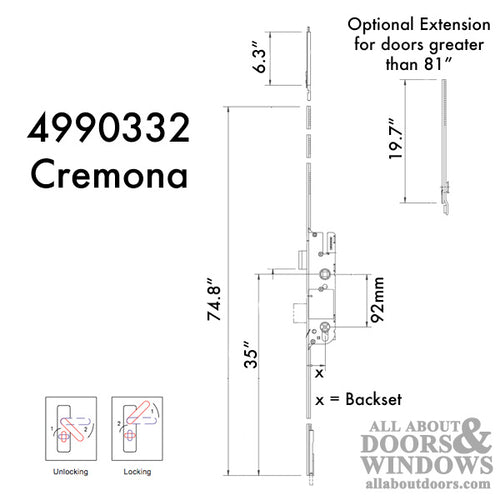

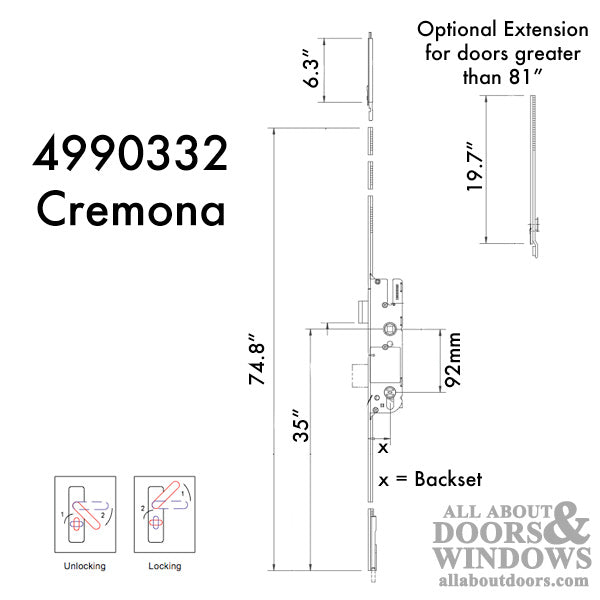

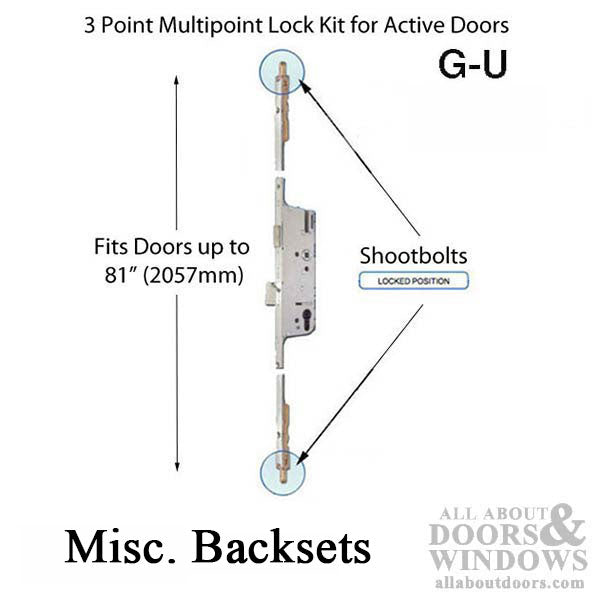

Active 3-point lock with shootbolt on top and bottom for doors measuring 6 feet 8 inches.
Available Backsets ( drop-down menu): 30mm, 35mm, 40mm, 45mm, 50mm, 55mm

This lock is croppable and can be installed in doors over 81 inches with the use of an extension, which is not sold in this kit but can be purchased separately.

Handle Height: 35 inches
Backset Options: 30mm, 35mm, 40mm, 45mm, 50mm, 55mm
Standard Backsets: 1-3/8 Inch (35mm), 1-3/4 inch (45mm), 2 inch ( 50mm)
Special Backsets: 30 mm, 40 mm, 55 mm
Handle to Cylinder PZ: 3-5/8 inch (92 mm)
Overall Length: fits doors up to 81.1 inches ( extension needed for taller doors)
Faceplate Width: 5/8 inch (16 mm)
Finish (Choose from drop-down menu): Standard Ferguard silver, Optional; stainless steel or black
Lock Body Style: Europa- Key Below Handle
Cylinder: American version ( cylinder not included )

Cremona 4990332 3-point lock kit includes:

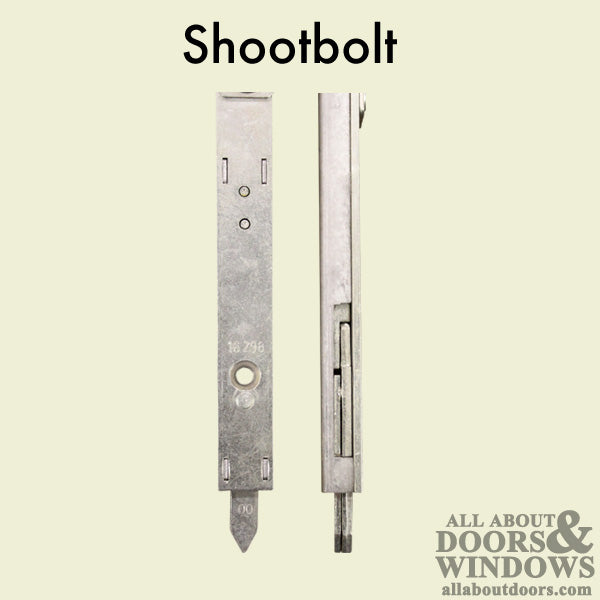

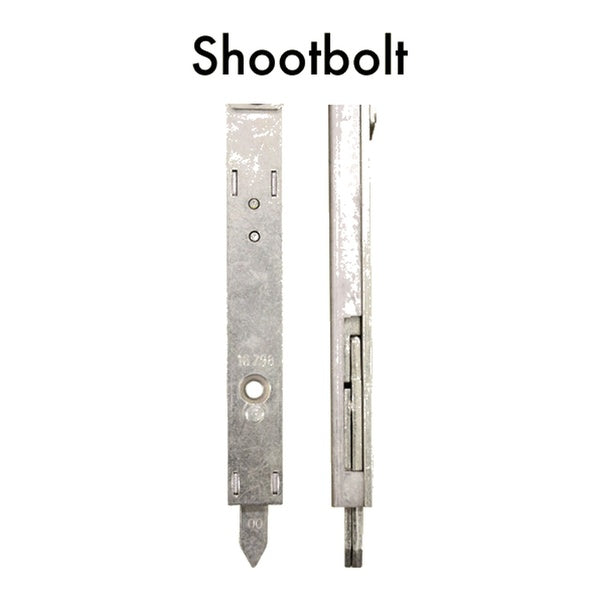

Cremona Active Gear with bottom Shoot-bolt attached ( Backset from drop down )
G-16798-00-0-1 - Reversing Gear (Top Shootbolt Extension)
9-29525-00-0-0 - Socket Strikes, brass (2)
E-12562-30-00-2 - Stainless Steel Screws (13)
Priced and sold as a package.

Optional Parts:
G-16790-05-0 - 19.68'' (500mm) Top Extensions for doors greater than 81 inches

Additional Information:

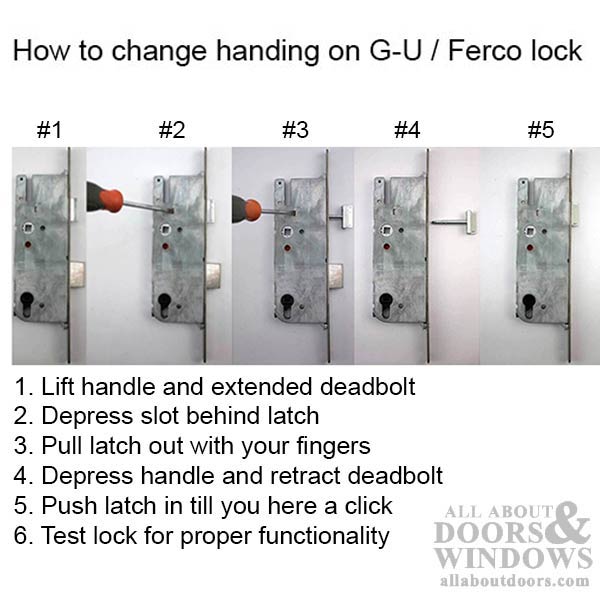

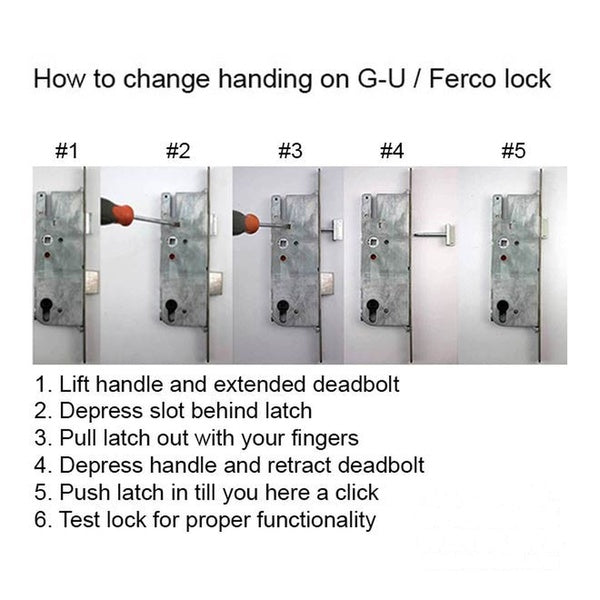

How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Cremona Multipoint Lock



Note: Replacement doors may be different heights. If so, minor modifications may be required. If  your door panel height is 77-1/4 inch; remove 4 inches from new one when in unlocked position. Replacement latch and deadbolt will be in slightly different position. File the bottom of the latch holes 1/8 inch, on both latch and deadbolt.
