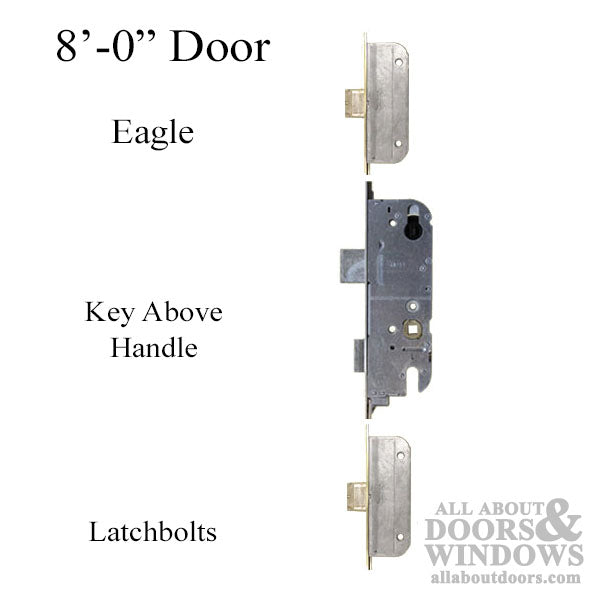

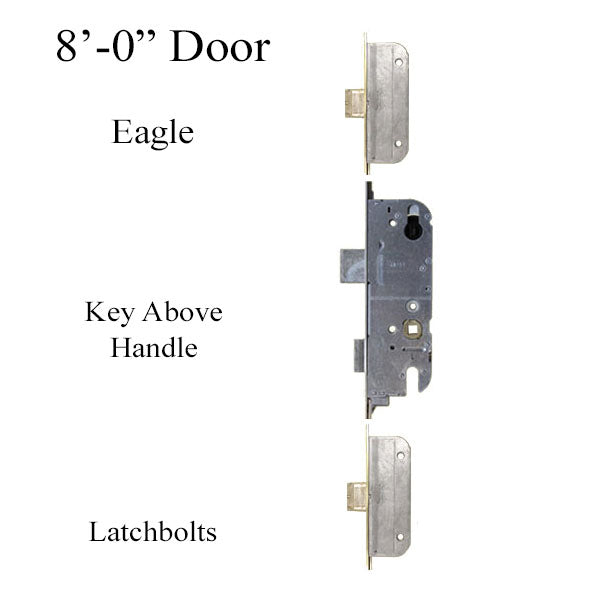

G-U Eagle New Breed Multipoint Lock Kit with Latchbolts 8-0 Door
Part Number: Price: $504.93G-U active 3-point lock with latch bolts on top and bottom
Eagle multipoint lock has an automatic function- upper and lower latch bolts automatically engage when the door is closed.
Lock Body Style: New Breed - Key Above Handle
Backset: 1-3/4 inch (45mm)
Faceplate Width: 5/8 inch (16mm)

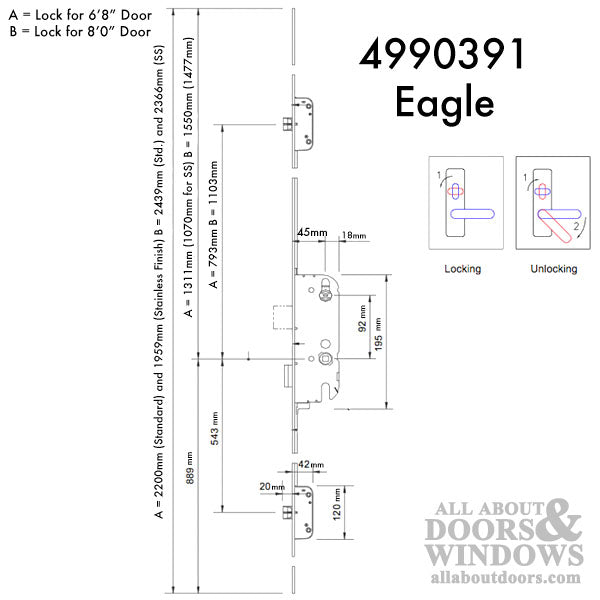

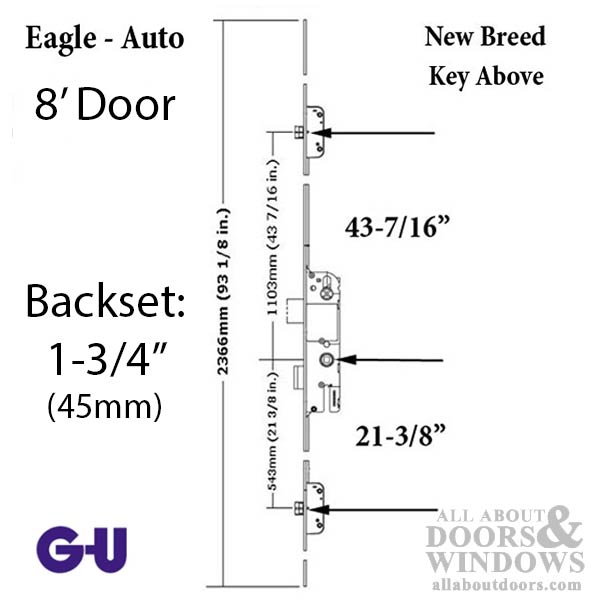

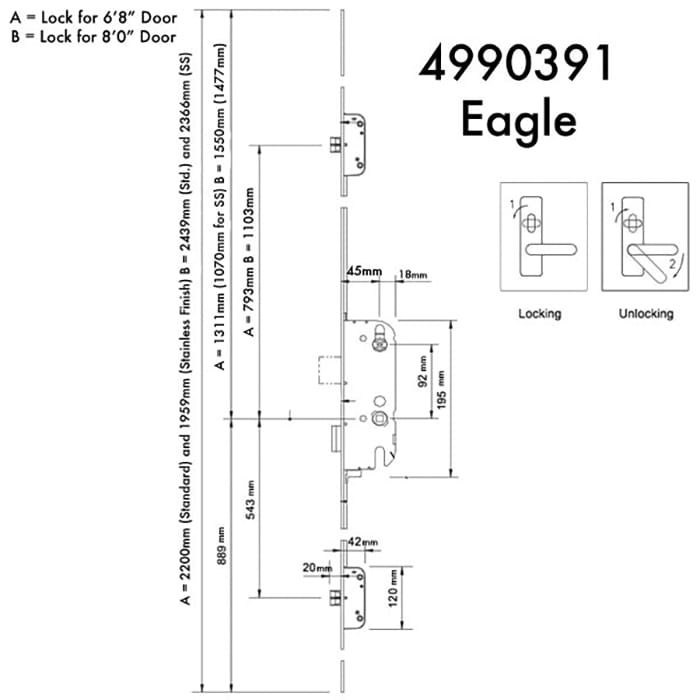

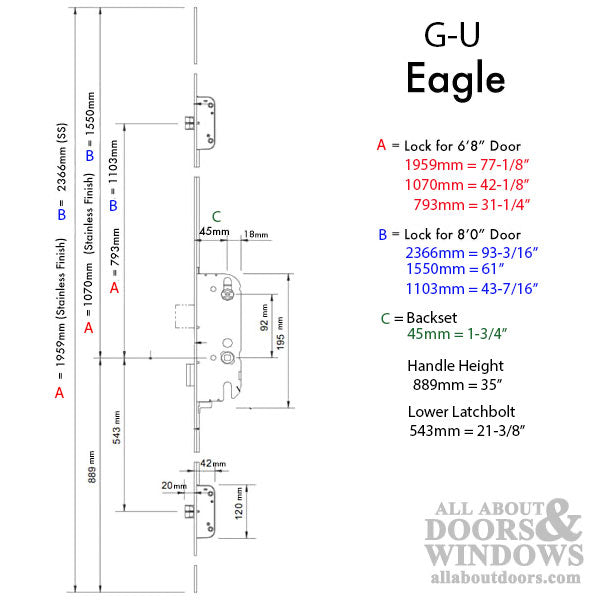

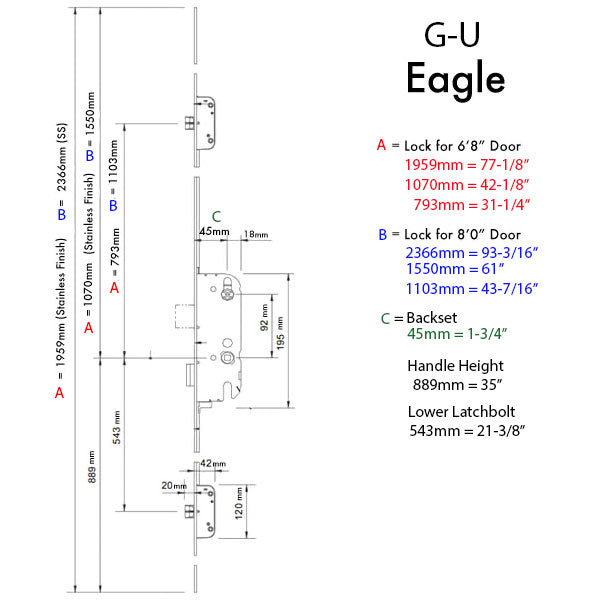

Faceplate Length: 93-1/8 inches (2366mm)
Croppable: Yes, the Bottom Can be cut down 9-1/2 inch; Top 13-1/2 inch
Handle Height: 35 inches (889mm)
Handle PZ: 3-5/8 inch (92mm)
Top Latch Bolt: 8-0 lock = 43-7/16 inches (1103mm)

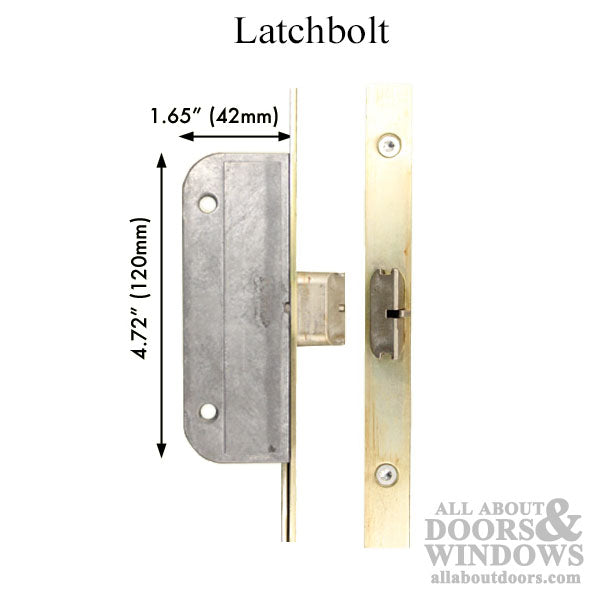

Bottom Latch Bolt: 21-3/8 inches (543mm)
Finish: Stainless Steel (G-U part #: 6-29586-11-R-8)
Lock Operation:
When the door closes the top and bottom latch bolts extend, but the door is not locked, the handle can be pushed down and the door will open. Throw the thumb turn or key to secure it in the locked position. You do not lift the lever on this style of lock.
To Change Handing
Center Latch: Remove 3 T-25 star screws from the faceplate and flip the latch Top & Bottom Latch: Insert a 3/16 Hex screwdriver into the hole on the backside of the latch. Unscrew, turning Counterclockwise - Remove Latch, spin around and re-attach. Test lock before installing
Additional Information:
How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Multipoint Lock
