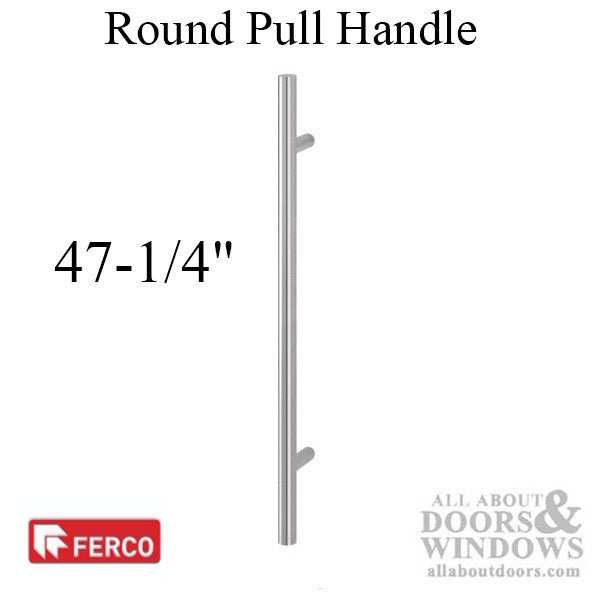

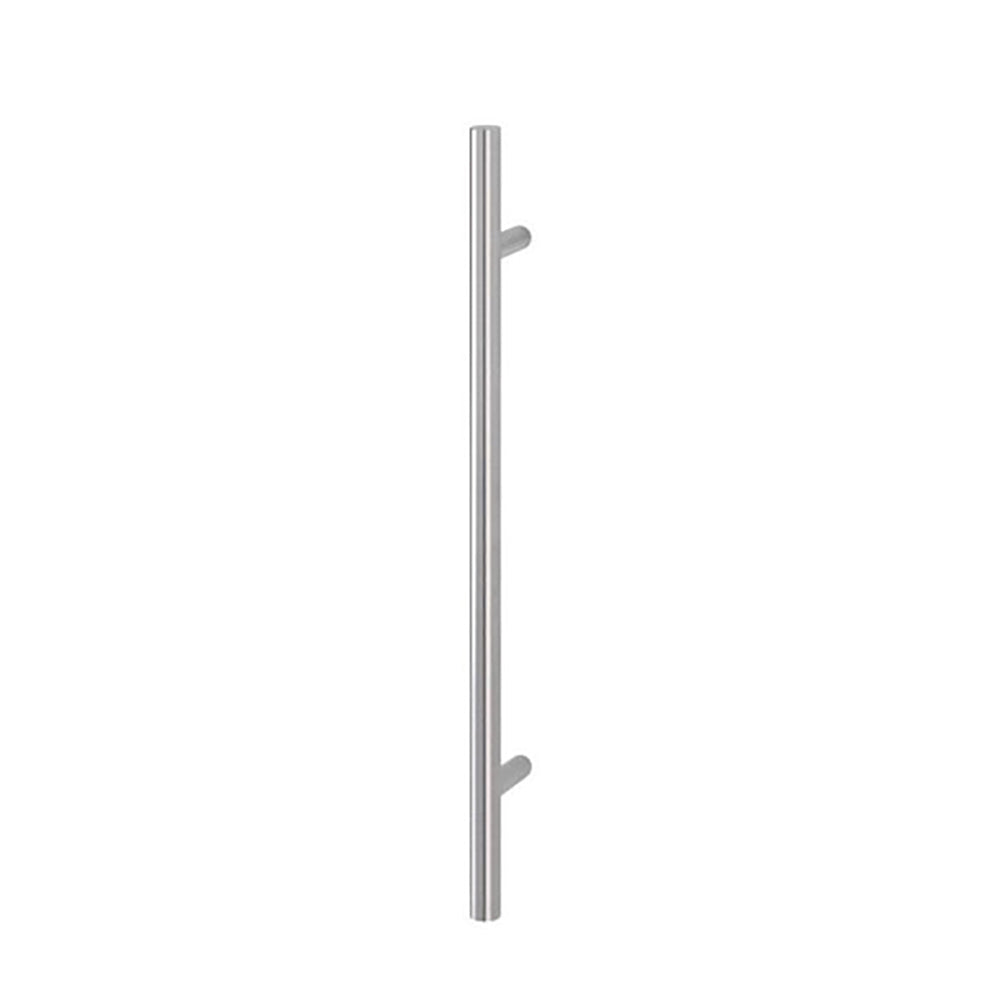

G-U Ferco Rounded 47-1/4 inch (1200mm) Straight Pull Handle
Specifications: Outside / Exterior pull bar
Part Number: B-78050-0A-0-8

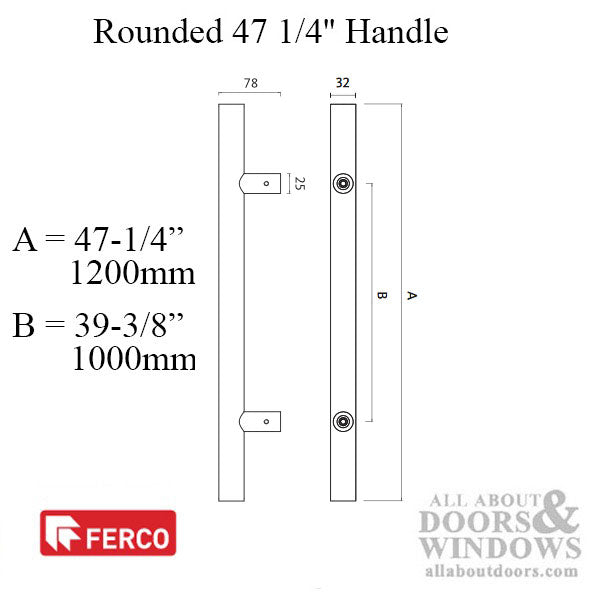

Overall Length: 47-1/4 inch (1200mm) 47.24
Screw Fixing centers: 39-3/8 inch (1000mm) 39.37
Pull Handle Diameter: 1-1/4 inch ( 32mm) 1.259
Pull Projection: 3 inch (78mm) 3.07
Additional information
Color: Stainless steel
Material: Stainless steel
Installation Screws: M8 Thread
Related Pull Handle Hardware:
B-78090-00-0-8: Fastening kit for double pull bar, Straight Handle
B-78090-01-0-8: Fastening kit for single pull bars, Straight Handle
B-78090-03-0-8: Fastening kit for single pull bars, Straight Handle, Wood Doors Only
