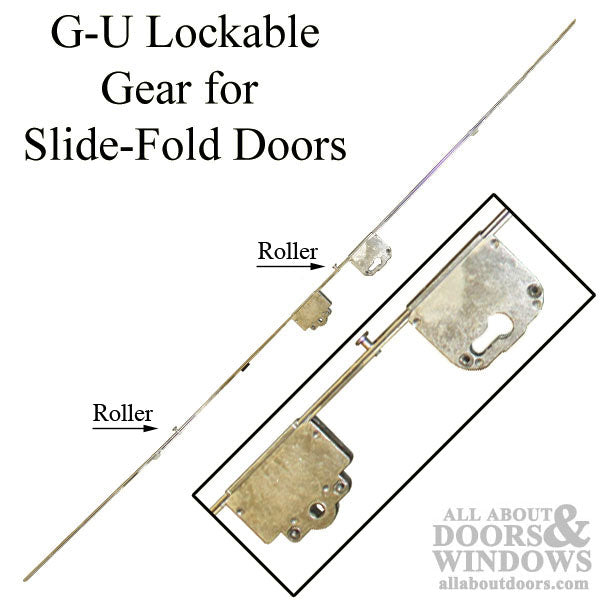

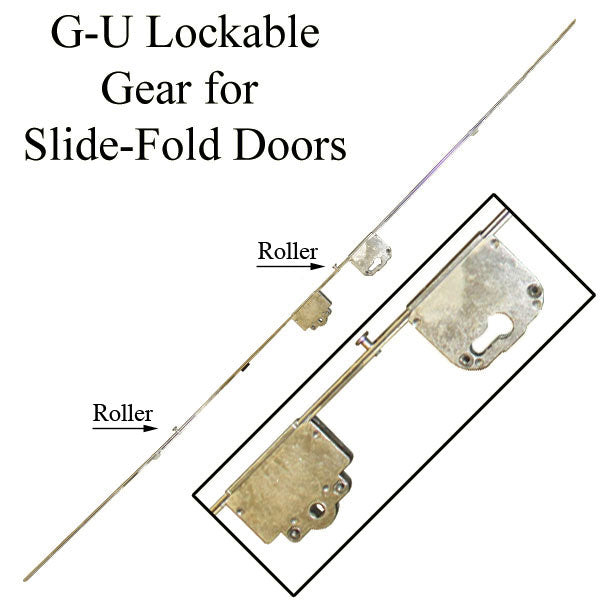

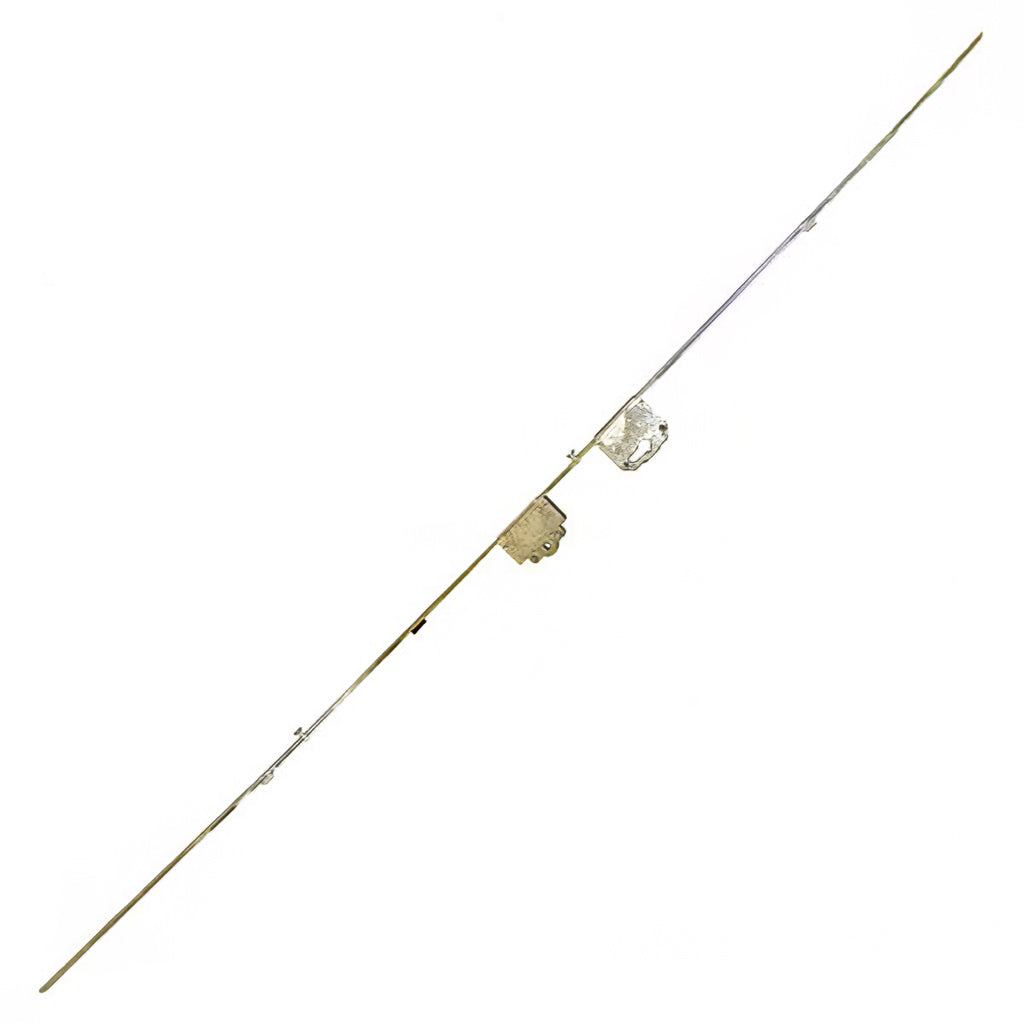

G-U Lockable Gear, 50mm backset slide-fold hardware
Use the arrows or swipe left to view all images for this product
G-U Lockable Gear, 50mm backset slide-fold hardware
Part Number: $117.85G-U Lockable Gear, 50mm backset slide-fold hardware
Slide-Fold Hardware for Wood Windows and Doors
Specifications:

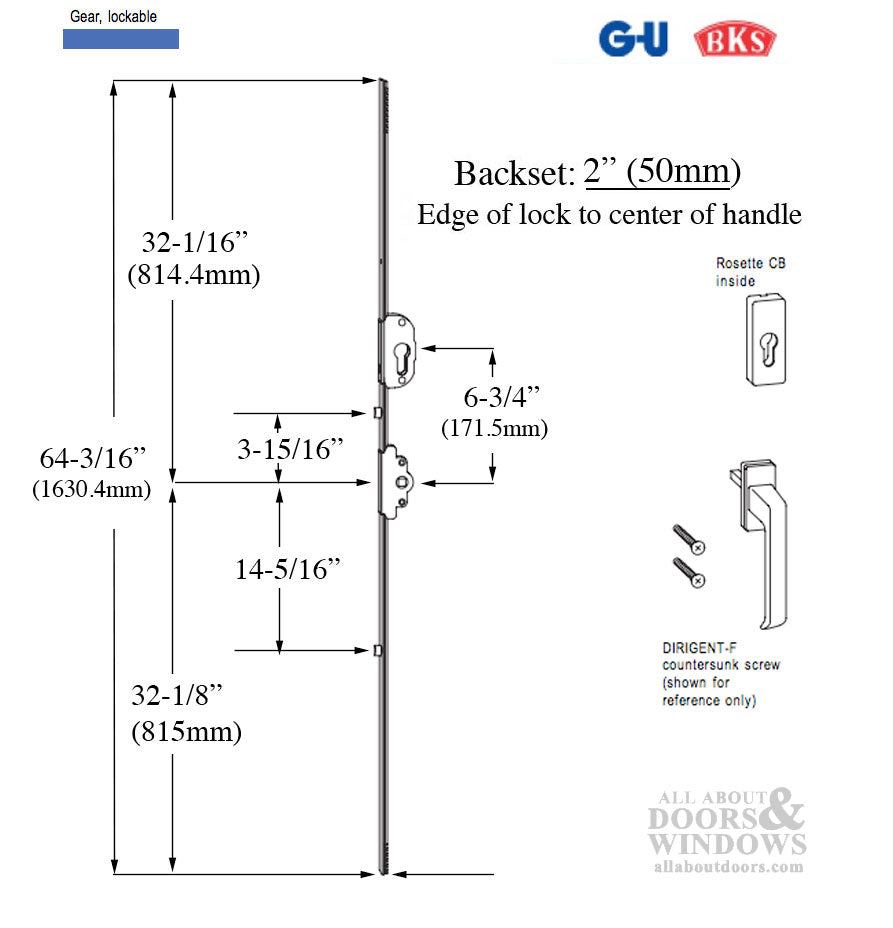

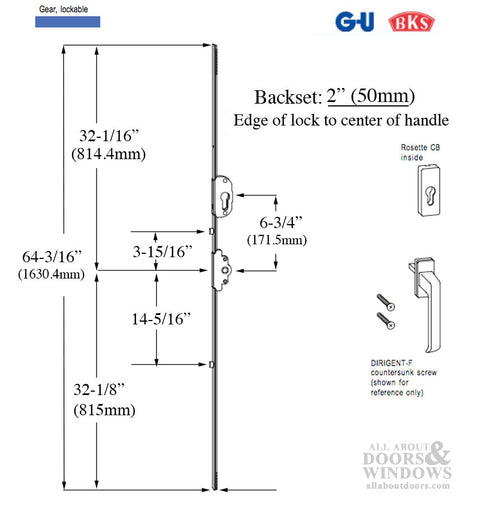

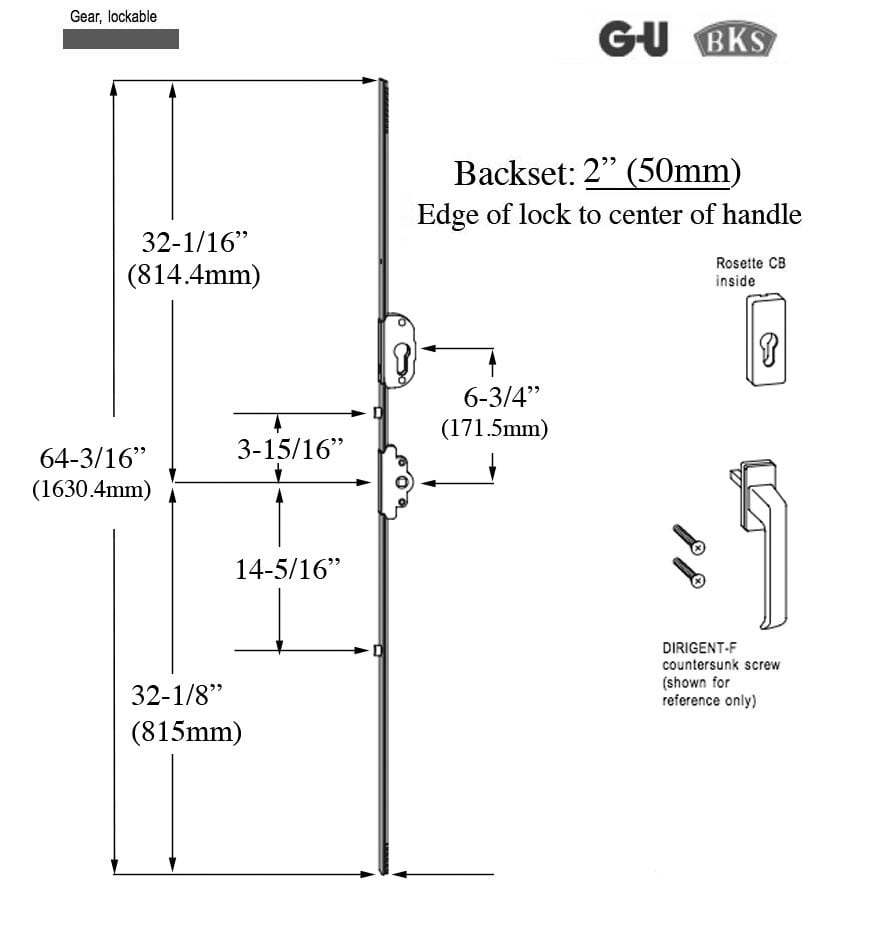

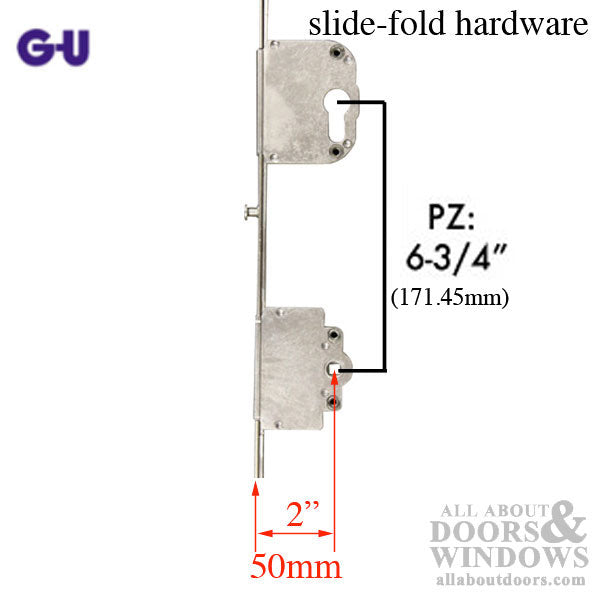

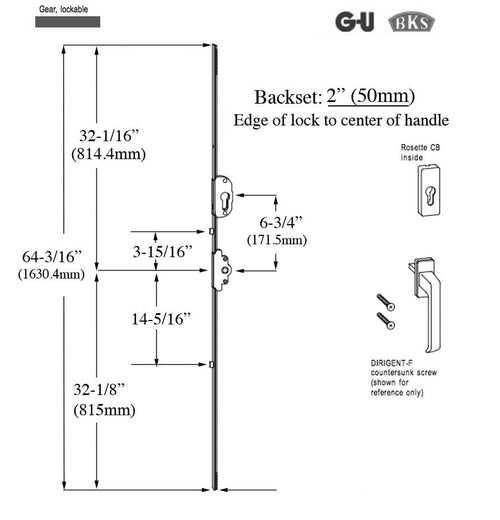

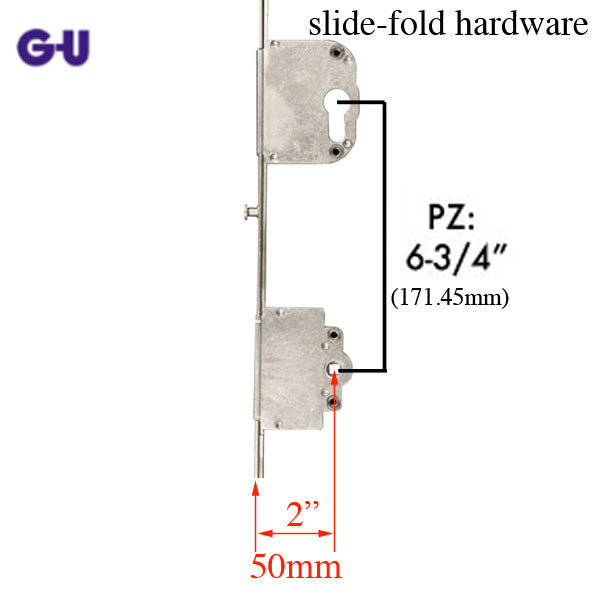

- Lockable gear with 50mm backset
- Attaches to corner transmission at top and bottom
- Faceplate Width: 16mm

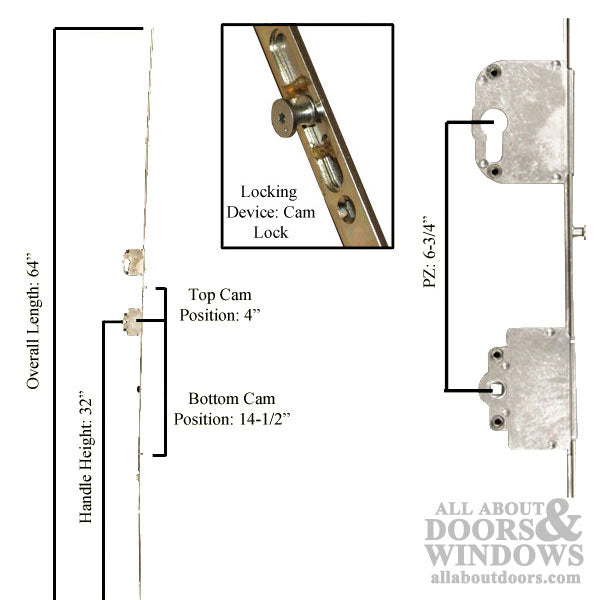

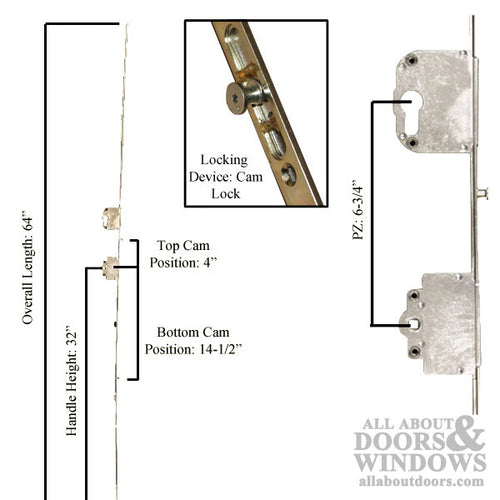

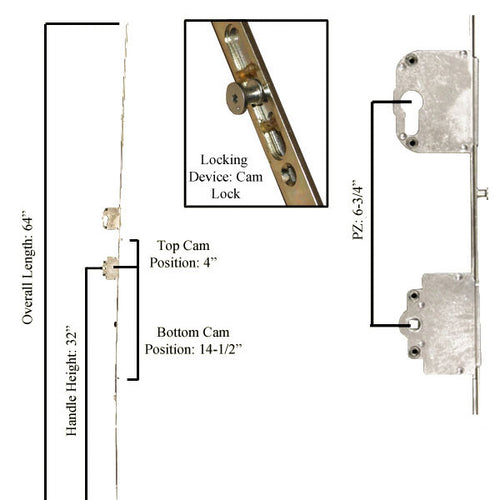

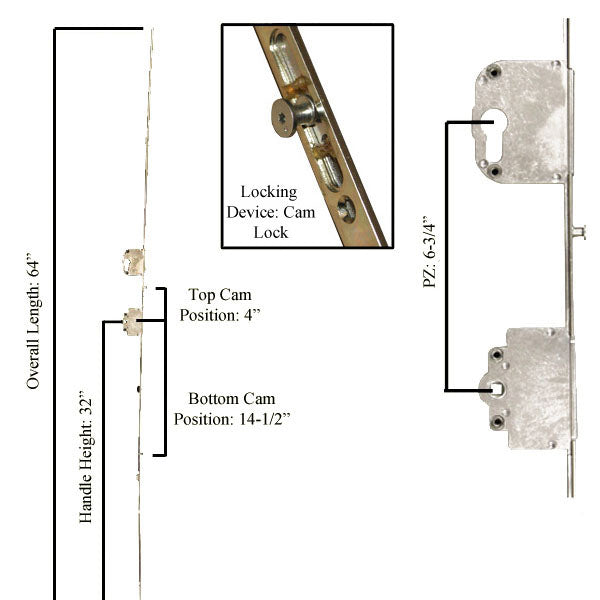

- Overall length: 64"
- Handle Height: 32"
- Cylinder-height (bottom to cylinder): 38-¾"
- Bottom cam position (handle to cam): 14-½"
- Top cam position: 4"
-
PZ: 6-3/4"
May be used on some sidelites as well.
Slide-Fold hardware for wood windows and doors
Lockable gear with 50mm backset
Attaches to corner transmission at top and bottom
16mm faceplate
Overall length: 64"
Handle-height: 32"
Cylinder-height (bottom to cylinder): 38-3/4"
Bottom cam position (handle to cam): 14-1/2"
Top cam position: 4"
PZ:6-3/4"
May be used on some sidelites as well.
