G-U Monolock 45mm Interior and Exterior Door Lock System
(This Locking System is also available with a BACKSET of 35, 40, 45, 50, and 55 mm)

Series: Europa - Monolock Door Lock Gear only

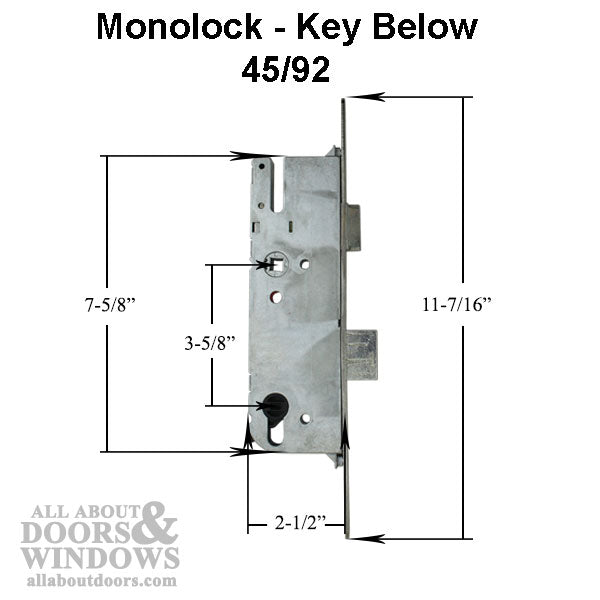

Handle to Cylinder Spacing: 3-5/8 inch (92mm)
Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.
Handle Position: Key below Handle (Europa)
Backset: 1 3/4 inch (45mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Silver - Also Available in Stainless Steel and Polished Brass with Multiple Backsets
Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square

NOTE: This can not be used to repair a Multipoint Lock

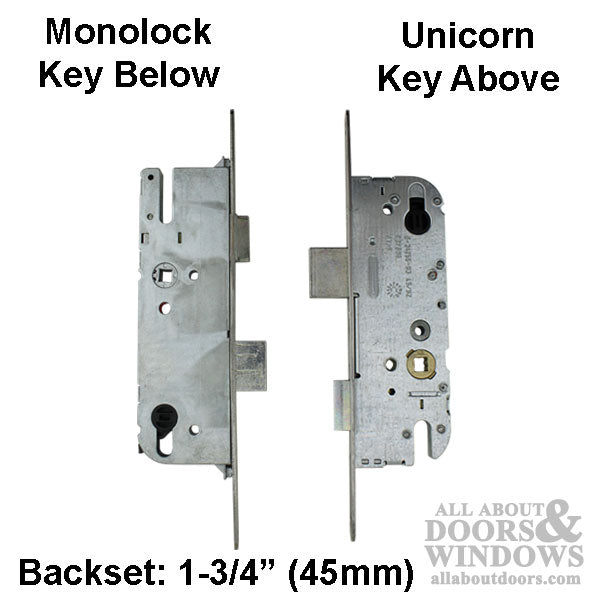

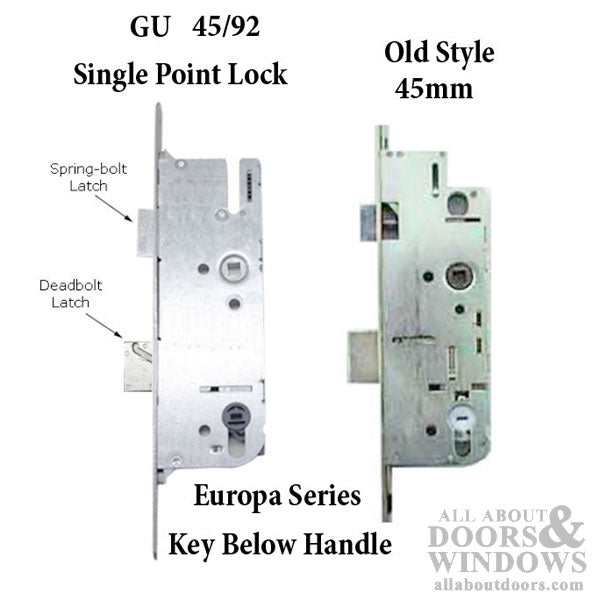

This will not replace the old lock case that looks slightly different.
This does not have any other locking devices, only the spring latch and deadbolt.

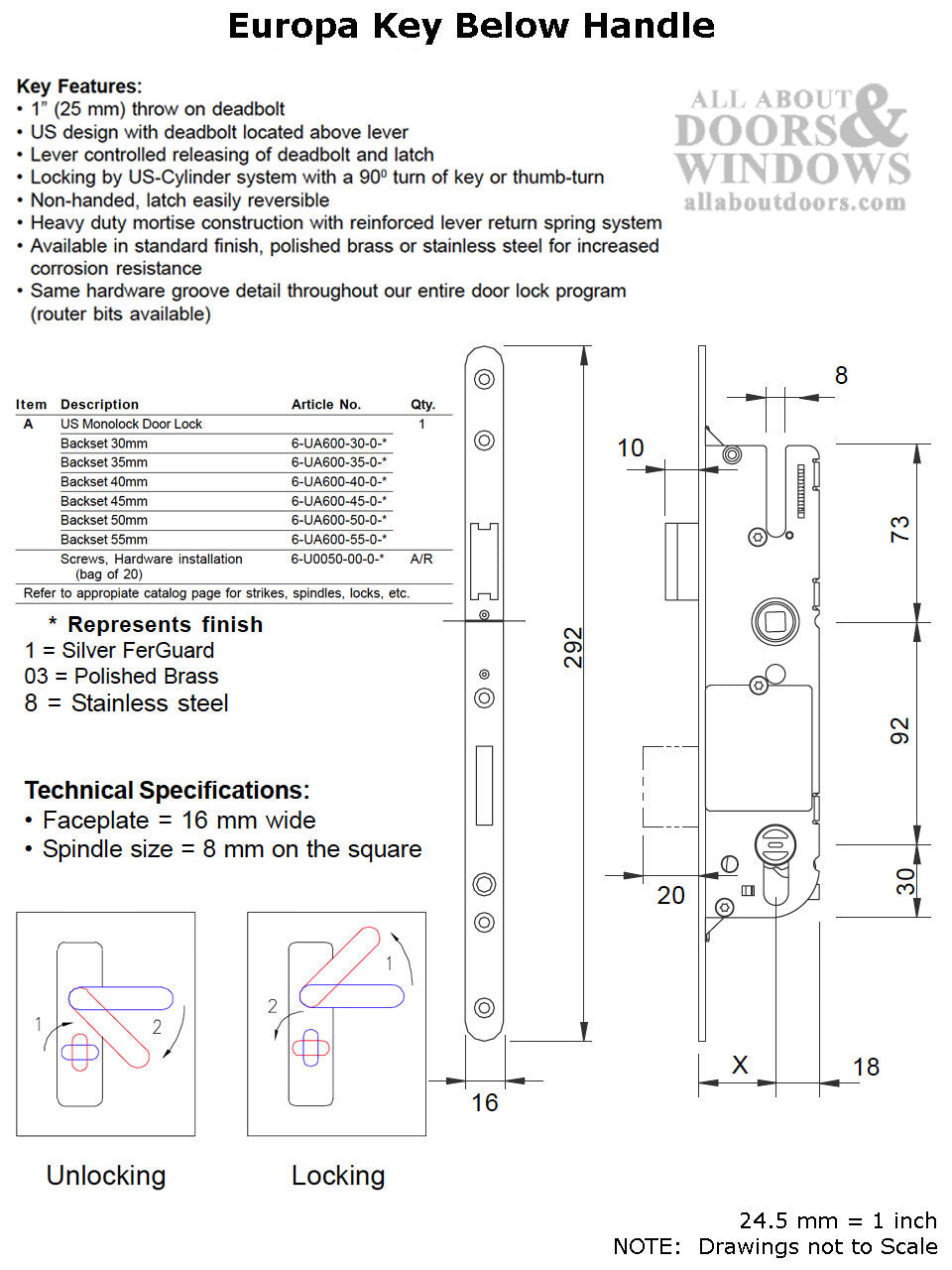

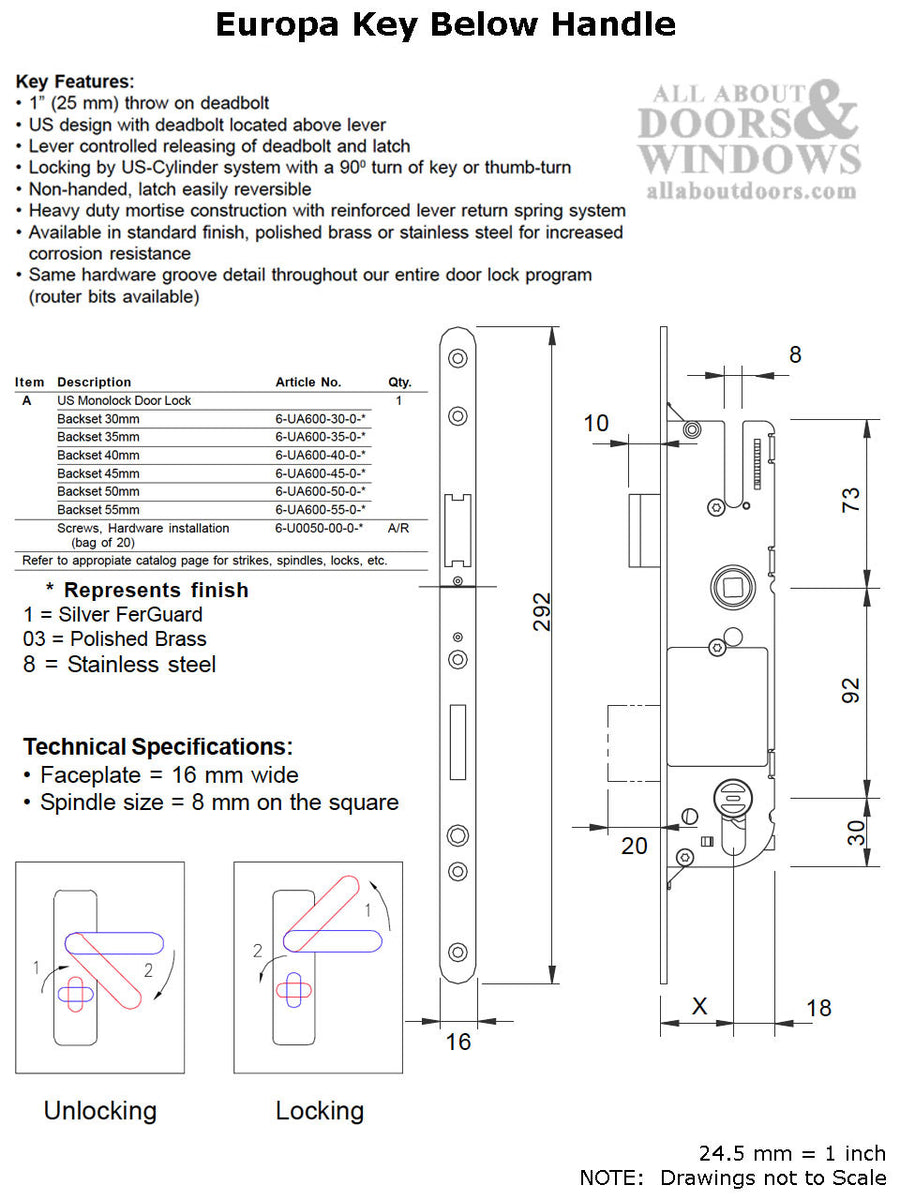

Key Features:
1 inch (25.4 mm) throw on dead bolt
US design with dead bolt located above lever
Lever controlled releasing of dead bolt and latch
Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
Non-handed, latch easily reversible
Heavy duty mortise construction with reinforced lever return spring system
Available in standard finish, polished brass or stainless steel for increased corrosion resistance
Same hardware groove detail throughout our entire door lock program (router bits available)

Note: To extend dead bolt and lock door raise the handle, then use key or thumb turn to secure handles and keep door locked.

Priced and sold each.

Related GU Monolock, Single Point Locks:
30mm Backset - 6-UA600-30-0-1
35mm Backset - 6-UA600-35-0-1
40mm Backset - 6-UA600-40-0-1
45mm Backset - 6-UA600-45-0-1
50mm Backset - 6-UA600-50-0-1
55mm Backset - 6-UA600-55-0-1

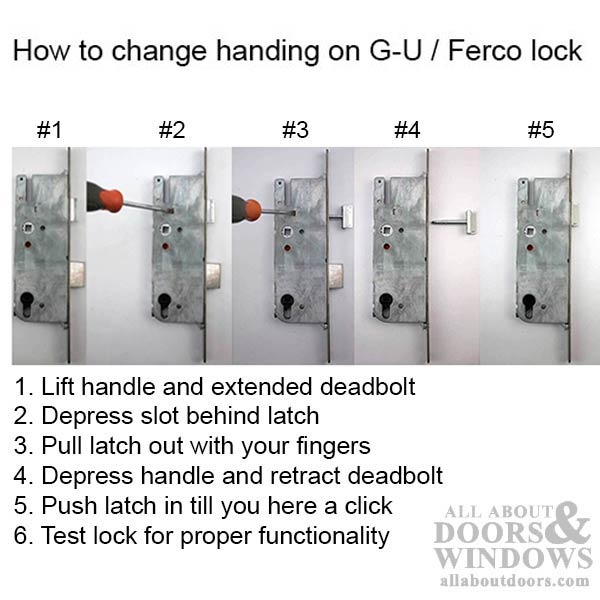

How to Rehand a GU Single Point Lock
