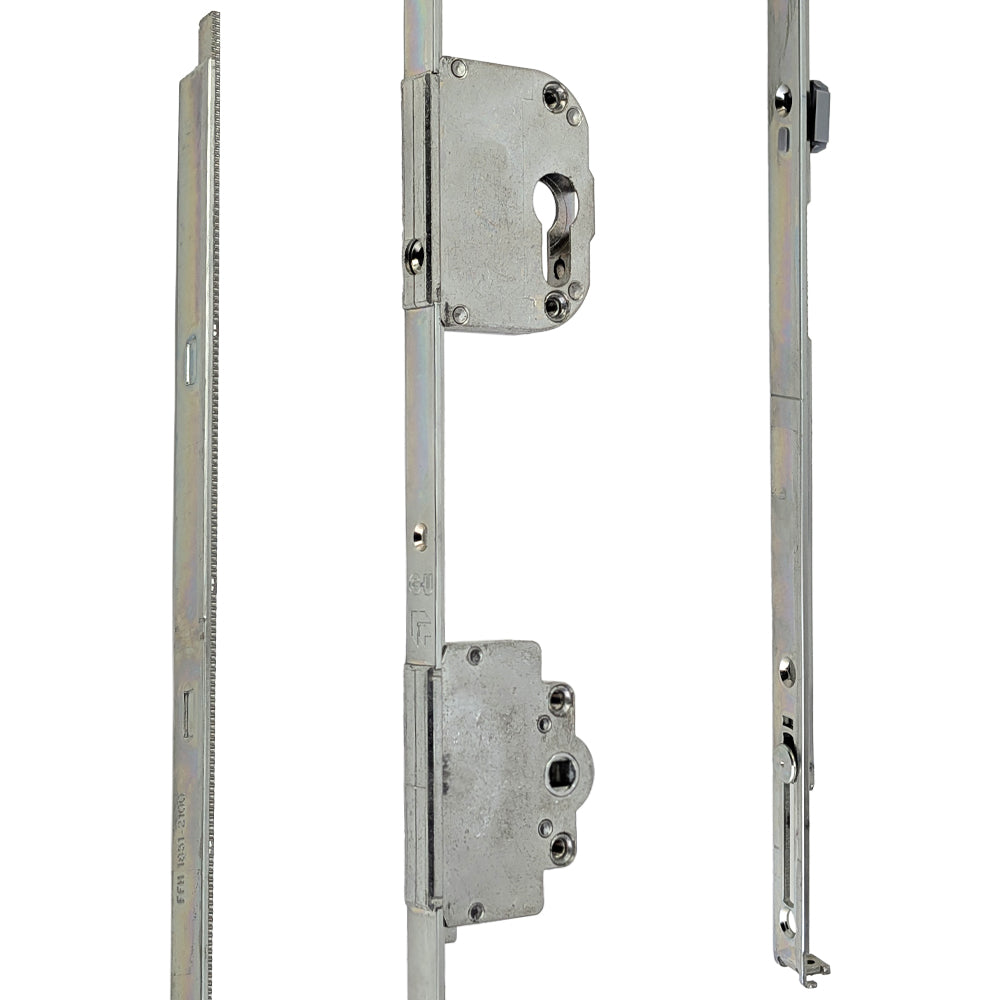

Gear with PZ Constant 45D GU

Application: Vinyl, Wood and Aluminum Doors

Lever Rotation: 90 degree (Horizontal Open / Vertical Locked)

Faceplate Width: 5/8" (16mm)

Markings above profile cylinder: 6-25204-30

Backset: 30mm

Door height: 73-1/2 inch

Center section length: 67-3/8

Euro Cylinder: 75mm inside 35/40mm outside

Door thickness: 2-3/8 inch (60mm)

Finger grip, silver, 43mm center-to-center screw holes

rectangular rose 28mm x 66mm

spindle: 7mm diameter, 107mm length
