Storm Door Lever Handle With Keyed Deadbolt Georgian Storm Door Handle Black

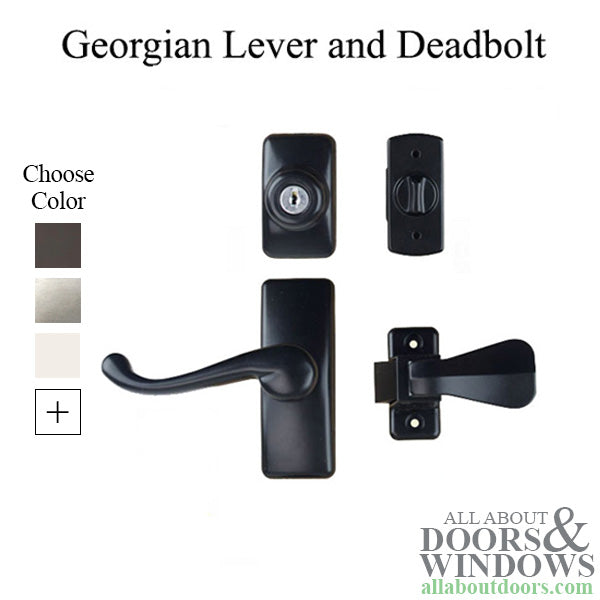

Georgian Storm door Lever Handle with keyed deadbolt, 2 keys.

Replaces Standard hardware - three hole pattern with 1-3/4 inch screw hole spacing

Door Thickness: 3/4, 1, 1-1/4 inch thick door

Deadbolt Offset: 1/4 inch from base

NOTE: DEADBOLT OFFSET HEIGHT VARIES - THERE ARE 3 HEIGHTS, 1/4, 1/2, & 3/4 inch

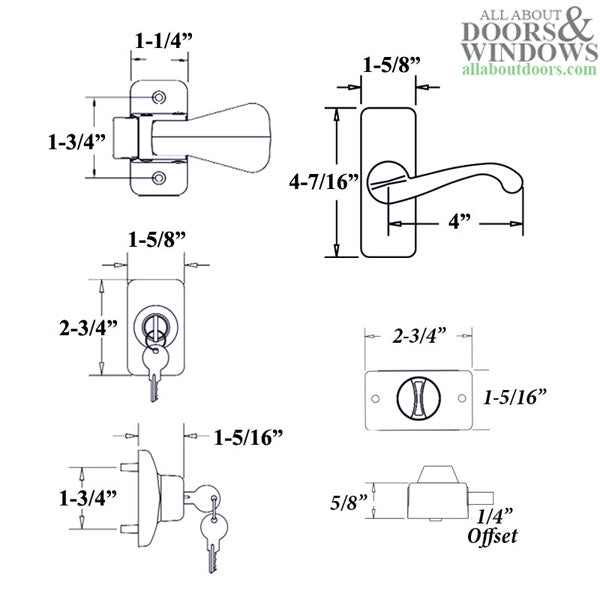

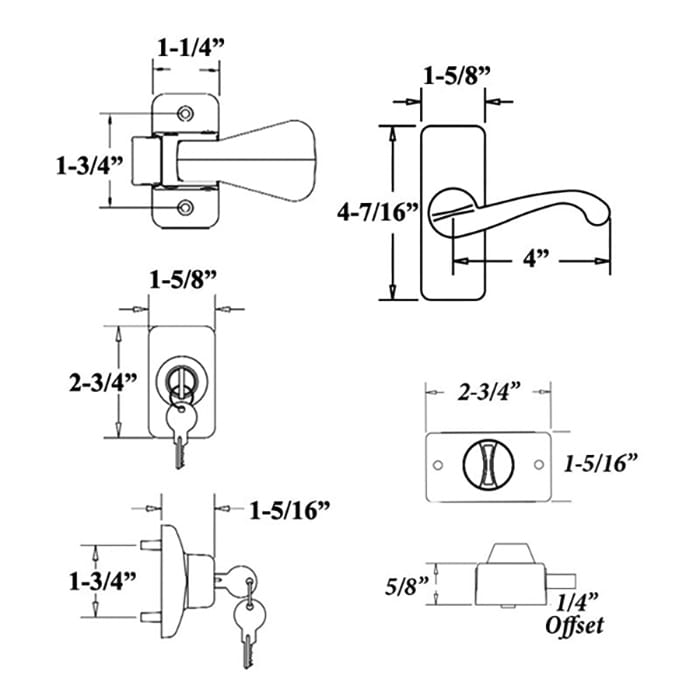

Screw hole Spacing: 1-3/4 inch; deadbolt and lever handle.

Standard Lock Spacing: 7-1/4 inch from top screw on deadbolt to bottom screw on lever handle - will fit other hole spacing.

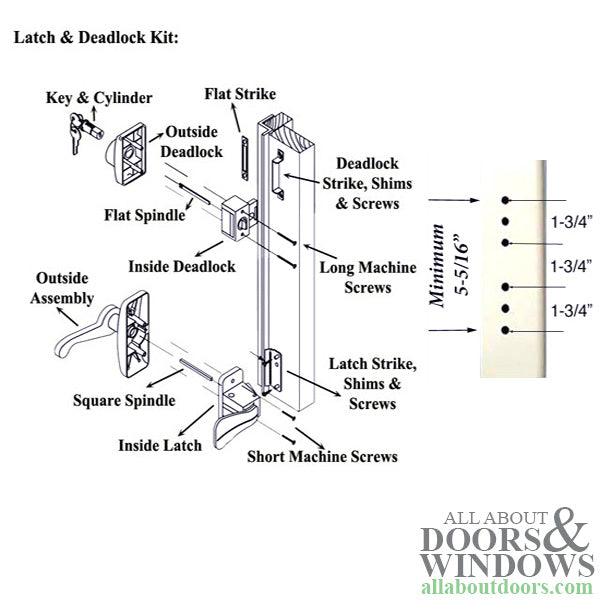

Minimum Spacing 5-1/4 inch from top screw on deadbolt to bottom screw on lever handle ( see additional images)

Material: Zinc base metal, Same finish on inside and out.

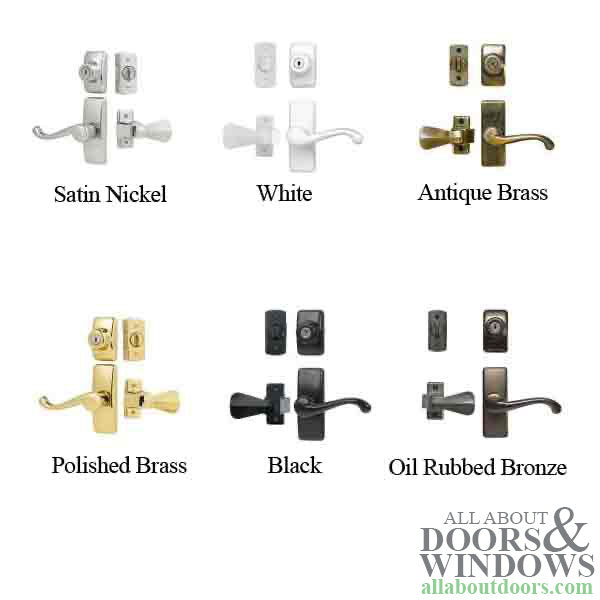

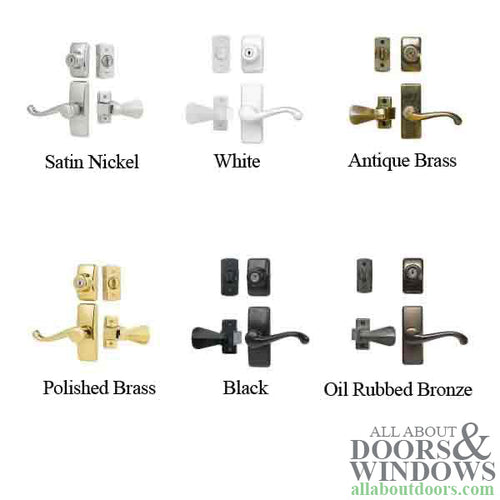

Colors / Finish:

Antique Brass

Polished Brass

White

Black

Matte/Flat Black

Satin Nickel

Oil Rubbed Bronze

We do not stock the deadbolt with 1/2 inch offset

302003: 1/4 inch offset - Fit doors from 3/4 to 1-1/4 inch thick

301053: 3/4 inch Offset - Fit doors from 3/4 to 1-1/4 inch thick

Guide: How to Install Georgian Deadlock and Latch
