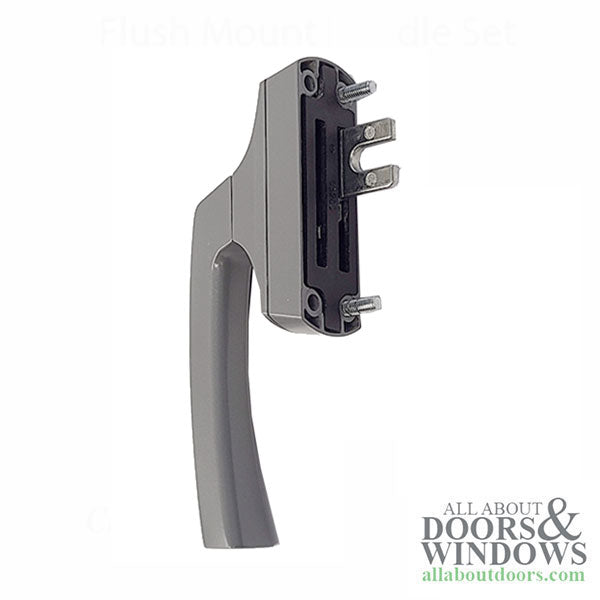

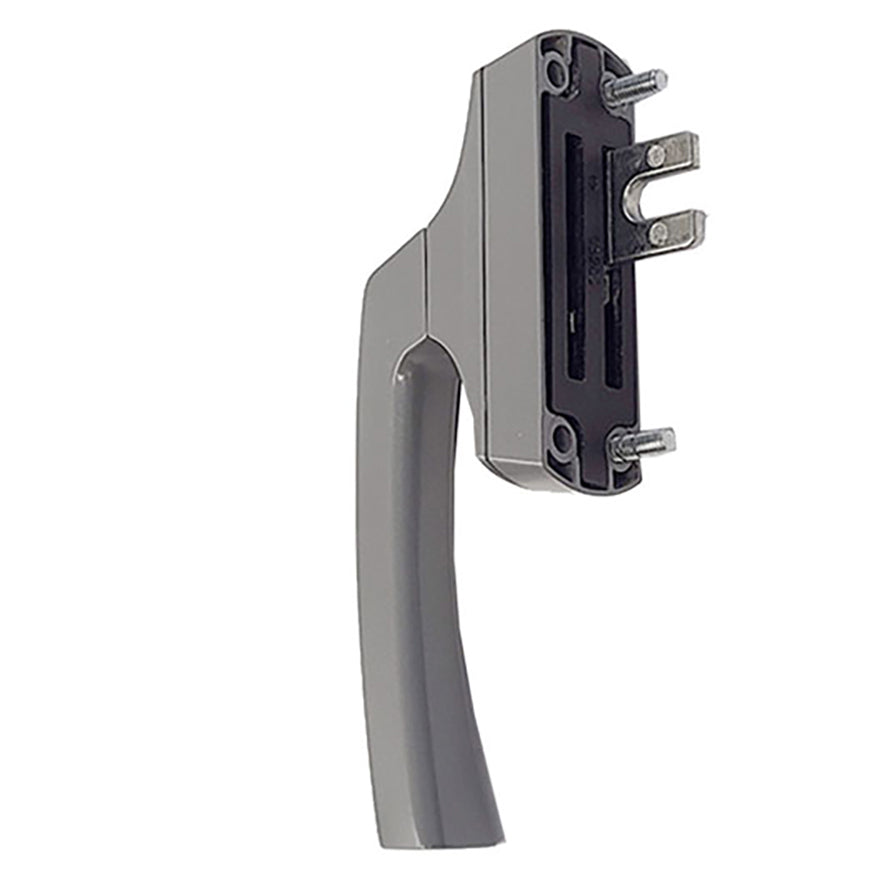

The Giesse Cremone is specific to one-way closing systems with handle positioning at 0 degrees and 90 degrees.
The Asia Outward 0-90 cremone has a fixing Center to Center distance of 2-3/4 inches (70 mm).
The Cremone is to be matched with the outward opening fork kits and the drive rod devices.

Application: Outward opening windows and doors

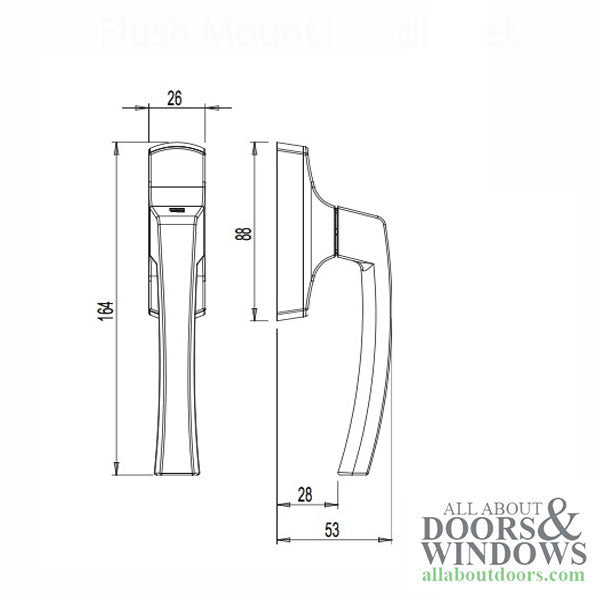

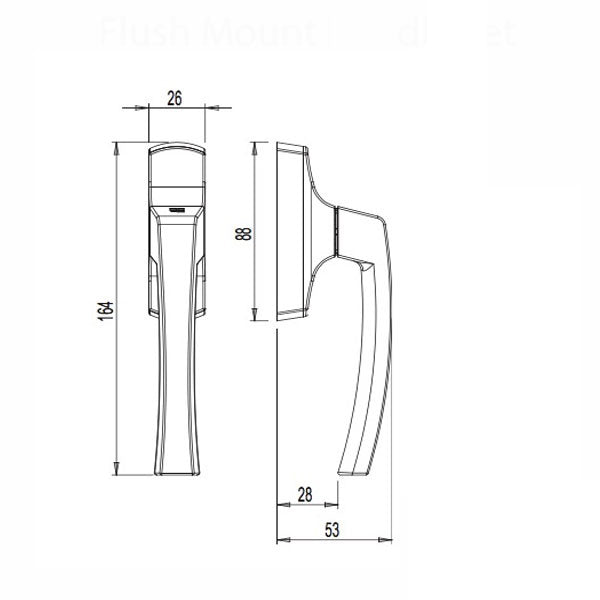

Base Width: 26mm
Base Length: 88mm
Overall Length: 164mm
Screw Holes Distance: 2-3/4 inches (70mm)
Screw Hole Width: 19/32 inch (15mm) .59375
Note: Normal installation only uses 2 screws, top to bottom
Threaded Rivets are installed for screw
Markings: C5442 on Fork
Material: Aluminum
Color: Giesse Silver
Available Colors: May be Special Order
Pure White, Pearl White, Cream White, Bright White, Silver, Brown, Black

Contents: Handle Only, does not include Drive Rods or Fork

RELATED HARDWARE KIT: Fork, Screws, Plate
02025 - 20mm Outward Opening Kit
02026 - 28mm Outward Opening Kit
02027 - 35mm Outward Opening Kit
02028 - 45mm Outward Opening Kit
02029 - 55mm Outward Opening Kit
02050 - 65mm Outward Opening Kit
