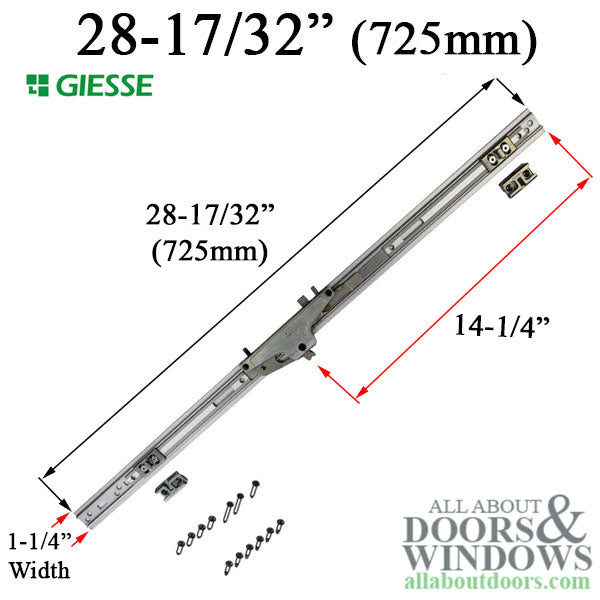

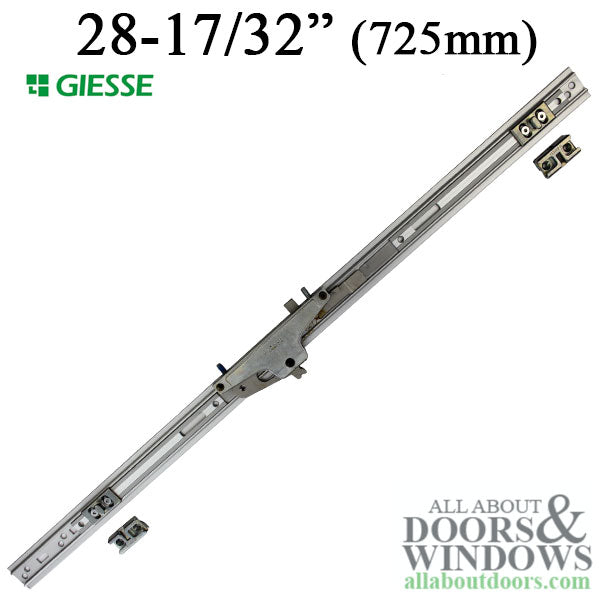

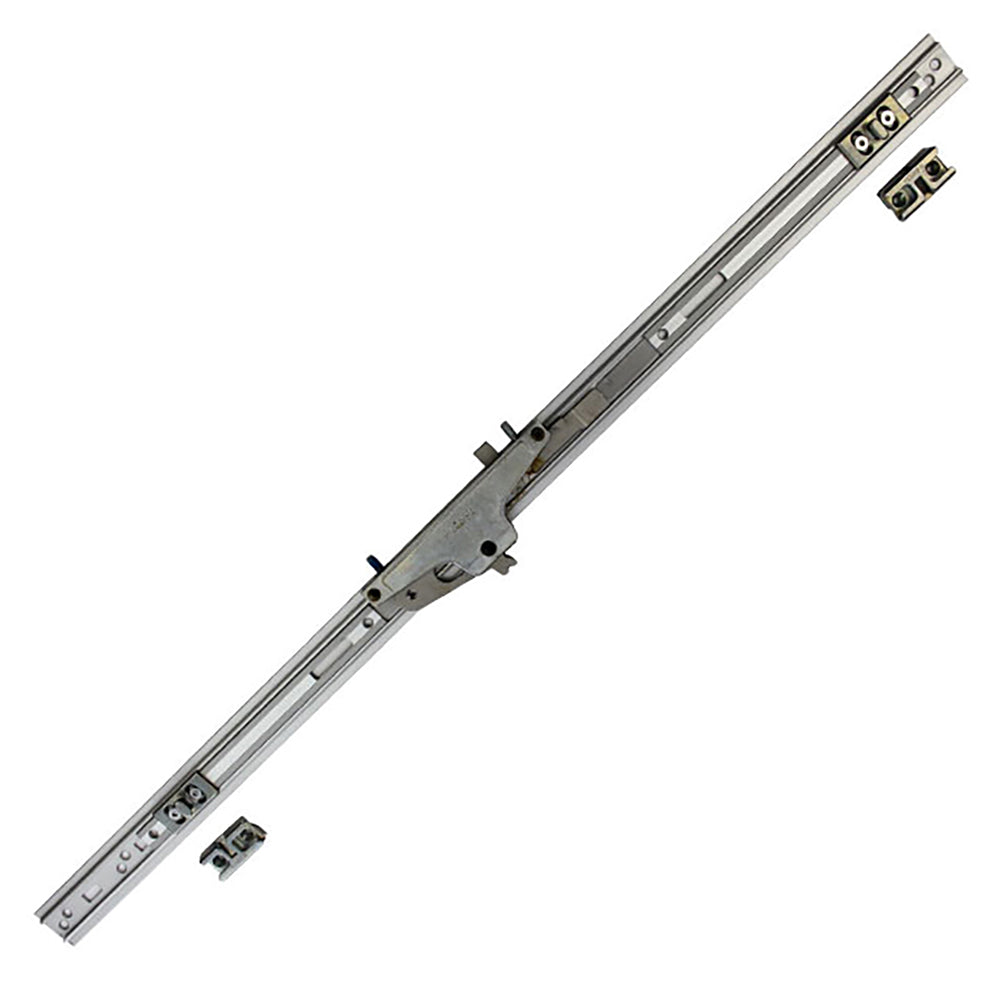

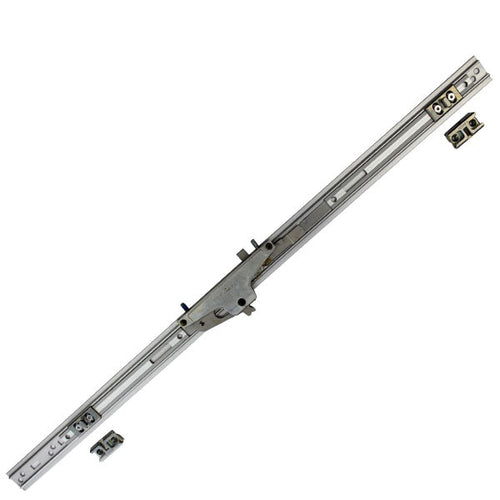

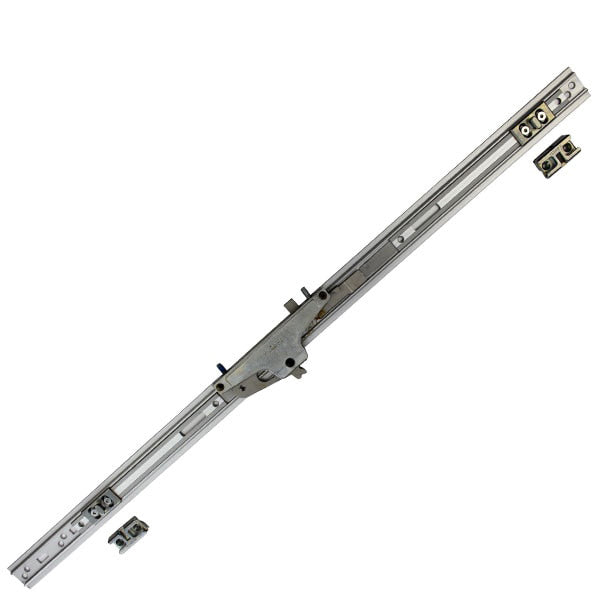

Giesse phase 1 OS Operator Mechanism for Casement or Awning Restricted Openings

Length: 28-17/32 inch (725mm)
Width: 1-1/4 inch (32mm)
Screws Per installation Diagram:
A = 6 Self Tapping 3/4 inch (19mm)
B = 1 Wood 1 inch ( 25mm)
C = 2 Wood 1-1/4 inch ( 32mm)
D = 4 wood 3/4 inch (19mm)

Functions
Symmetric mechanism for operating aluminum Top (Awning) or Side Hung (Casement) out swing windows.
Provides 2 locking points.

The OS Operator mechanism has three functions:
- Moves the window from closed to fully open (limited) and vice-versa
- Provides 2 locking points on the handle side
- Provides for a limited Egress 4 inch Opening
* Available in multiple sizes
