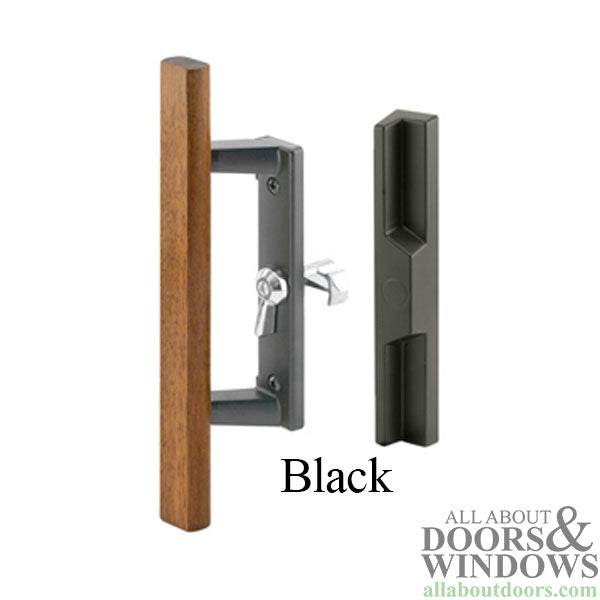

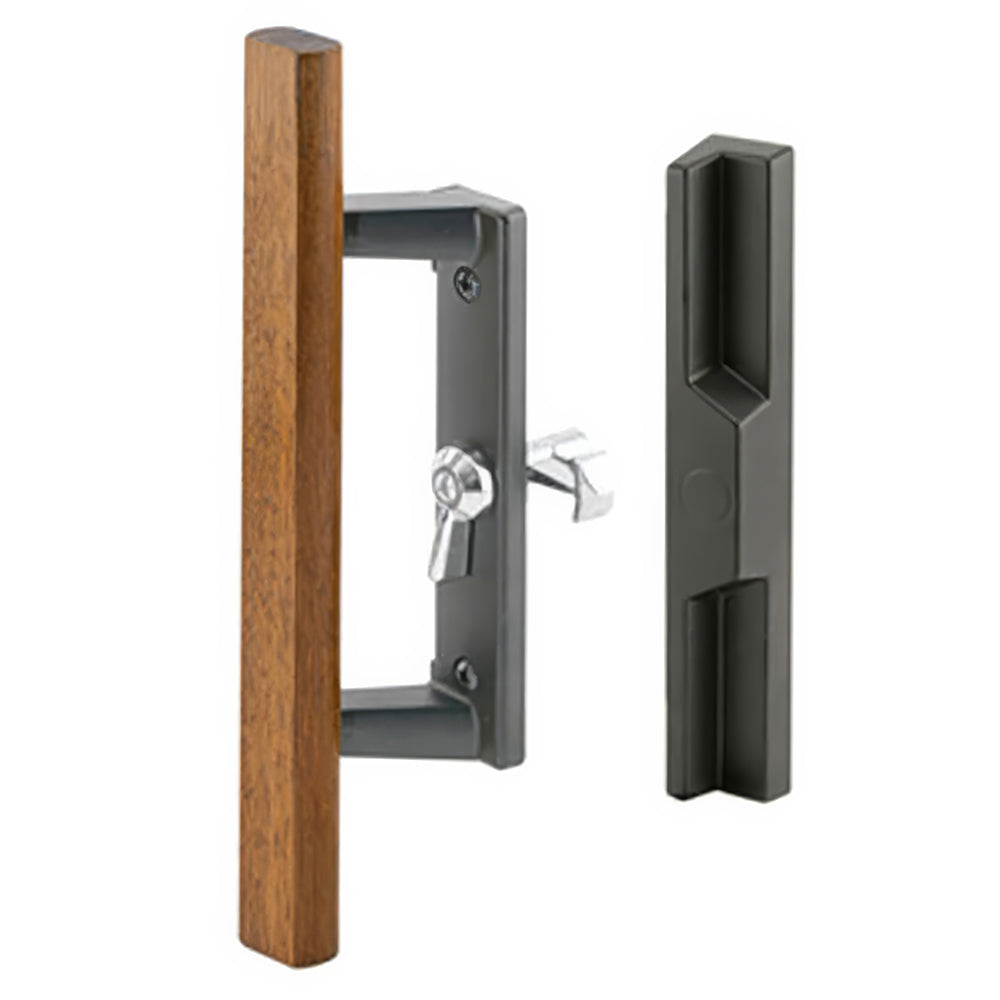

Handle Set - Sliding Patio Door, Internal Lock - Black

Part Number: 14171 Price: $48.00
Handle Set for Sliding Patio Door

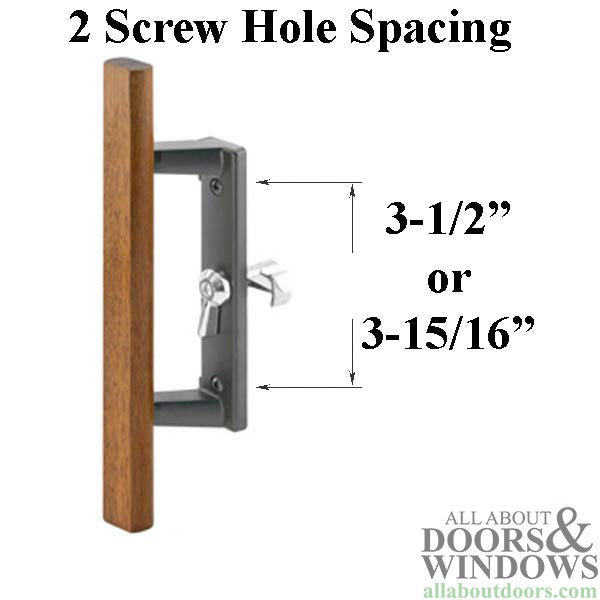

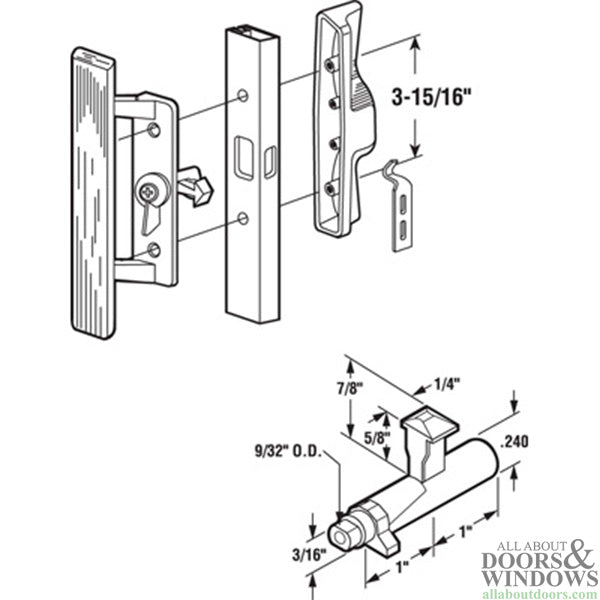

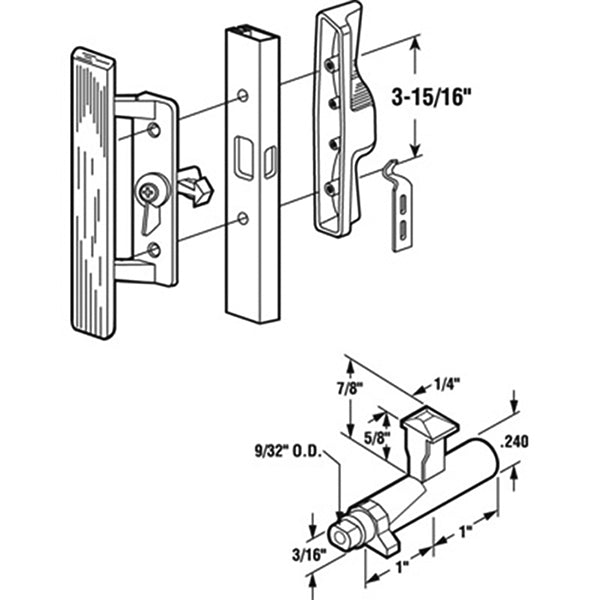

Screw hole spacing 3-15/16 inches.
Fits 1-1/2 to 1-3/4 inch thick door rails.
Diecast aluminum with wood pull
Designed to fit many doors
Reversible right or left hand applications
Complete with keeper
Automatic unlatching feature prevents accidental lockout
Sold Each

For doors 1" thick use 14041

Color: Black / Wood
Finish: Painted / Wood
Hole Center: 3-15/16 inch
Latch Style: Hook Style
Material: Mixed Materials
Type: Handle Mortise Style

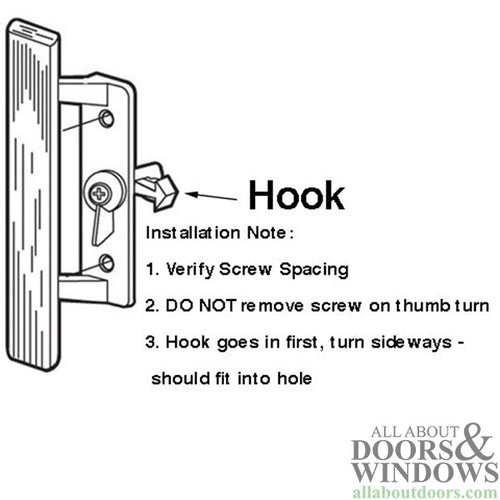

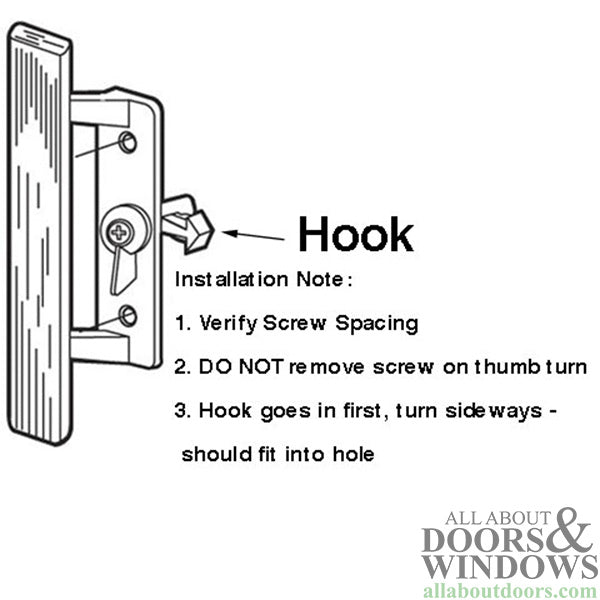

Installation Note:
1. Verify Screw Spacing
2. DO NOT remove screw on thumb turn
3. Hook goes in first, turn sideways, shaft will fit into hole, turn again to align screw holes.

Contents
1 inside pull and latch
1 outside pull
1 keeper
1 locking cylinder
Installation fasteners
