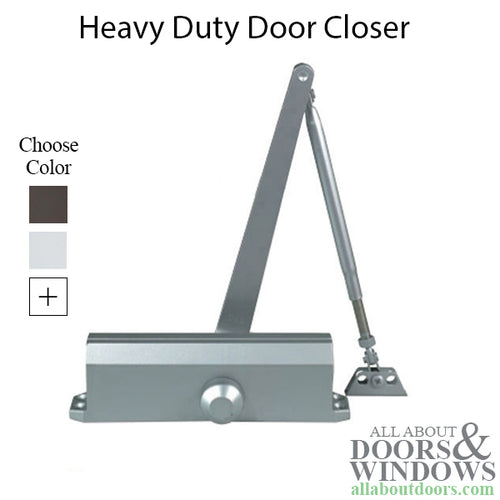

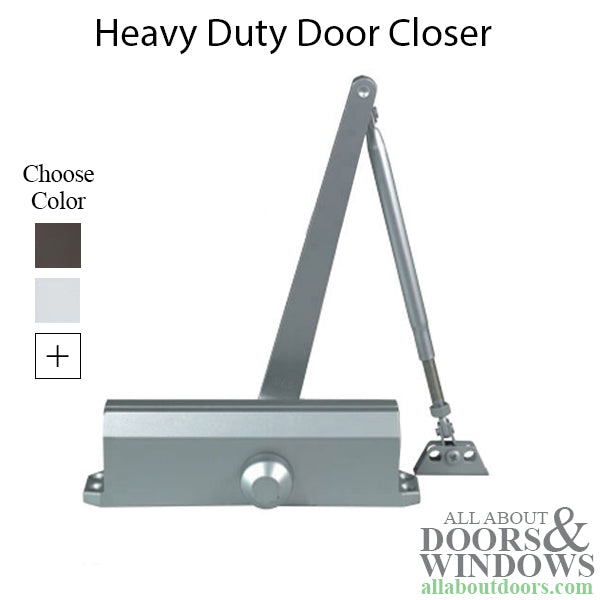

Heavy Duty Door Closer - Dual Valve - Adjustable #3-6, Choose Color

Part Number: 381021-AL Price: $59.95
COLOR: - Aluminum

Heavy Duty Adjustable Strength Door Closer
Adjusts for #3 to #6 Closers
Recommended for use on all aluminum store front doors, wood or hollow metal doors

UL Listed Closer: Yes
Grade 1 certified, commercial applications requiring ANSI/BHMA A156.4
Streamline, Non-Hold Open, Non-Handed Door Closer

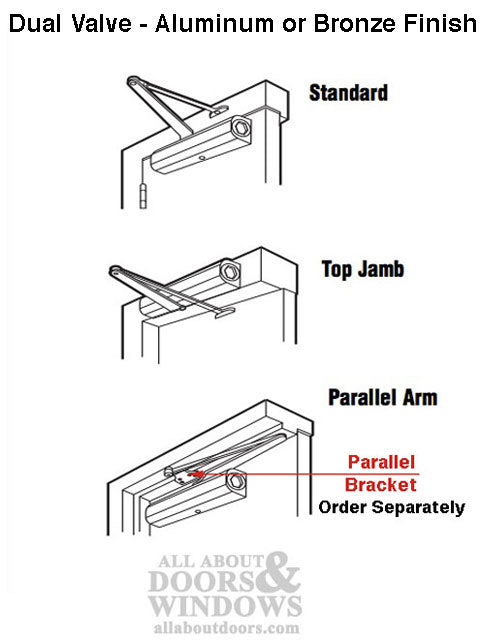

Includes one closer and all necessary hardware for Regular or Top Jamb Installation

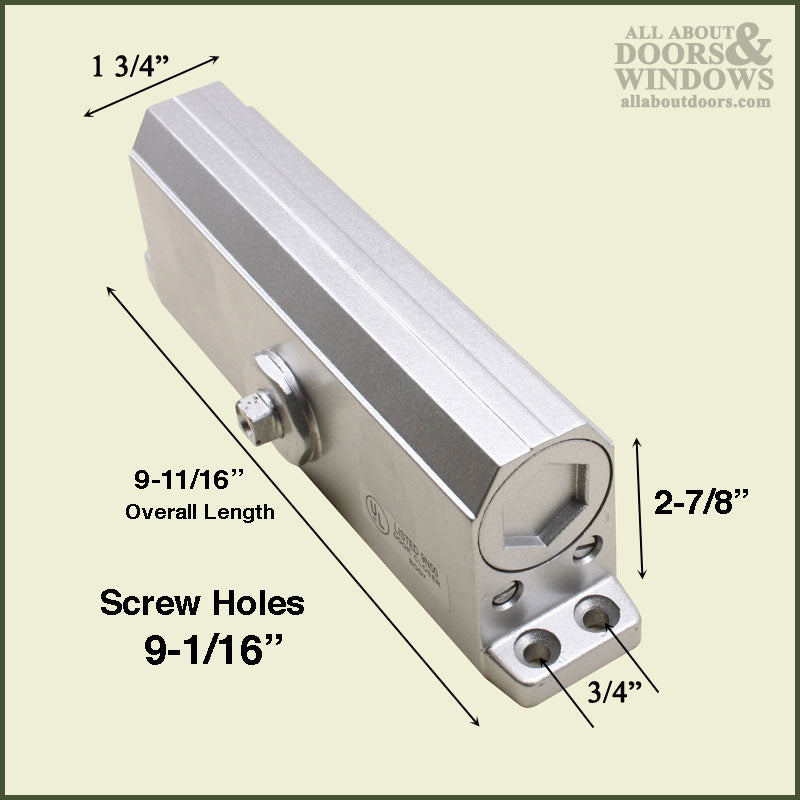

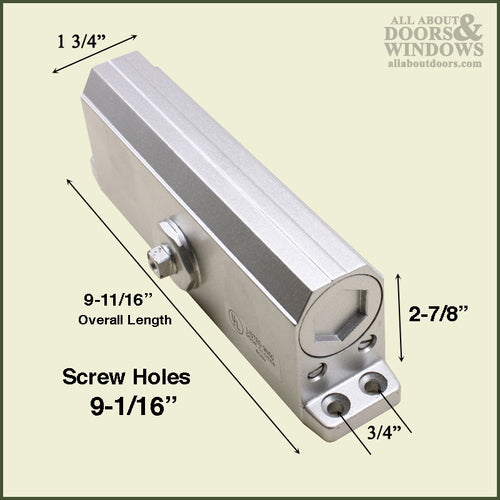

Screw Holes Height: 3/4 inch
Screw Holes Width: 9-1/16 inch
Adjustment Values: Dual (2) for Sweep & Latching
Dual valves to control closing and latching speeds.
Cast aluminum body in painted finishes.
Rack and pinion operation.
Hydraulic fluid for any climate operation and constant lubrication.
Mounts to most glass and aluminum doors without special adapters.
Heavy duty threaded adjustable arm with lock nut.
Size: #3 - #6 Adjustable Strength for Interior or Exterior Doors

NOTE 1: Parallel Arm Installation requires mounting Plate - Not Included
NOTE 2: Hold open applications require different arm - Not Included

CROSS REFERENCE INFORMATION
Global - TC200
LCN - 1070
Norton - 1600 (retrofit)
Dorma - 600
Dor-O-Matic / Falcon - SC60/61
Sargent - 1130
Yale - 51 (retrofit)
Corbin Russwin - DC40600
Arrow - 1000
International - 8900
Sentinel - S50/S51

Note 3: Comparisons for other brands are for similar Equivalents, Mounting holes may vary.


Related Door Closer Accessories:

381027 - Wide Drop Plate

381028 - Narrow Drop Plate

381032 - Hold Open Arm

381031 - Regular Arm

381034 - Top Jamb Extender

381037 - Parallel Arm Bracket

381036 - Hold Open Parallel Arm Bracket

381026 - Cover

381030 - Thru Bolts
