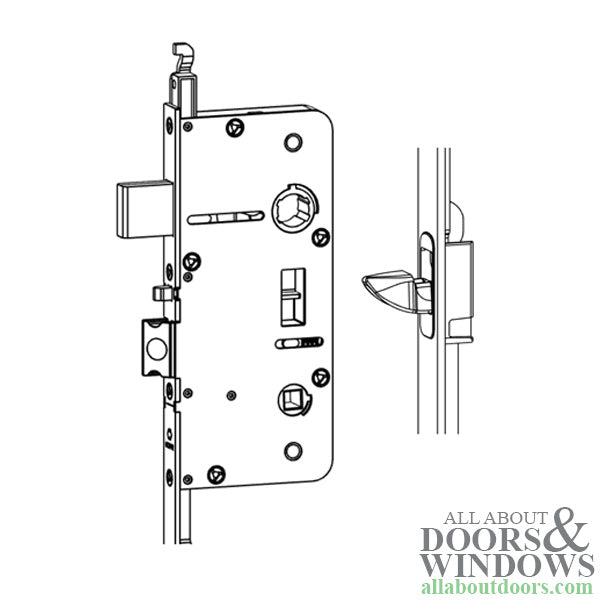

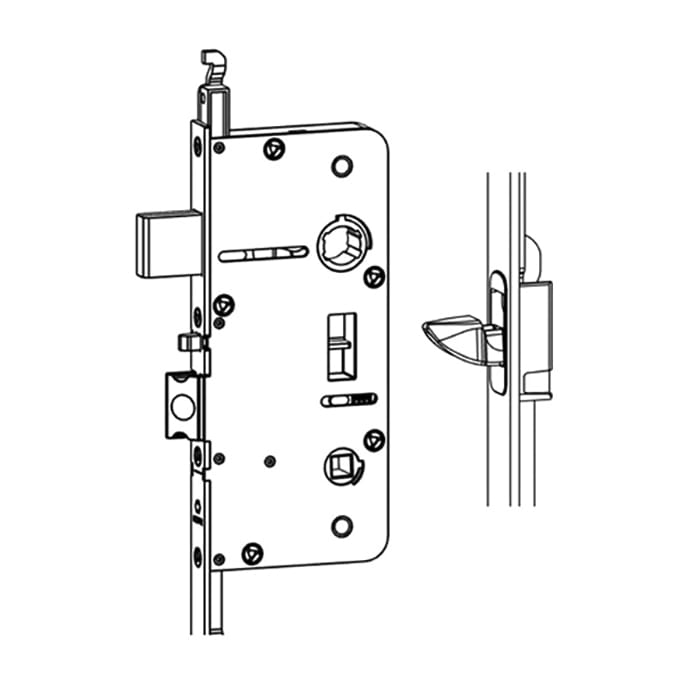

HLS2000 Lower Assembly 2-3/8" backset, tongue at 26.30"

Part Number: 11902589 Price: $264.55
Hoppe HLS®2000 Series Multipoint lock designed especially for residential entry doors.
The HLS 2000 handle set and Multipoint lock are not interchangeable with other HOPPE lock hardware.
The Lower Assembly works only with the HLS2000 Grip handle entry set


Application: Residential Entry Doors
Key Position: Key above Lever
Backset: 2-3/8 inch (60mm)
Handle to Cylinder Spacing (PZ) 3-5/8 inch (92mm)
Non-Handed: Reversible Latch, Pull out and spin around
Mishandling Device: Allows bolts to extend only when the door is closed preventing damage to the frame

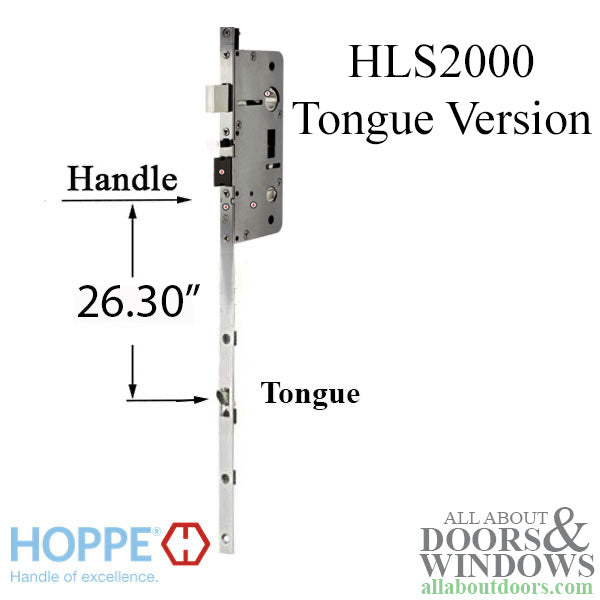

Lock Type: Tongue Version
Lower Tongue: 26.30 ( 668mm)
Upper Tongue: 29.41 ( 747mm), 37.20 (945mm), 47.13 (1197mm), 50.59 (1285mm), 62.76 (1594mm)
Handle Set Requirements: Hoppe HLS 2000 Hardware, with Entrance Grip Handle.

Additional Information:
• Combines the benefits of multipoint locking, improved weather sealing and security, with a conventional entry door handle set

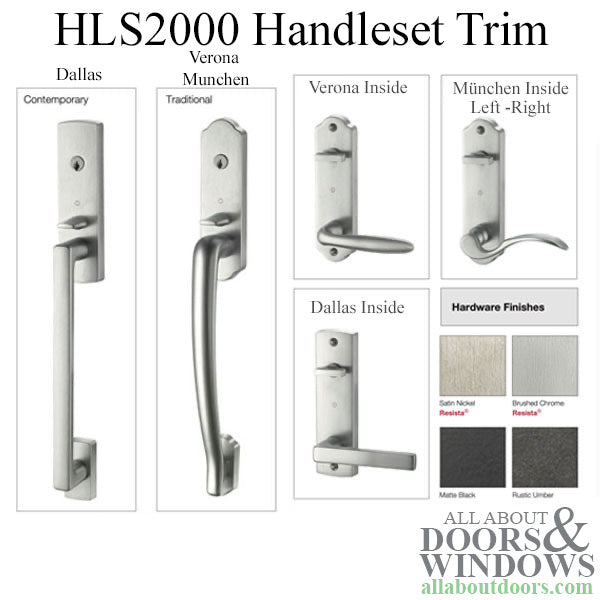

▪ Two exterior handle styles: Contemporary, Traditional
▪ Three interior handle styles: Dallas, Verona, München
▪ Four hardware finishes: Satin Nickel Resista, Brushed Chrome Resista, Matte Black, Rustic Umber
▪ Easy, intuitive operation - engage multiple locking points and dead bolt by turn or by key same as a single point lock
• Simple locking and unlocking
• Familiar 90 degree turn
• No lifting the lever
• Durable Resista finishes are backed by a limited lifetime warranty
▪ Quick-fit connection for interior handles
• Faster installation that does not require a set screws and hex wrench
