ALL HLS 7 have the same backsets & Are Handed for Left or Right hand doors
Handing can be changed if needed

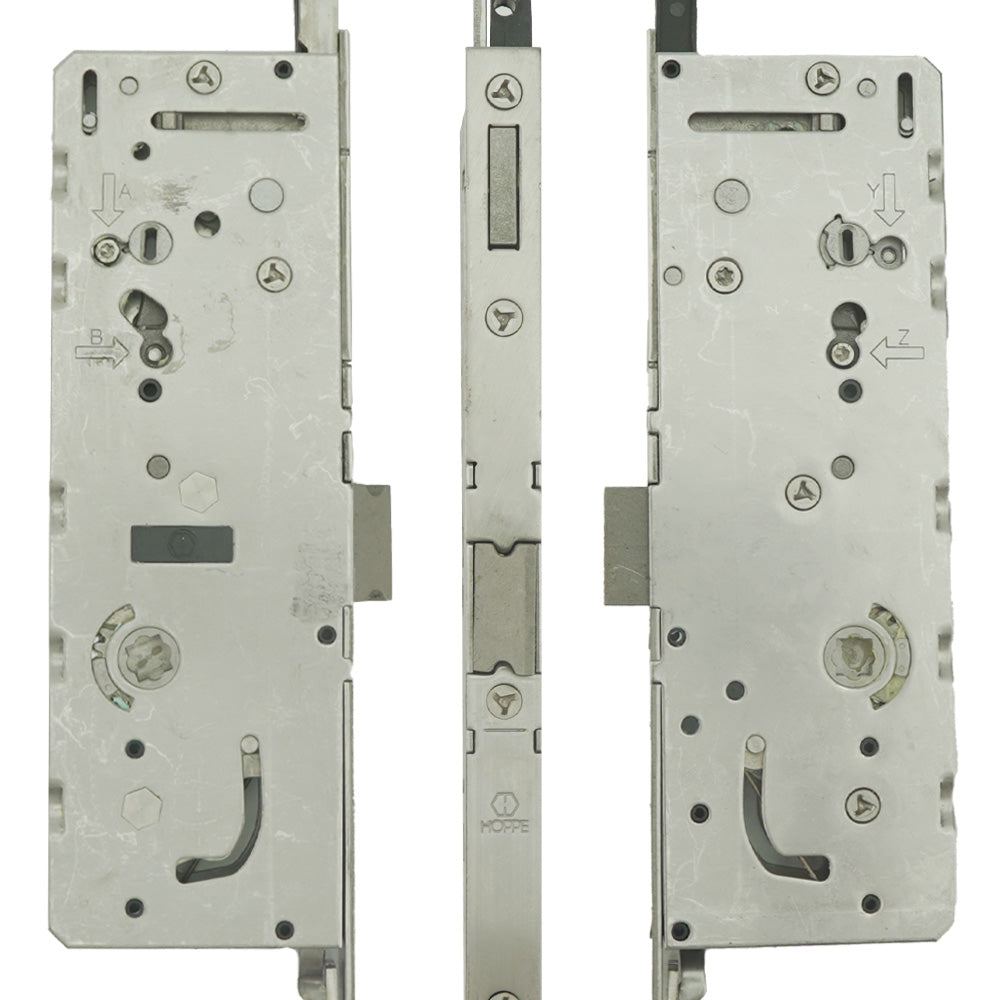

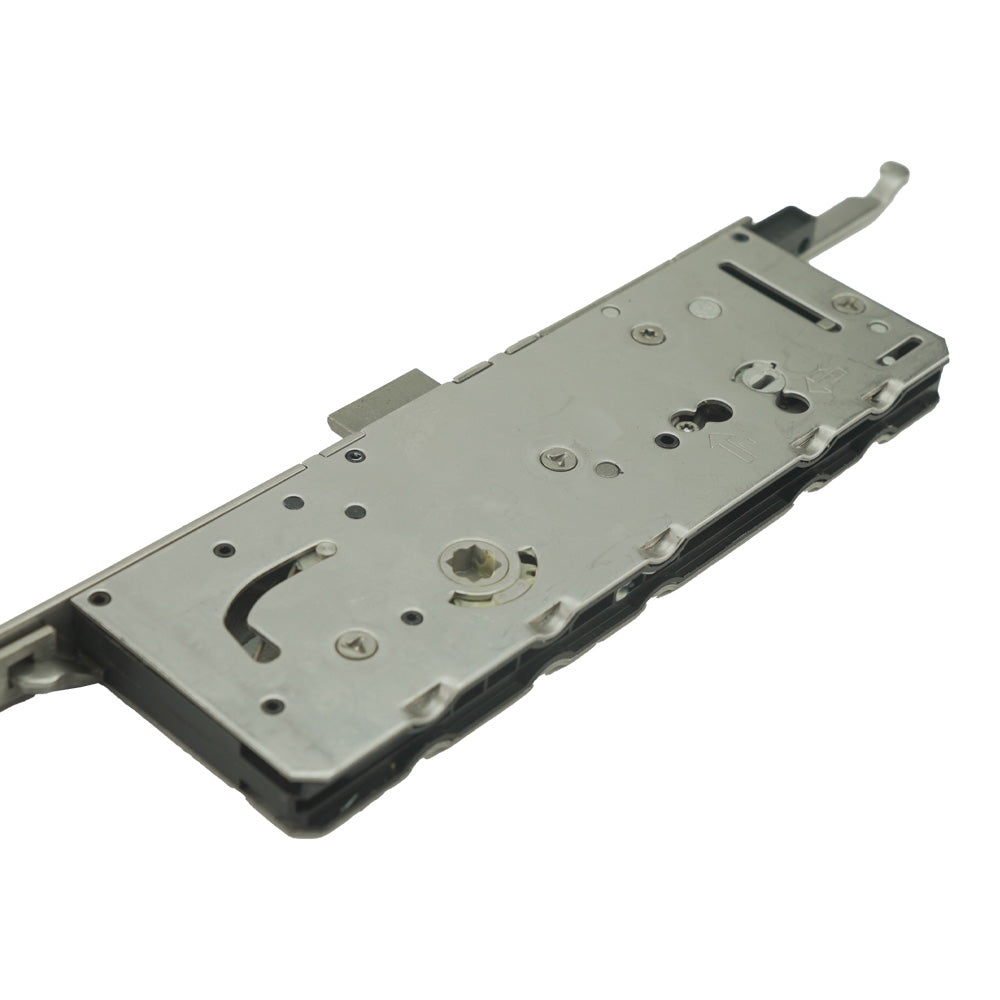

Hoppe Series: HLS 7 ( one motion retracts deadbolt with turn of handle)

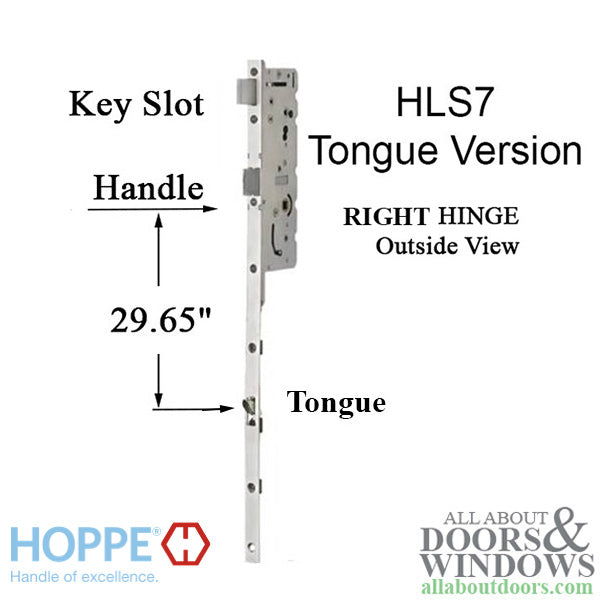

Hoppe Version: Tongue

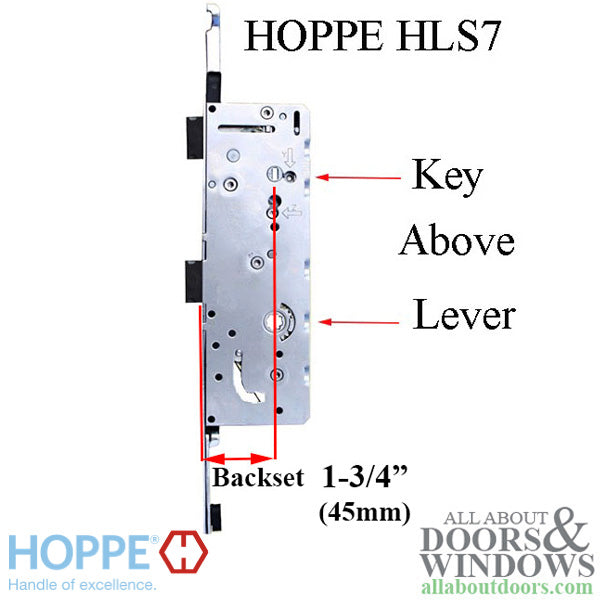

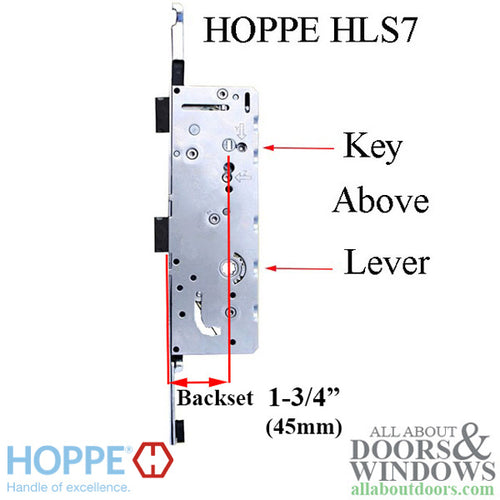

Backset: 1-3/4 inch ( 45mm) - Only one available
Handing: Right Hand
Spindle Hub Diameter: : 5/16 inch (8mm)
Spindle hub has a blocker and uses 1/2 spindles attached to handleset
Handle Height: 36 inch

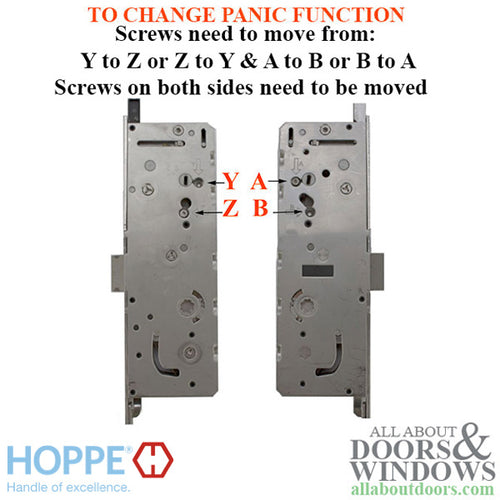

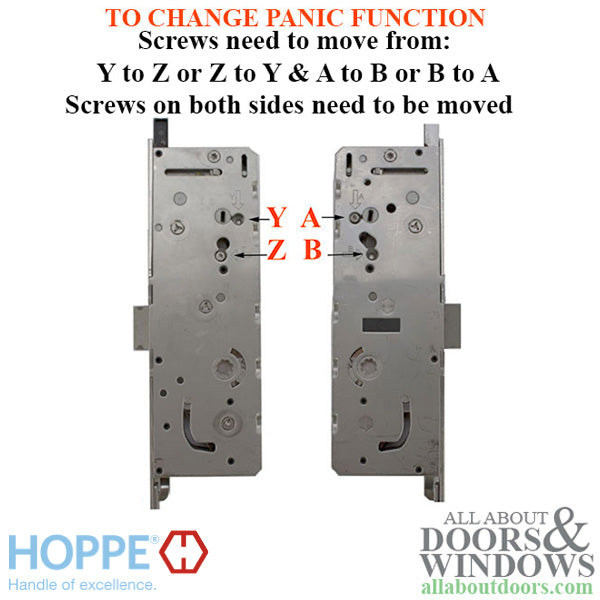

This MPL has a Panic release function on the inside
From inside to exit the locked door, push down on lever and the deadbolt and latch will retract.

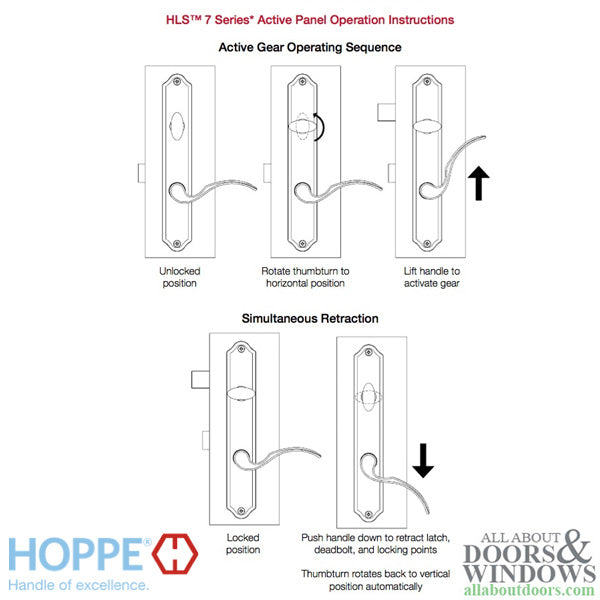

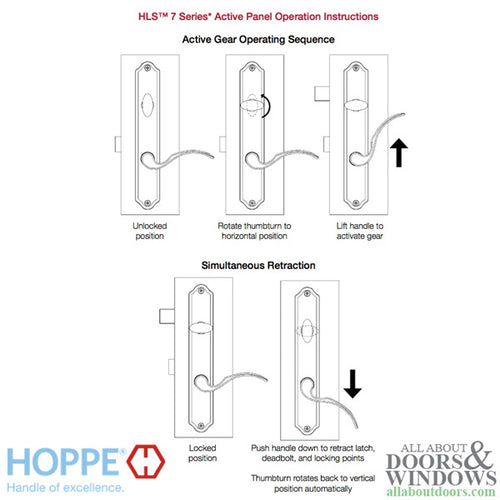

Operation of Lock
To Lock door
1. Turn thumb turn to horizontal position or key to locked position
2. Lift handle and deadbolt will extend ( outside is locked )

To Unlock door from Inside
1. Depress Lever,  latch and deadbolt will retract. Thumbturn rotates back to vertical position automatically

To Unlock door from Outside
1. Insert key and turn
2. Depress lever to open door

NOTE 1:
This is the bottom 1/2 of MP Lock system -  Top extension is determined by door height and Tongue Position

NOTE 2:
The “half-moon” slot next to the handle hub must have the nub in the 3 o’clock or 9 o’clock position (depending on the side of the gear box you’re on).  If it isn’t, the gear will not work.  The handle set, with spring assist, naturally moves this to the proper position when installed in the door.  When out of the door, we have to make sure it is lined up.
