HLS7 16mm Active Tongue-Shootbolt Gear, 45/92, Tongue at 24.41 Inch, 25 mm Shootbolt Throw, RH

Part Number:2716651 Price: $257.95

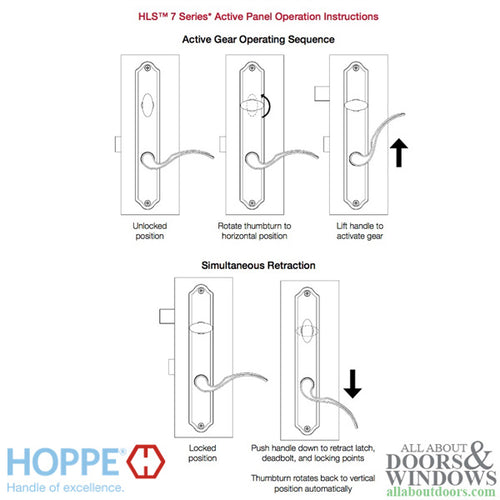

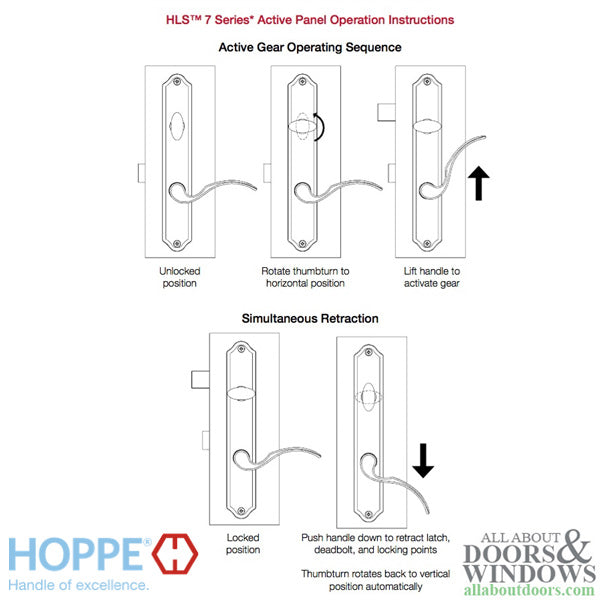

Hoppe HLS Series 7 (one motion retracts deadbolt with turn of handle)

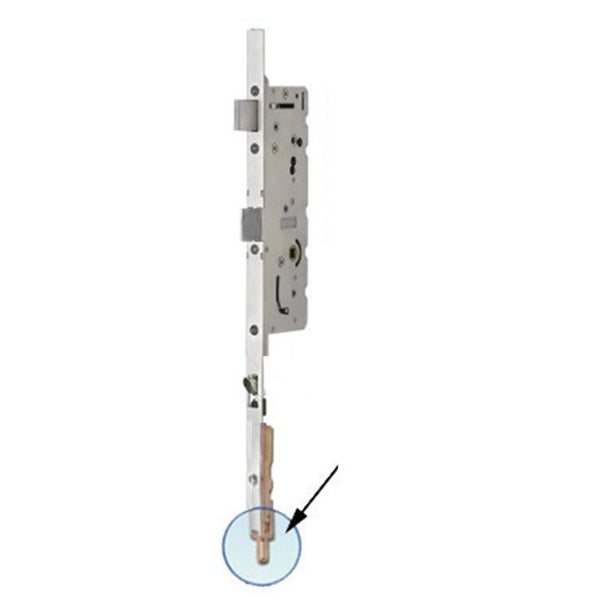

Active Bottom Gear for Tongue with Shootbolt
Handing: Right Hand

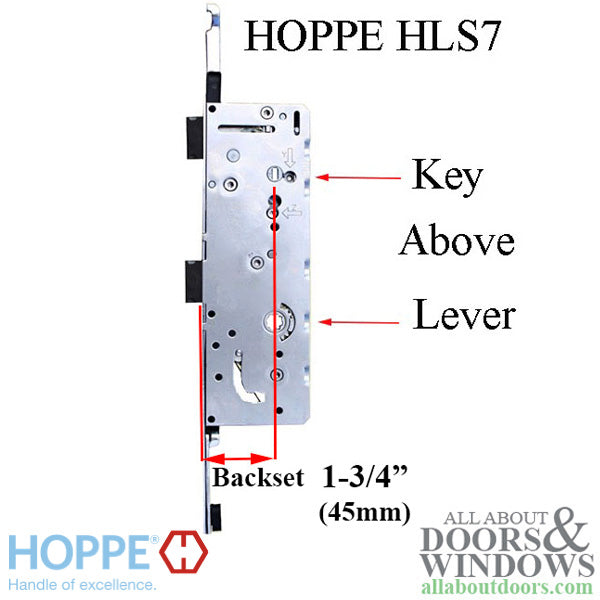

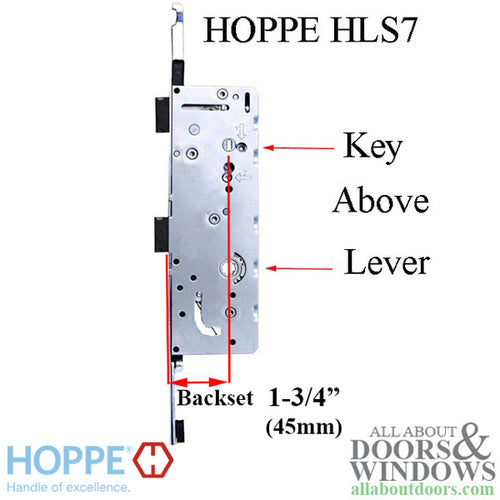

Backset: 1-3/4 inch (45mm )
Deadbolt Throw: 1 inch ( 25.4mm)
Handle Height(HH): 36 inches ( 914mm)

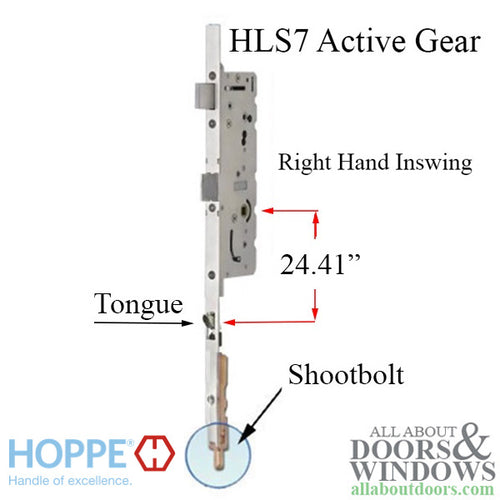

Bottom Tongue Position: 24.41 ( 620mm)
Maximum Cutoff: - Not Available
Number of Screws: 5

NOTE:
This is the bottom 1/2 of MP Lock system -  Top extension is determined by door height and Tongue Position
