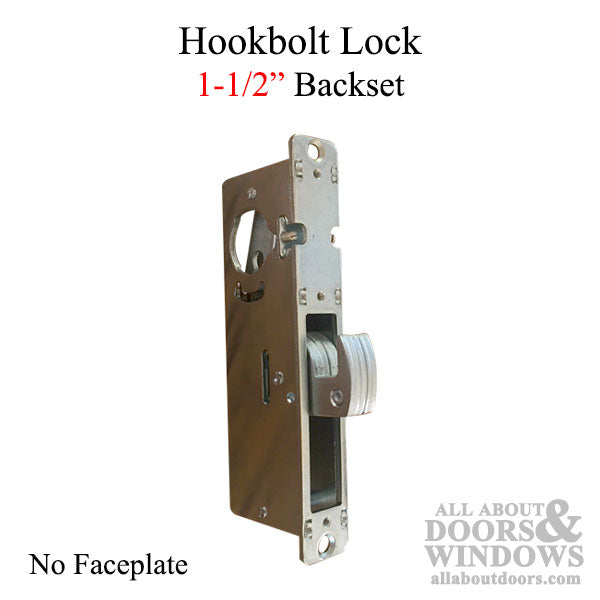

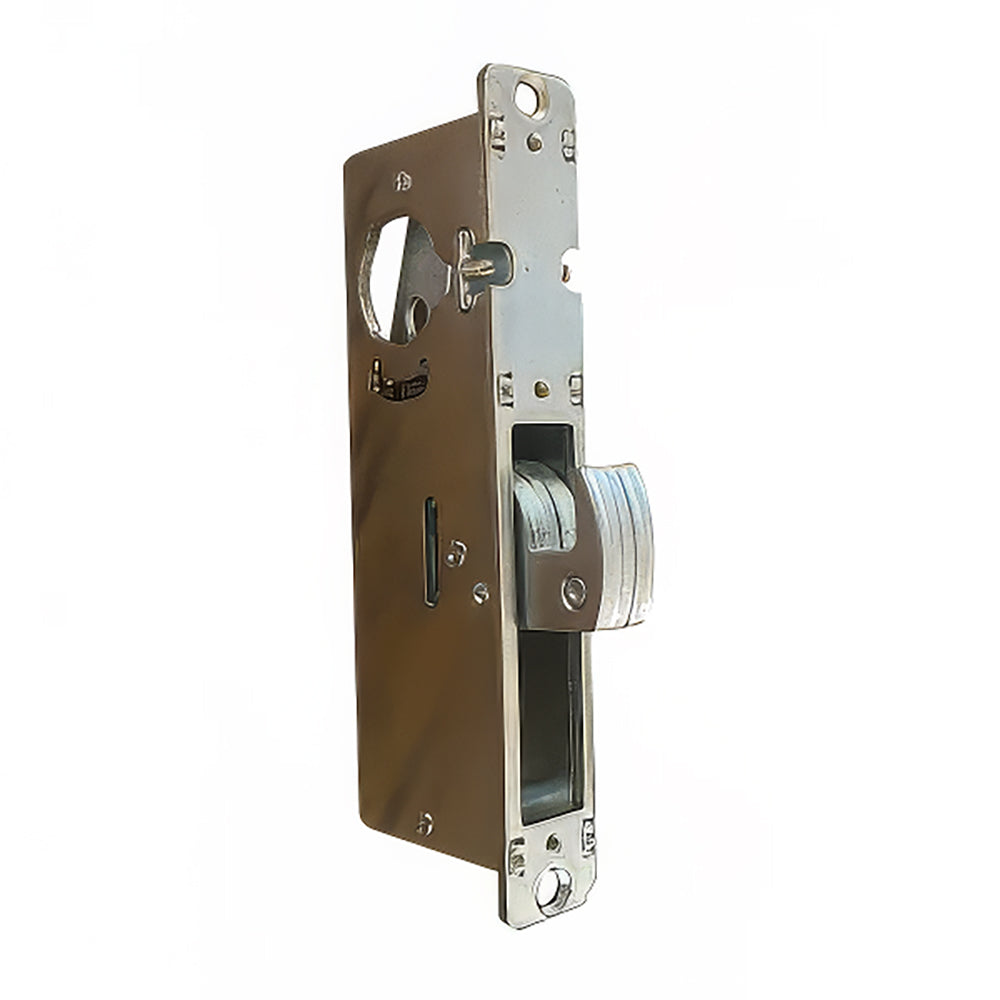

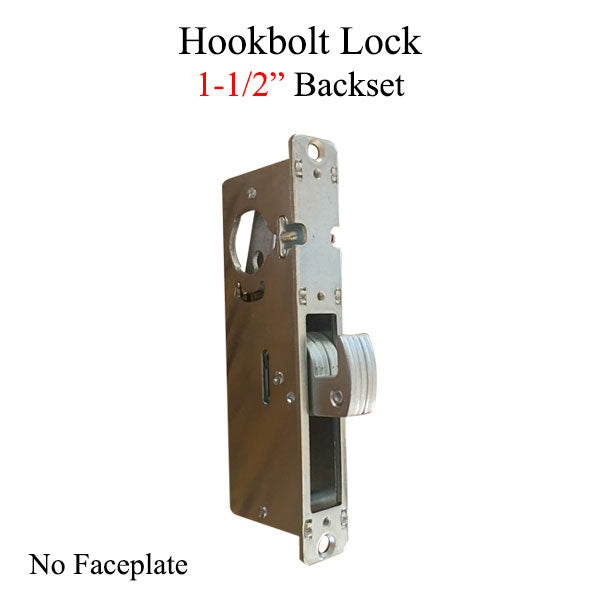

Hook bolt mortise lock for narrow stile sliding doors.
steel construction swing hook lock for commercial sliding storefront doors or hinged doors.
Specifications:
Lock Backset 1-1/2 inch
Hand: Non handed, easily reversible
Case Dimensions: 7/8 inch W x 6 inches L x Depth specific to backset
Material: Steel
Faceplate: NONE, No face plate, order separately if needed
Priced and sold each.
Note: Backset is measured from edge of lock face to center of cylinder hole
please check measurements carefully.
HOOKBOLT Optional Faceplates
380036 - Flat Faceplate, Hookbolt
380037 - Bevel LH Faceplate, Hookbolt
380038 - Bevel RH Faceplate, Hookbolt
380039 - Radius Large Hole, Hookbolt
380040 - Radius w/ weatherstrip Hookbolt
