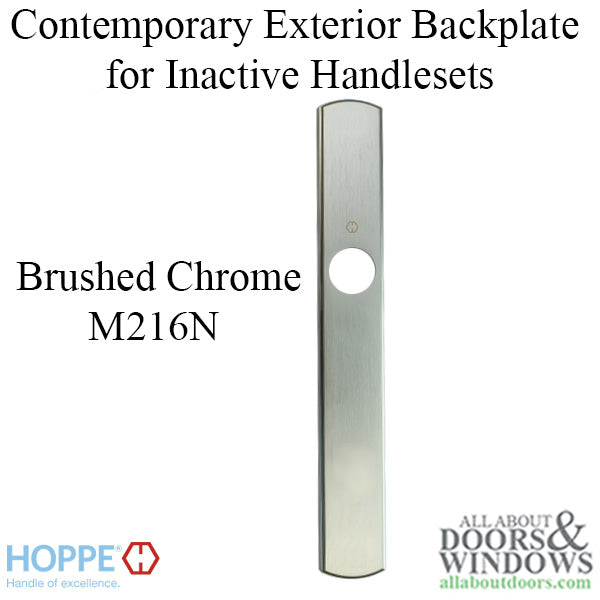

HOPPE Contemporary Exterior Backplate M216N for Inactive Handlesets - Brushed Chrome
Use the arrows or swipe left to view all images for this product
HOPPE Contemporary Exterior Backplate M216N for Inactive Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

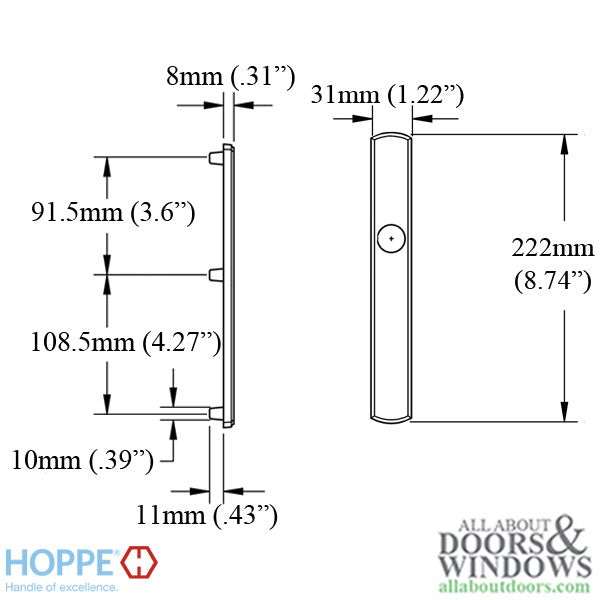

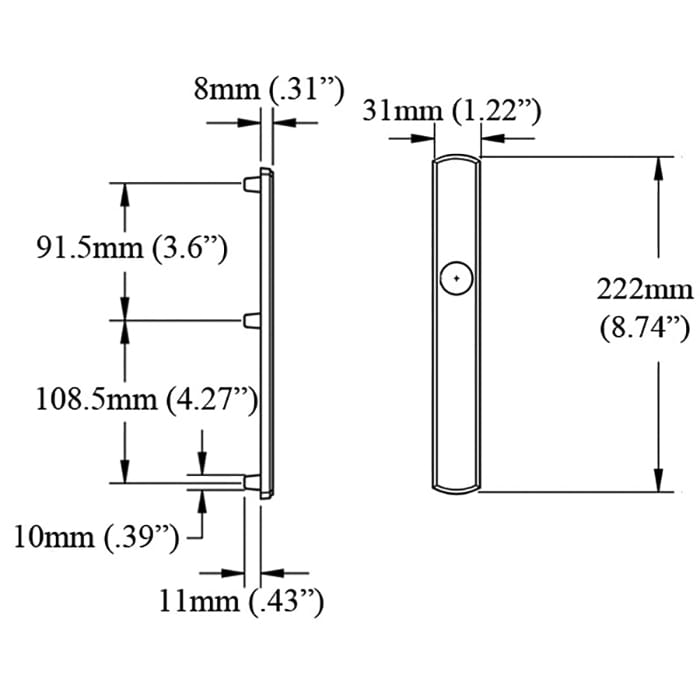

Height: 222mm (8.74 in.)
Width: 31mm (1.22 in.)
Thickness: 8mm (.31 in.)
Center of Top Screw Hole to Center of Middle Screw Hole: 91.5mm (3.6 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 108.5mm (4.27 in.)
Center of Top Screw Hole to Center of Bottom Screw Hole: 200m (7.87 in.)
Material: Solid Brass
Color: Brushed Chrome (F41-R)
Related Parts:
Contemporary Interior Backplate for Active and Inactive Handlesets in Brushed Chrome: 8750799
Contemporary Exterior Backplate for Active Handlesets in Brushed Chrome: 8750803
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 222mm (8.74 in.)
Width: 31mm (1.22 in.)
Thickness: 8mm (.31 in.)
Center of Top Screw Hole to Center of Middle Screw Hole: 91.5mm (3.6 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 108.5mm (4.27 in.)
Center of Top Screw Hole to Center of Bottom Screw Hole: 200m (7.87 in.)
Material: Solid Brass
Color: Brushed Chrome (F41-R)
Related Parts:
Contemporary Interior Backplate for Active and Inactive Handlesets in Brushed Chrome: 8750799
Contemporary Exterior Backplate for Active Handlesets in Brushed Chrome: 8750803
