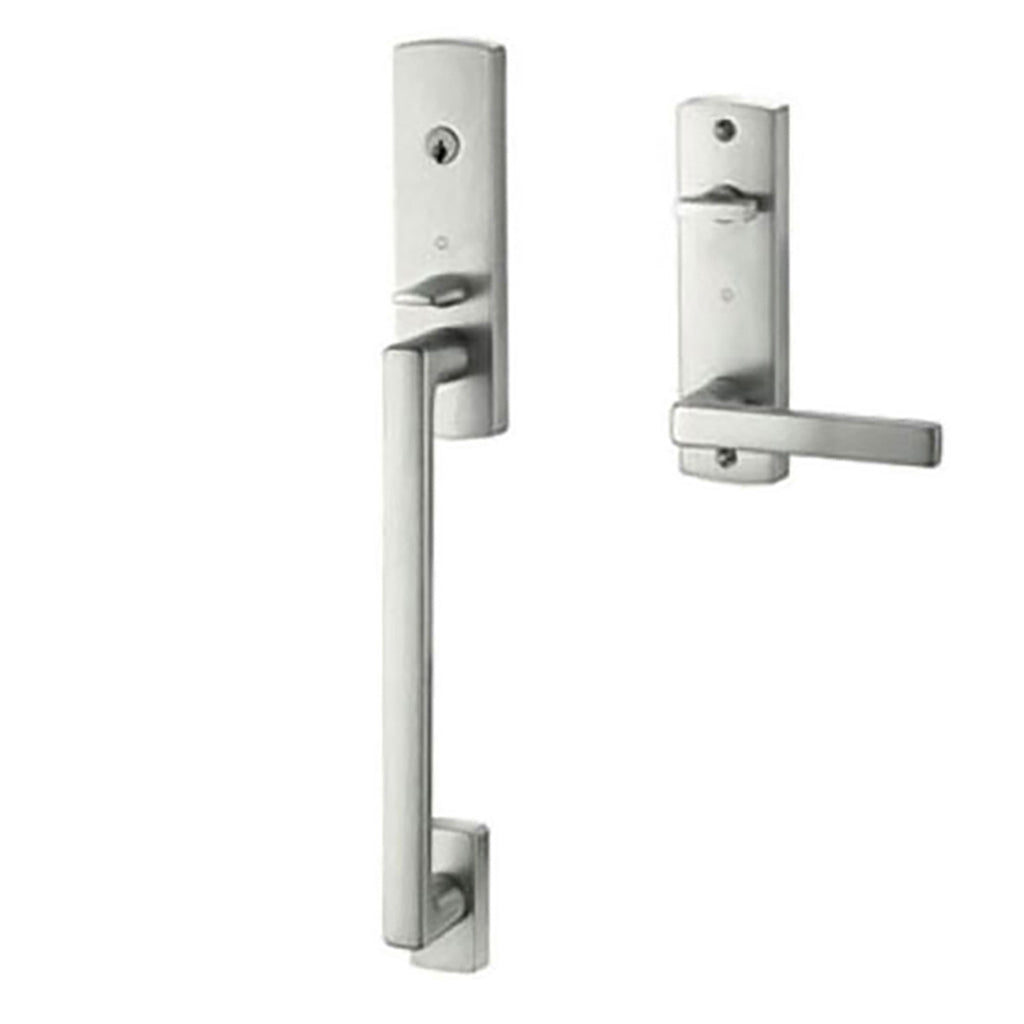

Hoppe HLS®2000 Series Dallas Handleset Trim.
This entrance handle only works with the HLS2000 multipoint lock (MPL).
Application: Entry Handle for Multipoint Lock with Centered Eurogroove
Door Thickness: 1-3/4 inch (45mm)
Style: Contemporary grip handle with interior Straight lever
Handed: No, fits left or right hand doors
Note: Brushed Chrome and Satin Nickel have Hoppe's Resista, no tarnish, finish

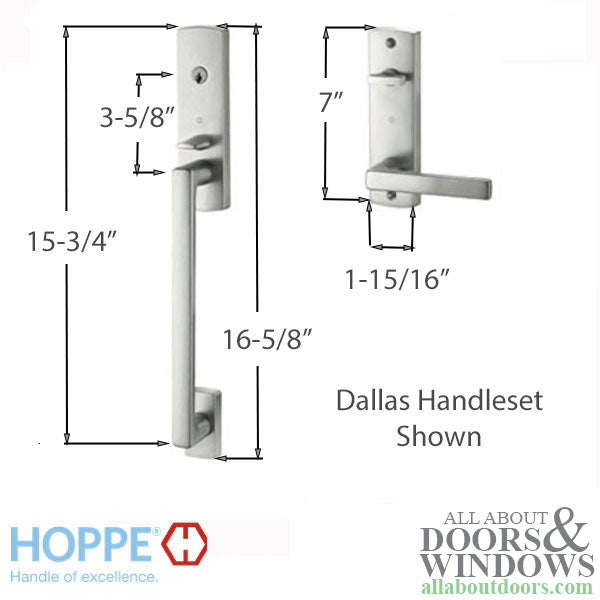

Handle to Cylinder PZ: 3-5/8 inch (92mm)
Width, Exterior: 1-15/16 inch
Overall Length, Exterior: 16-5/8 inch
Width Interior: 1-15/16 inch
Length Interior: 7 inch
Spindle Diameter: 5/16 (8mm) Square
Key Cylinder: Schlage SC1, 5 pin
Handle Tie Down: 9-13/16 inch

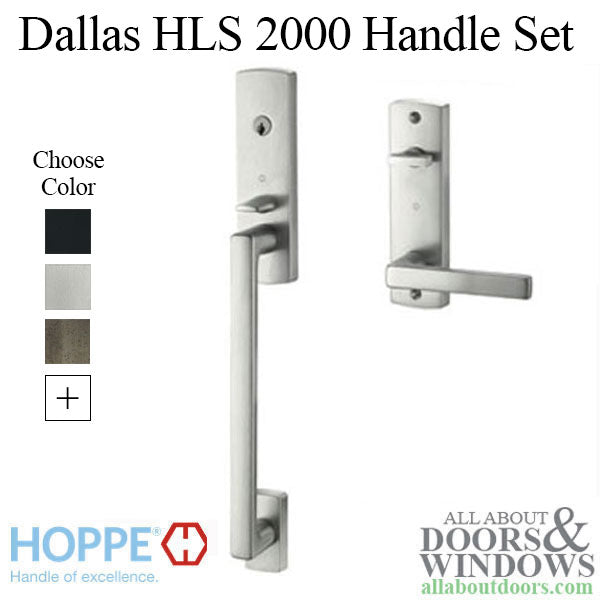

Available Colors / Finish:
Brushed Chrome
Satin Nickel
Flat/Matte Black
Rustic Umber (Oil Rubbed Bronze)
How to Operate:

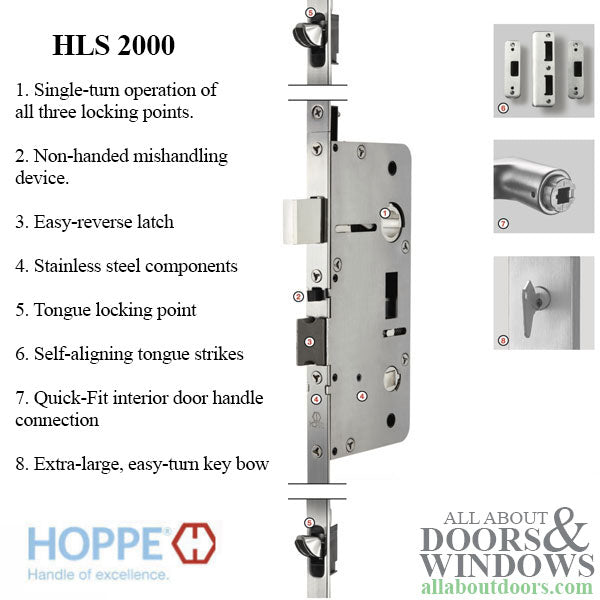

A single turn of the deadbolt or key extends and retracts all three locking points at the same time.
